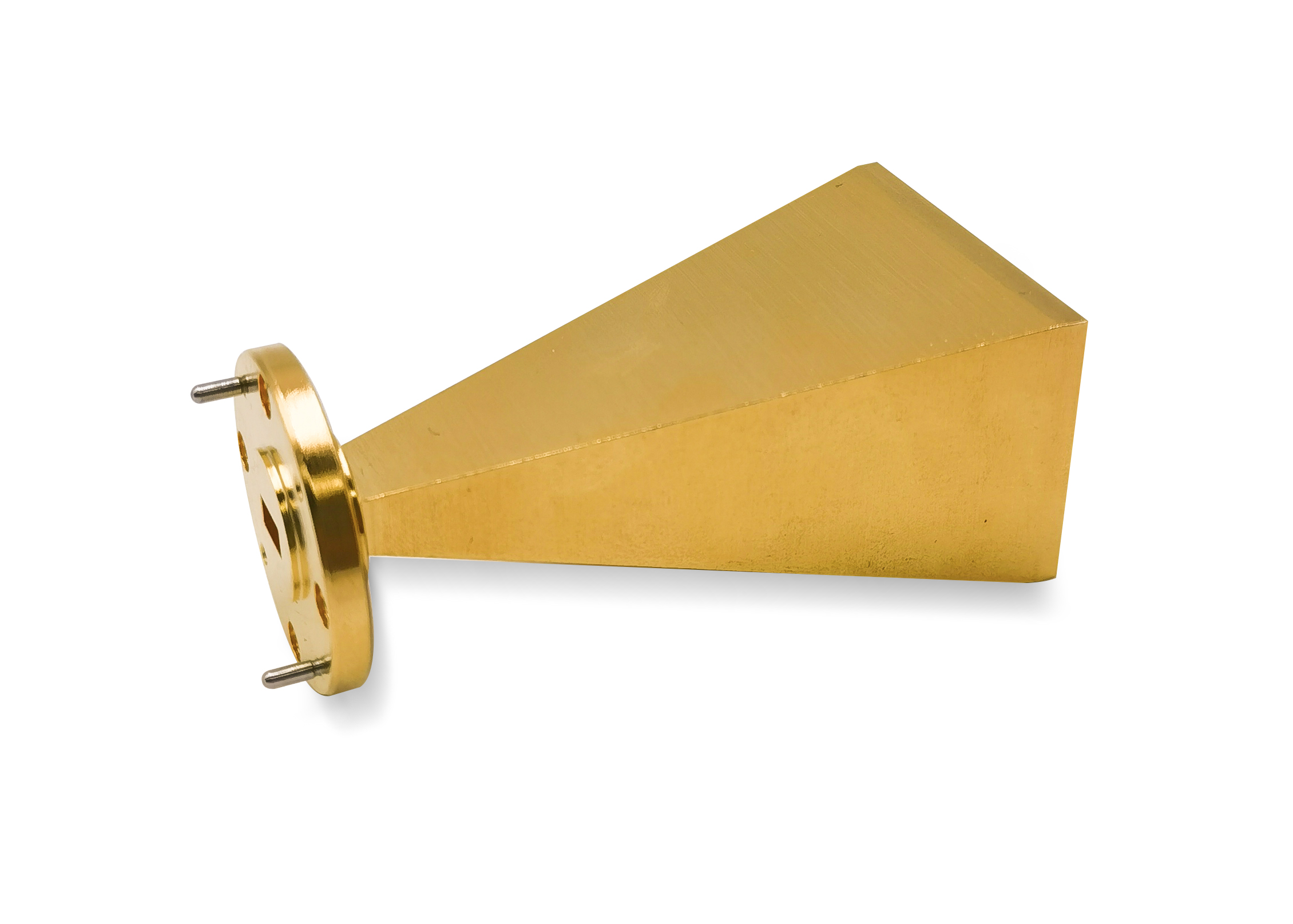

Standard Gain Horn Antenna-WG Port
Our Standard Gain Horn Antennas deliver stable and repeatable performance across a wide frequency range, making them ideal for antenna calibration, EMC testing, and system integration. With precise gain control, durable construction, and customizable flange or coaxial interfaces, they ensure consistent results in demanding RF environments.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | VSWR (Max) | Gain/dB (Avg) | E Plane 3dB Beamwidth (Typ) | H Plane 3dB Beamwidth (Typ) | Polarization | Interface Type |
| AO770-SGAH10 | 0.96-1.46 | 1.25 | 10 | 50° | 50° | Linear | UDR12 |
| AO650-SGAH10 | 1.13-1.73 | 1.25 | 10 | 50° | 50° | Linear | UDR14 |
| AO510-SGAH10 | 1.45-2.20 | 1.25 | 10 | 50° | 50° | Linear | UDR18 |
| AO430-SGAH10 | 1.72-2.61 | 1.25 | 10 | 50° | 50° | Linear | UDR22 |
| AO340-SGAH10 | 2.17-3.30 | 1.25 | 10 | 50° | 50° | Linear | UDR26 |
| AO284-SGAH10 | 2.60-3.95 | 1.25 | 10 | 50° | 50° | Linear | UDR32 |
| AO229-SGAH10 | 3.22-4.90 | 1.25 | 10 | 50° | 50° | Linear | UDR40 |
| AO187-SGAH10 | 3.94-5.99 | 1.25 | 10 | 50° | 50° | Linear | UDR48 |
| AO159-SGAH10 | 4.64-7.05 | 1.25 | 10 | 50° | 50° | Linear | UDR58 |
| AO137-SGAH10 | 5.38-8.17 | 1.25 | 10 | 50° | 50° | Linear | UDR70 |
| AO112-SGAH10 | 6.57-9.99 | 1.25 | 10 | 50° | 50° | Linear | UBR84 |
| AO90-SGAH10 | 8.20-12.5 | 1.25 | 10 | 50° | 50° | Linear | UBR100 |
| AO75-SGAH10 | 9.84-15.0 | 1.25 | 10 | 50° | 50° | Linear | UBR120 |
| AO62-SGAH10 | 11.9-18.0 | 1.25 | 10 | 50° | 50° | Linear | UBR140 |
| AO51-SGAH10 | 14.5-22.0 | 1.25 | 10 | 50° | 50° | Linear | UBR180 |
| AO42-SGAH10 | 17.6-26.7 | 1.25 | 10 | 50° | 50° | Linear | UBR220 |
| AO34-SGAH10 | 21.7-33.0 | 1.25 | 10 | 50° | 50° | Linear | UBR260 |
| AO28-SGAH10 | 26.5-40.0 | 1.25 | 10 | 50° | 50° | Linear | UBR320 |
| AO22-SGAH10 | 33.0-50.0 | 1.25 | 10 | 50° | 50° | Linear | UG-383/U |
| AO19-SGAH10 | 40.0-60.0 | 1.25 | 10 | 50° | 50° | Linear | UG383/UM |
| AO15-SGAH10 | 50.0-75.0 | 1.25 | 10 | 50° | 50° | Linear | UG385/U |
| AO12-SGAH10 | 60.0-90.0 | 1.25 | 10 | 50° | 50° | Linear | UG-387/U |
| AO10-SGAH10 | 75.0-110.0 | 1.25 | 10 | 50° | 50° | Linear | UG387/UM |
| AO770-SGAH15 | 0.96-1.46 | 1.25 | 15 | 30° | 30° | Linear | UDR12 |
| AO650-SGAH15 | 1.13-1.73 | 1.25 | 15 | 30° | 30° | Linear | UDR14 |
| AO510-SGAH15 | 1.45-2.20 | 1.25 | 15 | 30° | 30° | Linear | UDR18 |
| AO430-SGAH15 | 1.72-2.61 | 1.25 | 15 | 30° | 30° | Linear | UDR22 |
| AO340-SGAH15 | 2.17-3.30 | 1.25 | 15 | 30° | 30° | Linear | UDR26 |
| AO284-SGAH15 | 2.60-3.95 | 1.25 | 15 | 30° | 30° | Linear | UDR32 |
| AO229-SGAH15 | 3.22-4.90 | 1.25 | 15 | 30° | 30° | Linear | UDR40 |
| AO187-SGAH15 | 3.94-5.99 | 1.25 | 15 | 30° | 30° | Linear | UDR48 |
| AO159-SGAH15 | 4.64-7.05 | 1.25 | 15 | 30° | 30° | Linear | UDR58 |
| AO137-SGAH15 | 5.38-8.17 | 1.25 | 15 | 30° | 30° | Linear | UDR70 |
| AO112-SGAH15 | 6.57-9.99 | 1.25 | 15 | 30° | 30° | Linear | UBR84 |
| AO90-SGAH15 | 8.20-12.5 | 1.25 | 15 | 30° | 30° | Linear | UBR100 |
| AO75-SGAH15 | 9.84-15.0 | 1.25 | 15 | 30° | 30° | Linear | UBR120 |
| AO62-SGAH15 | 11.9-18.0 | 1.25 | 15 | 30° | 30° | Linear | UBR140 |
| AO51-SGAH15 | 14.5-22.0 | 1.25 | 15 | 30° | 30° | Linear | UBR180 |
| AO42-SGAH15 | 17.6-26.7 | 1.25 | 15 | 30° | 30° | Linear | UBR220 |
| AO34-SGAH15 | 21.7-33.0 | 1.25 | 15 | 30° | 30° | Linear | UBR260 |
| AO28-SGAH15 | 26.5-40.0 | 1.25 | 15 | 30° | 30° | Linear | UBR320 |
| AO22-SGAH15 | 33.0-50.0 | 1.25 | 15 | 30° | 30° | Linear | UG-383/U |
| AO19-SGAH15 | 40.0-60.0 | 1.25 | 15 | 30° | 30° | Linear | UG383/UM |
| AO15-SGAH15 | 50.0-75.0 | 1.25 | 15 | 30° | 30° | Linear | UG385/U |
| AO12-SGAH15 | 60.0-90.0 | 1.25 | 15 | 30° | 30° | Linear | UG-387/U |
| AO10-SGAH15 | 75.0-110.0 | 1.25 | 15 | 30° | 30° | Linear | UG387/UM |
| AO284-SGAH20 | 2.60-3.95 | 1.25 | 20 | 18° | 18° | Linear | UDR32 |
| AO229-SGAH20 | 3.22-4.90 | 1.25 | 20 | 18° | 18° | Linear | UDR40 |
| AO187-SGAH20 | 3.94-5.99 | 1.25 | 20 | 18° | 18° | Linear | UDR48 |
| AO159-SGAH20 | 4.64-7.05 | 1.25 | 20 | 18° | 18° | Linear | UDR58 |
| AO137-SGAH20 | 5.38-8.17 | 1.25 | 20 | 18° | 18° | Linear | UDR70 |
| AO112-SGAH20 | 6.57-9.99 | 1.25 | 20 | 18° | 18° | Linear | UBR84 |
| AO90-SGAH20 | 8.20-12.5 | 1.25 | 20 | 18° | 18° | Linear | UBR100 |
| AO75-SGAH20 | 9.84-15.0 | 1.25 | 20 | 18° | 18° | Linear | UBR120 |
| AO62-SGAH20 | 11.9-18.0 | 1.25 | 20 | 18° | 18° | Linear | UBR140 |
| AO51-SGAH20 | 14.5-22.0 | 1.25 | 20 | 18° | 18° | Linear | UBR180 |
| AO42-SGAH20 | 17.6-26.7 | 1.25 | 20 | 18° | 18° | Linear | UBR220 |
| AO34-SGAH20 | 21.7-33.0 | 1.25 | 20 | 18° | 18° | Linear | UBR260 |
| AO28-SGAH20 | 26.5-40.0 | 1.25 | 20 | 18° | 18° | Linear | UBR320 |
| AO22-SGAH20 | 33.0-50.0 | 1.25 | 20 | 18° | 18° | Linear | UG-383/U |
| AO19-SGAH20 | 40.0-60.0 | 1.25 | 20 | 18° | 18° | Linear | UG383/UM |
| AO20-SGAH20 | 50.0-75.0 | 1.25 | 20 | 18° | 18° | Linear | UG385/U |
| AO12-SGAH20 | 60.0-90.0 | 1.25 | 20 | 18° | 18° | Linear | UG-387/U |
| AO10-SGAH20 | 75.0-110.0 | 1.25 | 20 | 18° | 18° | Linear | UG387/UM |
| AO8-SGAH20 | 92.2-140.0 | 1.25 | 20 | 18° | 18° | Linear | UG-383/UM |
| AO6-SGAH20 | 113.0-173.0 | 1.25 | 20 | 18° | 18° | Linear | UG-383/UM |
| AO5-SGAH20 | 145.0-220.0 | 1.25 | 20 | 18° | 18° | Linear | UG-383/UM |
| AO4-SGAH20 | 172.0-261.0 | 1.25 | 20 | 18° | 18° | Linear | UG-383/UM |
| AO3-SGAH20 | 217.0-330.0 | 1.25 | 20 | 18° | 18° | Linear | UG-383/UM |
| AO90-SGAH25 | 8.20-12.5 | 1.25 | 25 | 10° | 10° | Linear | UBR100 |
| AO75-SGAH25 | 9.84-15.0 | 1.25 | 25 | 10° | 10° | Linear | UBR120 |
| AO62-SGAH25 | 11.9-18.0 | 1.25 | 25 | 10° | 10° | Linear | UBR140 |
| AO51-SGAH25 | 14.5-22.0 | 1.25 | 25 | 10° | 10° | Linear | UBR180 |
| AO42-SGAH25 | 17.6-26.7 | 1.25 | 25 | 10° | 10° | Linear | UBR220 |
| AO34-SGAH25 | 21.7-33.0 | 1.25 | 25 | 10° | 10° | Linear | UBR260 |
| AO28-SGAH25 | 26.5-40.0 | 1.25 | 25 | 10° | 10° | Linear | UBR320 |
| AO22-SGAH25 | 33.0-50.0 | 1.25 | 25 | 10° | 10° | Linear | UG-383/U |
| AO19-SGAH25 | 40.0-60.0 | 1.25 | 25 | 10° | 10° | Linear | UG383/UM |
| AO25-SGAH25 | 50.0-75.0 | 1.25 | 25 | 10° | 10° | Linear | UG385/U |
| AO12-SGAH25 | 60.0-90.0 | 1.25 | 25 | 10° | 10° | Linear | UG-387/U |
| AO10-SGAH25 | 75.0-110.0 | 1.25 | 25 | 10° | 10° | Linear | UG387/UM |
| AO8-SGAH25 | 92.2-140.0 | 1.25 | 25 | 10° | 10° | Linear | UG-383/UM |
| AO6-SGAH25 | 113.0-173.0 | 1.25 | 25 | 10° | 10° | Linear | UG-383/UM |
| AO5-SGAH25 | 145.0-220.0 | 1.25 | 25 | 10° | 10° | Linear | UG-383/UM |
| AO4-SGAH25 | 172.0-261.0 | 1.25 | 25 | 10° | 10° | Linear | UG-383/UM |
| AO3-SGAH25 | 217.0-330.0 | 1.25 | 25 | 10° | 10° | Linear | UG-383/UM |
