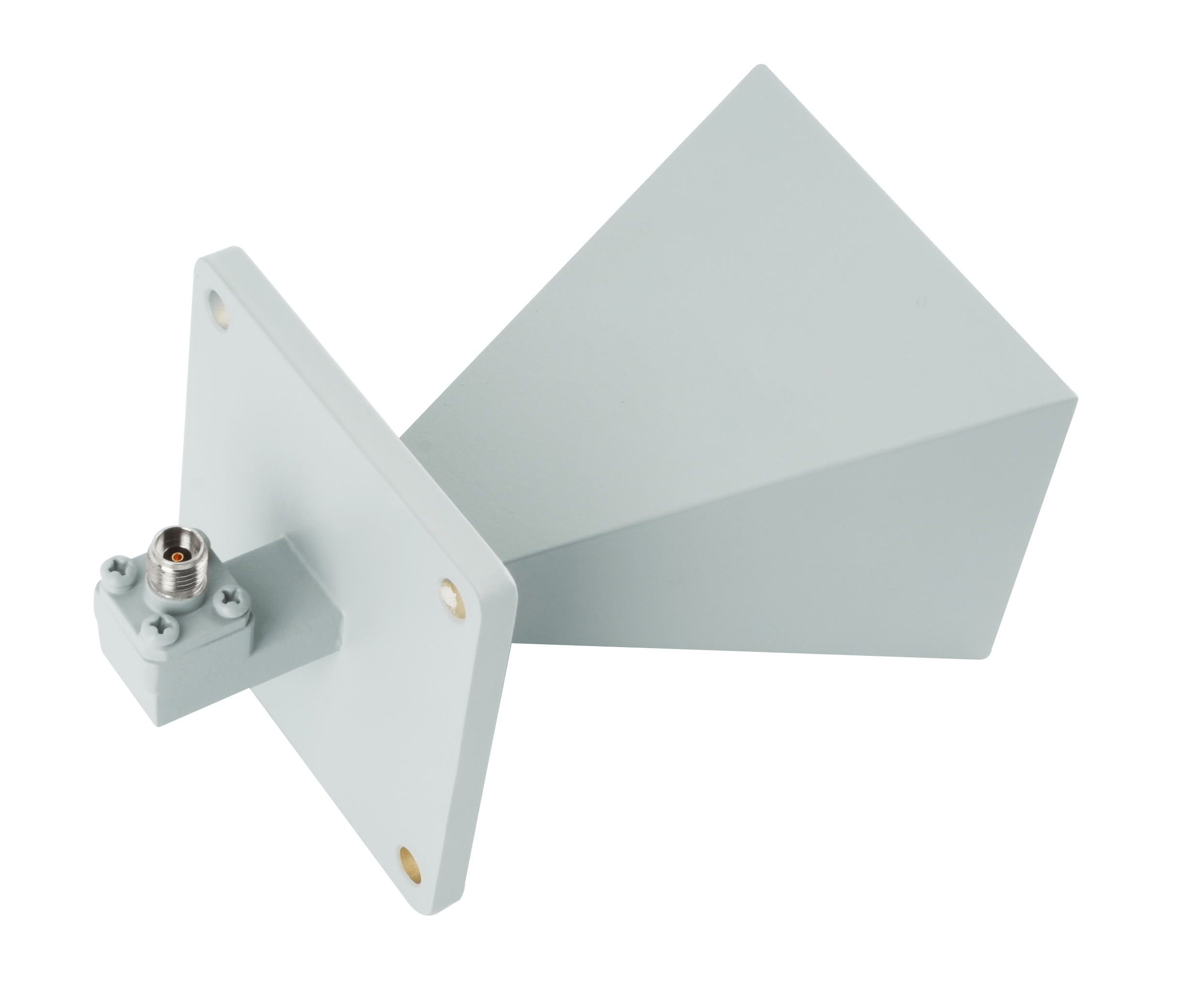

Standard Gain Horn Antenna-Built-in Connector
Our Standard Gain Horn Antennas deliver stable and repeatable performance across a wide frequency range, making them ideal for antenna calibration, EMC testing, and system integration. With precise gain control, durable construction, and customizable flange or coaxial interfaces, they ensure consistent results in demanding RF environments.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | VSWR (Max) | Gain/dB (Avg) | E Plane 3dB Beamwidth (Typ) | H Plane 3dB Beamwidth (Typ) | Polarization | Interface Type |
| AO2300-SGAH10NK | 0.32-0.49 | 1.50 | 10 | 50° | 50° | Linear | N Female |
| AO2100-SGAH10NK | 0.35-0.53 | 1.50 | 10 | 50° | 50° | Linear | N Female |
| AO1800-SGAH10NK | 0.41-0.62 | 1.50 | 10 | 50° | 50° | Linear | N Female |
| AO1500-SGAH10NK | 0.49-0.75 | 1.50 | 10 | 50° | 50° | Linear | N Female |
| AO1150-SGAH10NK | 0.64-0.98 | 1.50 | 10 | 50° | 50° | Linear | N Female |
| AO975-SGAH10NK | 0.75-1.15 | 1.50 | 10 | 50° | 50° | Linear | N Female |
| AO770-SGAH10NK | 0.96-1.46 | 1.50 | 10 | 50° | 50° | Linear | N Female |
| AO650-SGAH10NK | 1.13-1.73 | 1.50 | 10 | 50° | 50° | Linear | N Female |
| AO510-SGAH10NK | 1.45-2.20 | 1.50 | 10 | 50° | 50° | Linear | N Female |
| AO430-SGAH10NK | 1.72-2.61 | 1.50 | 10 | 50° | 50° | Linear | N Female |
| AO340-SGAH10NK | 2.17-3.30 | 1.50 | 10 | 50° | 50° | Linear | N Female |
| AO284-SGAH10NK | 2.60-3.95 | 1.50 | 10 | 50° | 50° | Linear | N Female |
| AO229-SGAH10NK | 3.22-4.90 | 1.50 | 10 | 50° | 50° | Linear | N Female |
| AO187-SGAH10NK | 3.94-5.99 | 1.50 | 10 | 50° | 50° | Linear | N Female |
| AO159-SGAH10NK | 4.64-7.05 | 1.50 | 10 | 50° | 50° | Linear | N Female |
| AO137-SGAH10NK | 5.38-8.17 | 1.50 | 10 | 50° | 50° | Linear | N Female |
| AO112-SGAH10NK | 6.57-9.99 | 1.50 | 10 | 50° | 50° | Linear | N Female |
| AO90-SGAH10NK | 8.20-12.5 | 1.50 | 10 | 50° | 50° | Linear | N Female |
| AO75-SGAH10NK | 9.84-15.0 | 1.50 | 10 | 50° | 50° | Linear | N Female |
| AO62-SGAH10SK | 11.9-18.0 | 1.50 | 10 | 50° | 50° | Linear | SMA Female |
| AO51-SGAH10SK | 14.5-22.0 | 1.50 | 10 | 50° | 50° | Linear | SMA Female |
| AO42-SGAH102.92K | 17.6-26.7 | 1.50 | 10 | 50° | 50° | Linear | 2.92mm Female |
| AO34-SGAH102.92K | 21.7-33.0 | 1.50 | 10 | 50° | 50° | Linear | 2.92mm Female |
| AO28-SGAH102.92K | 26.5-40.0 | 1.50 | 10 | 50° | 50° | Linear | 2.92mm Female |
| AO975-SGAH15NK | 0.75-1.15 | 1.50 | 15 | 30° | 30° | Linear | N Female |
| AO770-SGAH15NK | 0.96-1.46 | 1.50 | 15 | 30° | 30° | Linear | N Female |
| AO650-SGAH15NK | 1.13-1.73 | 1.50 | 15 | 30° | 30° | Linear | N Female |
| AO510-SGAH15NK | 1.45-2.20 | 1.50 | 15 | 30° | 30° | Linear | N Female |
| AO430-SGAH15NK | 1.72-2.61 | 1.50 | 15 | 30° | 30° | Linear | N Female |
| AO340-SGAH15NK | 2.17-3.30 | 1.50 | 15 | 30° | 30° | Linear | N Female |
| AO284-SGAH15NK | 2.60-3.95 | 1.50 | 15 | 30° | 30° | Linear | N Female |
| AO229-SGAH15NK | 3.22-4.90 | 1.50 | 15 | 30° | 30° | Linear | N Female |
| AO187-SGAH15NK | 3.94-5.99 | 1.50 | 15 | 30° | 30° | Linear | N Female |
| AO159-SGAH15NK | 4.64-7.05 | 1.50 | 15 | 30° | 30° | Linear | N Female |
| AO137-SGAH15NK | 5.38-8.17 | 1.50 | 15 | 30° | 30° | Linear | N Female |
| AO112-SGAH15NK | 6.57-9.99 | 1.50 | 15 | 30° | 30° | Linear | N Female |
| AO90-SGAH15NK | 8.20-12.5 | 1.50 | 15 | 30° | 30° | Linear | N Female |
| AO75-SGAH15NK | 9.84-15.0 | 1.50 | 15 | 30° | 30° | Linear | N Female |
| AO62-SGAH15SK | 11.9-18.0 | 1.50 | 15 | 30° | 30° | Linear | SMA Female |
| AO51-SGAH15SK | 14.5-22.0 | 1.50 | 15 | 30° | 30° | Linear | SMA Female |
| AO42-SGAH152.92K | 17.6-26.7 | 1.50 | 15 | 30° | 30° | Linear | 2.92mm Female |
| AO34-SGAH152.92K | 21.7-33.0 | 1.50 | 15 | 30° | 30° | Linear | 2.92mm Female |
| AO28-SGAH152.92K | 26.5-40.0 | 1.50 | 15 | 30° | 30° | Linear | 2.92mm Female |
| AO284-SGAH20NK | 2.60-3.95 | 1.50 | 20 | 18° | 18° | Linear | N Female |
| AO229-SGAH20NK | 3.22-4.90 | 1.50 | 20 | 18° | 18° | Linear | N Female |
| AO187-SGAH20NK | 3.94-5.99 | 1.50 | 20 | 18° | 18° | Linear | N Female |
| AO159-SGAH20NK | 4.64-7.05 | 1.50 | 20 | 18° | 18° | Linear | N Female |
| AO137-SGAH20NK | 5.38-8.17 | 1.50 | 20 | 18° | 18° | Linear | N Female |
| AO112-SGAH20NK | 6.57-9.99 | 1.50 | 20 | 18° | 18° | Linear | N Female |
| AO90-SGAH20NK | 8.20-12.5 | 1.50 | 20 | 18° | 18° | Linear | N Female |
| AO75-SGAH20NK | 9.84-15.0 | 1.50 | 20 | 18° | 18° | Linear | N Female |
| AO62-SGAH20SK | 11.9-18.0 | 1.50 | 20 | 18° | 18° | Linear | SMA Female |
| AO51-SGAH20SK | 14.5-22.0 | 1.50 | 20 | 18° | 18° | Linear | SMA Female |
| AO42-SGAH202.92K | 17.6-26.7 | 1.50 | 20 | 18° | 18° | Linear | 2.92mm Female |
| AO34-SGAH202.92K | 21.7-33.0 | 1.50 | 20 | 18° | 18° | Linear | 2.92mm Female |
| AO28-SGAH202.92K | 26.5-40.0 | 1.50 | 20 | 18° | 18° | Linear | 2.92mm Female |
| AO90-SGAH25NK | 8.20-12.5 | 1.50 | 25 | 10° | 10° | Linear | N Female |
| AO75-SGAH25NK | 9.84-15.0 | 1.50 | 25 | 10° | 10° | Linear | N Female |
| AO62-SGAH25SK | 11.9-18.0 | 1.50 | 25 | 10° | 10° | Linear | SMA Female |
| AO51-SGAH25SK | 14.5-22.0 | 1.50 | 25 | 10° | 10° | Linear | SMA Female |
| AO42-SGAH252.92K | 17.6-26.7 | 1.50 | 25 | 10° | 10° | Linear | 2.92mm Female |
| AO34-SGAH252.92K | 21.7-33.0 | 1.50 | 25 | 10° | 10° | Linear | 2.92mm Female |
| AO28-SGAH252.92K | 26.5-40.0 | 1.50 | 25 | 10° | 10° | Linear | 2.92mm Female |
