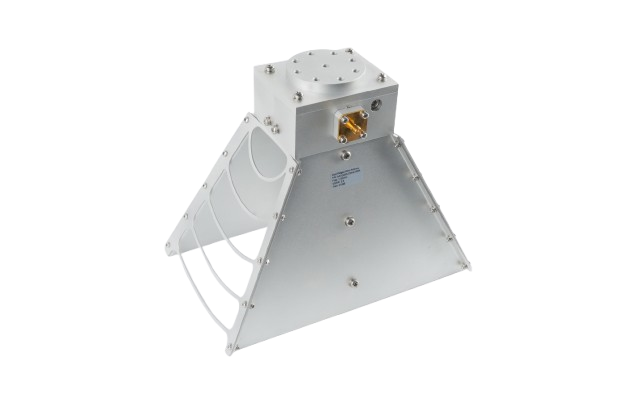

Double-Ridged Horn Antenna

Double-Ridged Horn Antenna features a wide bandwidth and stable radiation pattern, enabling excellent performance across broad frequency ranges. With robust design and customizable options, it is ideal for applications in EMC testing, radar, and communication systems, providing customers with reliable and high-quality antenna solutions.

Description Package Information Inquiry

Part No	Frequency/GHz	VSWR (Max)	Gain/dB (Avg)	E Plane 3dB Beamwidth	H Plane 3dB Beamwidth	Polarization	Interface Type
AO0.1G1G-DRHA8NK	0.1-1	2.50	8	30°~80°	30°~80°	Linear	N Female
AO0.2G2G-DRHA8NK	0.2-2	2.50	8	10°~65°	10°~65°	Linear	N Female
AO0.6G6G-DRHA10NK	0.6-6	2.50	10	10°~80°	10°~80°	Linear	N Female
AO0.8G4G-DRHA7NK	0.8-4	2.50	7	35°~65°	35°~65°	Linear	N Female
AO0.8G25G-DRHA10SK	0.8-25	2.50	10	8.5°~110°	8.5°~85°	Linear	SMA Female
AO1G6G-DRHA10NK	1-6	2.50	10	20°~90°	20°~90°	Linear	N Female
AO1G18G-DRHA10NK	1-18	2.00	10	30°~80°	30°~80°	Linear	N Female
AO1G18G-DRHA10SK	1-18	2.00	10	30°~80°	30°~80°	Linear	SMA Female
AO1G20G-DRHA10SK	1-20	2.00	10	11°~80°	11°~80°	Linear	SMA Female
AO2G18G-DRHA10SK	2-18	2.50	17	20°~50°	20°~50°	Linear	SMA Female
AO6G18G-DRHA10SK	6-18	2.50	10	30°~55°	30°~55°	Linear	SMA Female
AO8G40G-DRHA152.92K	8-40	2.50	15	10°~30°	10°~30°	Linear	2.92mm Female
AO18G40G-DRHA162.92K	18-40	2.50	16	10°~20°	10°~20°	Linear	2.92mm Female
