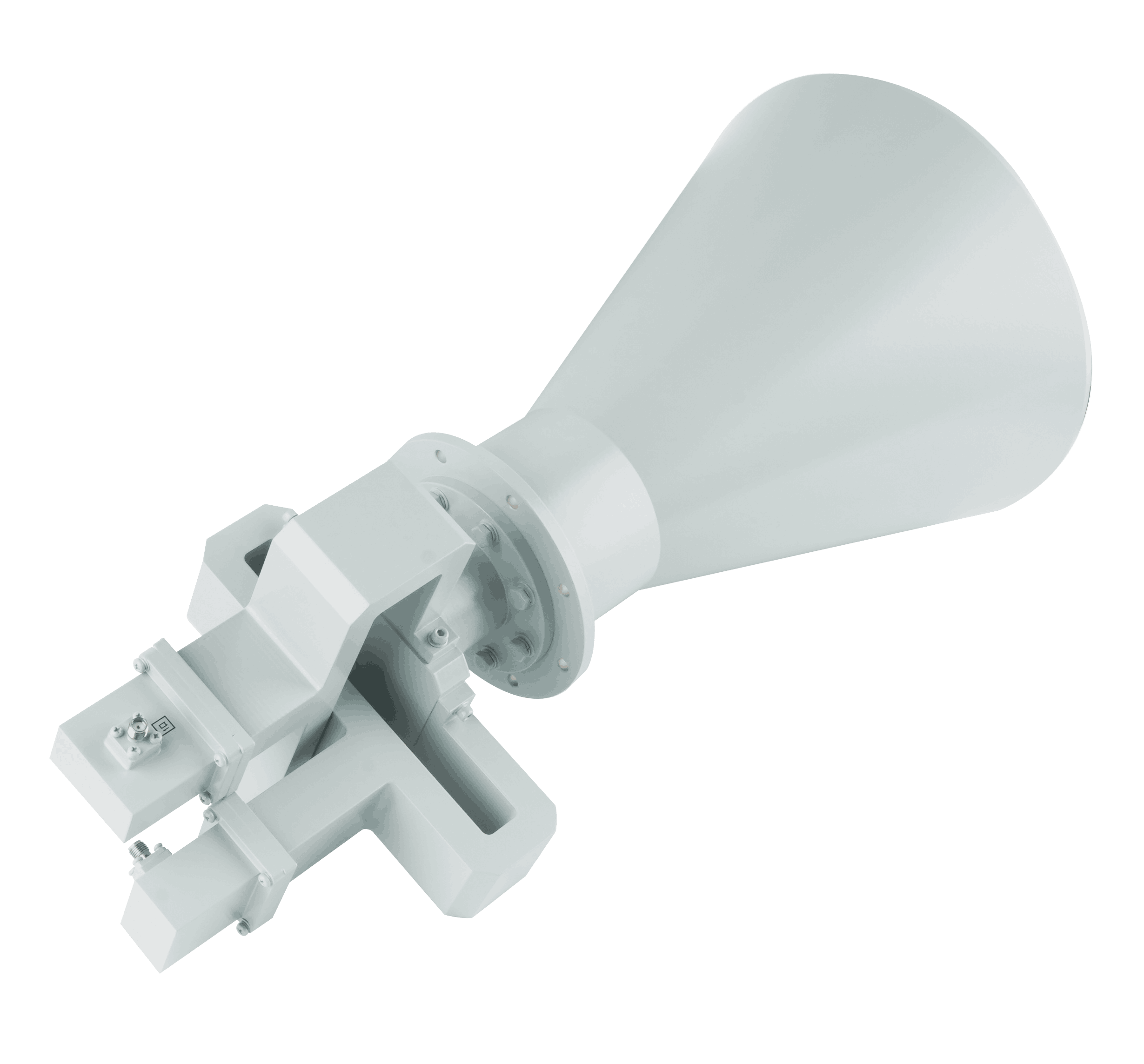

Dual Polarization Horn Antenna

Dual Polarization Horn Antenna supports simultaneous transmission and reception of two orthogonal polarizations, enhancing signal capacity and reducing interference. Designed for high gain and wide bandwidth, it is customizable to meet various radar, communication, and aerospace applications, offering customers versatile and reliable antenna performance.

Description Package Information Inquiry

Part No	Frequency/GHz	VSWR (Max)	Gain/dB (Avg)	Cross Polarization/dB (Min)	Polarization	Interface Type
AO0.8G4G-DPHA6NK	0.8-4	2.50	6	20	Dual Linear	N Female
AO1G4G-DPHA6NK	1-4	2.50	6	20	Dual Linear	N Female
AO1G18G-DPHA10NK	1-18	2.50	10	20	Dual Linear	N Female
AO2G18G-DPHA6SK	2-18	2.50	6	20	Dual Linear	SMA Female
AO6G24.5G-DPHA10SK	6-24.5	2.50	10	20	Dual Linear	SMA Female
AO18G40G-DPHA162.92K	18-40	2.50	16	20	Dual Linear	2.92mm Female
AO26G40G-DPHA152.92K	26-40	2.50	18	20	Dual Linear	2.92mm Female
