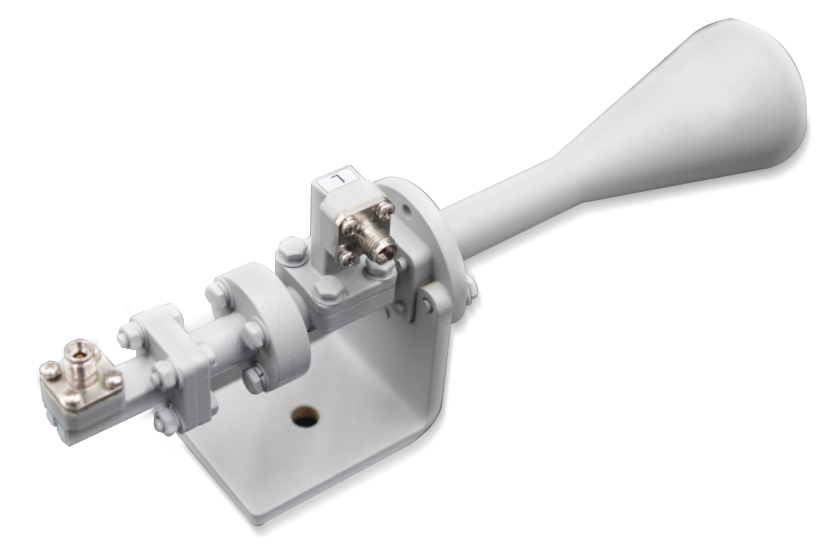

Dual Circular Polarization Horn Antenna
Dual Circular Polarization Horn Antenna delivers reliable performance with the ability to transmit and receive both left- and right-hand circularly polarized signals, enhancing communication flexibility. Designed for high gain and wide bandwidth, it is customizable to meet diverse application needs in radar, satellite, and aerospace systems, providing customers with efficient and versatile antenna solutions.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | VSWR (Max) | Gain/dB (Avg) | Axial Ratio/dB (Max) | Cross Polarization/dB (Min) | Polarization | Interface Type |
| AO0.5G1G-DCPHA7NK | 0.5-1 | 2.50 | 7 | 4 | 8 | Dual Circular | N Female |
| AO1G2G-DCPHA10NK | 1-2 | 2.50 | 10 | 3 | 15 | Dual Circular | N Female |
| AO1G4G-DCPHA7NK | 1-4 | 2.50 | 7 | 3 | 15 | Dual Circular | N Female |
| AO2G4G-DCPHA10NK | 2-4 | 2.50 | 10 | 3 | 15 | Dual Circular | N Female |
| AO4G8G-DCPHA10NK | 4-8 | 2.50 | 10 | 3 | 15 | Dual Circular | N Female |
| AO6G40G-DCPHA102.92K | 6-40 | 2.50 | 10 | 6 | 8 | Dual Circular | 2.92mm Female |
| AO8G18G-DCPHA10SK | 8-18 | 2.50 | 10 | 5 | 10 | Dual Circular | SMA Female |
| AO18G40G-DCPHA102.92K | 18-40 | 2.50 | 10 | 5 | 10 | Dual Circular | 2.92mm Female |
