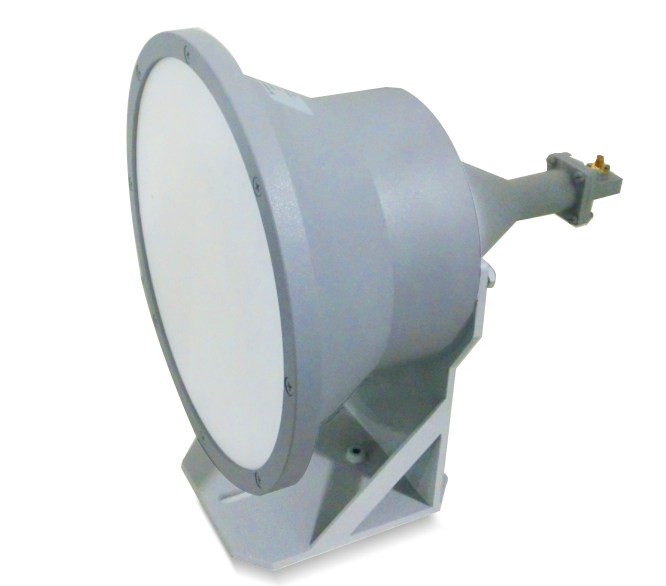

Lens Antenna
Lens Antenna combines advanced lens technology with high-performance antenna design to deliver focused and enhanced signal gain. Our Lens Antennas are engineered for superior directivity and low loss, customizable for different frequency bands and applications, providing customers with efficient solutions for communication, radar, and aerospace systems.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | VSWR (Max) | Gain/dB (Avg) | E Plane 3dB Beamwidth | H Plane 3dB Beamwidth | E Plane Side-lobe Level/dB (Max) | H Plane Side-lobe Level/dB (Max) | Polarization | Interface Type |
| AO90-LHA250 | 8.20-12.5 | 2.50 | 25 | 7°~10° | 7°~10° | -15 | -26 | Linear | UBR100 |
| AO75-LHA250 | 9.84-15.0 | 2.50 | 26 | 7°~10° | 7°~10° | -15 | -26 | Linear | UBR120 |
| AO62-LHA150 | 12.4-18.0 | 2.50 | 23 | 7°~10° | 7°~10° | -15 | -26 | Linear | UBR140 |
| AO62-LHA200 | 12.4-18.0 | 2.50 | 26 | 5°~8° | 5°~8° | -15 | -26 | Linear | UBR140 |
| AO62-LHA250 | 12.4-18.0 | 2.50 | 28 | 3°~6° | 3°~6° | -15 | -26 | Linear | UBR140 |
| AO51-LHA100 | 14.5-22.0 | 2.50 | 22 | 9°~12° | 9°~12° | -15 | -26 | Linear | UBR180 |
| AO51-LHA150 | 14.5-22.0 | 2.50 | 25 | 6°~9° | 6°~9° | -15 | -26 | Linear | UBR180 |
| AO51-LHA200 | 18.0-26.5 | 2.50 | 28 | 4°~7° | 4°~7° | -15 | -26 | Linear | UBR180 |
| AO42-LHA80 | 18.0-26.5 | 2.50 | 21 | 9°~12° | 9°~12° | -15 | -26 | Linear | UBR220 |
| AO42-LHA100 | 18.0-26.5 | 2.50 | 23 | 7°~10° | 7°~10° | -15 | -26 | Linear | UBR220 |
| AO42-LHA150 | 18.0-26.5 | 2.50 | 27 | 4°~7° | 4°~7° | -15 | -26 | Linear | UBR220 |
| AO42-LHA200 | 18.0-26.5 | 2.50 | 29 | 3°~6° | 3°~6° | -15 | -26 | Linear | UBR220 |
| AO34-LHA50 | 22.0-33.0 | 2.50 | 19 | 12°~16° | 12°~16° | -15 | -26 | Linear | UBR260 |
| AO34-LHA80 | 22.0-33.0 | 2.50 | 23 | 7°~10° | 7°~10° | -15 | -26 | Linear | UBR260 |
| AO34-LHA100 | 22.0-33.0 | 2.50 | 25 | 6°~9° | 6°~9° | -15 | -26 | Linear | UBR260 |
| AO34-LHA150 | 22.0-33.0 | 2.50 | 29 | 3°~6° | 3°~6° | -15 | -26 | Linear | UBR260 |
| AO34-LHA200 | 22.0-33.0 | 2.50 | 31 | 2°~4° | 2°~4° | -15 | -26 | Linear | UBR260 |
| AO28-LHA50 | 26.5-40.0 | 2.50 | 21 | 10°~13° | 10°~13° | -15 | -26 | Linear | UBR320 |
| AO28-LHA80 | 26.5-40.0 | 2.50 | 25 | 6°~9° | 6°~9° | -15 | -26 | Linear | UBR320 |
| AO28-LHA100 | 26.5-40.0 | 2.50 | 27 | 4°~7° | 4°~7° | -15 | -26 | Linear | UBR320 |
| AO28-LHA150 | 26.5-40.0 | 2.50 | 31 | 3°~5° | 3°~5° | -15 | -26 | Linear | UBR320 |
| AO28-LHA200 | 26.5-40.0 | 2.50 | 33 | 2°~4° | 2°~4° | -15 | -26 | Linear | UBR320 |
