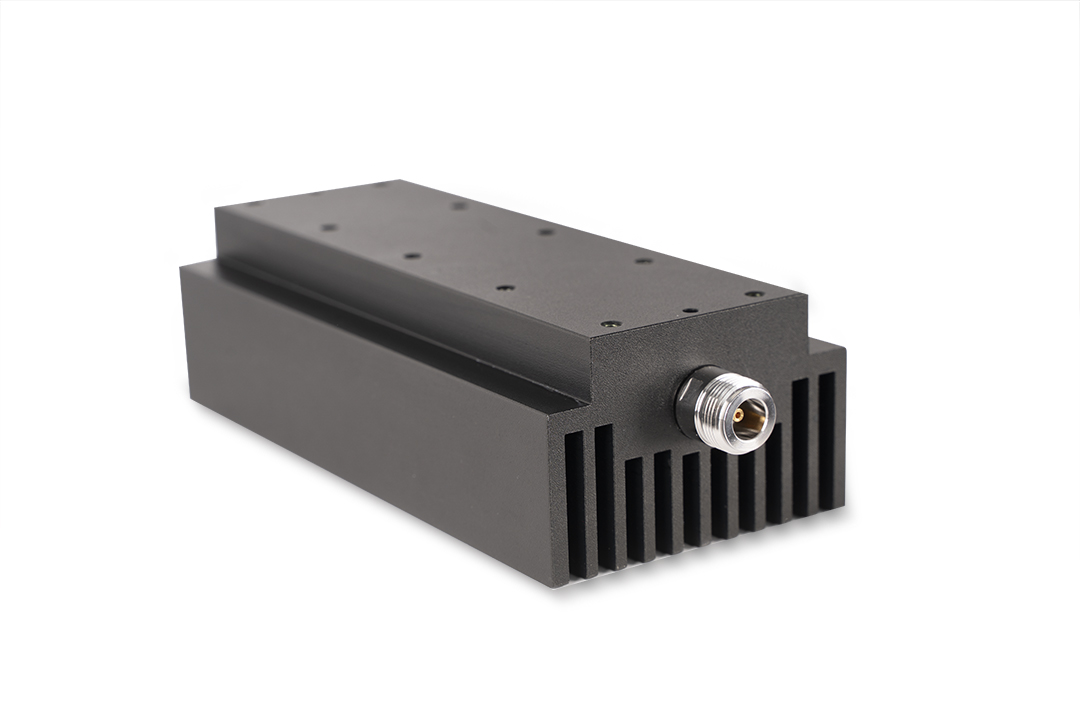

Coaxial Load
Our Coaxial Loads offer excellent impedance matching and power absorption, making them ideal for terminating RF systems with minimal reflection. With low VSWR, wide frequency coverage, and options for high-power handling, they ensure stable and reliable performance in testing and system integration environments.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | VSWR (Max) | Average Power/W (Max) | Interface Type |
| AO8G-CL2-2.92J | DC-8 | 1.20 | 2 | 2.92mm |
| AO8G-CL2-2.92K | DC-8 | 1.20 | 2 | 2.92mm |
| AO12.4G-CL2-2.92J | DC-12.4 | 1.20 | 2 | 2.92mm |
| AO12.4G-CL2-2.92K | DC-12.4 | 1.20 | 2 | 2.92mm |
| AO18G-CL2-2.92J | DC-18 | 1.20 | 2 | 2.92mm |
| AO18G-CL2-2.92K | DC-18 | 1.20 | 2 | 2.92mm |
| AO26.5G-CL2-2.92J | DC-26.5 | 1.25 | 2 | 2.92mm |
| AO26.5G-CL2-2.92K | DC-26.5 | 1.25 | 2 | 2.92mm |
| AO36G-CL2-2.92J | DC-36 | 1.25 | 2 | 2.92mm |
| AO36G-CL2-2.92K | DC-36 | 1.25 | 2 | 2.92mm |
| AO40G-CL2-2.92J | DC-40 | 1.35 | 2 | 2.92mm |
| AO40G-CL2-2.92K | DC-40 | 1.35 | 2 | 2.92mm |
| AO8G-CL5-2.92J | DC-8 | 1.20 | 5 | 2.92mm |
| AO8G-CL5-2.92K | DC-8 | 1.20 | 5 | 2.92mm |
| AO12.4G-CL5-2.92J | DC-12.4 | 1.20 | 5 | 2.92mm |
| AO12.4G-CL5-2.92K | DC-12.4 | 1.20 | 5 | 2.92mm |
| AO18G-CL5-2.92J | DC-18 | 1.20 | 5 | 2.92mm |
| AO18G-CL5-2.92K | DC-18 | 1.20 | 5 | 2.92mm |
| AO26.5G-CL5-2.92J | DC-26.5 | 1.25 | 5 | 2.92mm |
| AO26.5G-CL5-2.92K | DC-26.5 | 1.25 | 5 | 2.92mm |
| AO36G-CL5-2.92J | DC-36 | 1.25 | 5 | 2.92mm |
| AO36G-CL5-2.92K | DC-36 | 1.25 | 5 | 2.92mm |
| AO40G-CL5-2.92J | DC-40 | 1.35 | 5 | 2.92mm |
| AO40G-CL5-2.92K | DC-40 | 1.35 | 5 | 2.92mm |
| AO8G-CL10-2.92J | DC-8 | 1.20 | 10 | 2.92mm |
| AO18G-CL10-2.92J | DC-18 | 1.25 | 10 | 2.92mm |
| AO26.5G-CL10-2.92J | DC-26.5 | 1.30 | 10 | 2.92mm |
| AO40G-CL10-2.92J | DC-40 | 1.40 | 10 | 2.92mm |
| AO4G-CL2-BNCJ | DC-4 | 1.15 | 2 | BNC |
| AO4G-CL2-BNCK | DC-4 | 1.15 | 2 | BNC |
| AO8G-CL2-BNCJ | DC-8 | 1.20 | 2 | BNC |
| AO8G-CL2-BNCK | DC-8 | 1.20 | 2 | BNC |
| AO4G-CL10-BNCJ | DC-4 | 1.15 | 10 | BNC |
| AO8G-CL10-BNCJ | DC-8 | 1.20 | 10 | BNC |
| AO4G-CL20-BNCJ | DC-4 | 1.15 | 20 | BNC |
| AO6G-CL20-BNCJ | DC-6 | 1.20 | 20 | BNC |
| AO4G-CL2-NJ | DC-4 | 1.15 | 2 | N |
| AO4G-CL2-NK | DC-4 | 1.15 | 2 | N |
| AO8G-CL2-NJ | DC-8 | 1.20 | 2 | N |
| AO8G-CL2-NK | DC-8 | 1.20 | 2 | N |
| AO12.4G-CL2-NJ | DC-12.4 | 1.25 | 2 | N |
| AO12.4G-CL2-NK | DC-12.4 | 1.25 | 2 | N |
| AO18G-CL2-NJ | DC-18 | 1.30 | 2 | N |
| AO18G-CL2-NK | DC-18 | 1.30 | 2 | N |
| AO4G-CL5-NJ | DC-4 | 1.15 | 5 | N |
| AO4G-CL5-NK | DC-4 | 1.15 | 5 | N |
| AO6G-CL5-NJ | DC-8 | 1.20 | 5 | N |
| AO6G-CL5-NK | DC-8 | 1.20 | 5 | N |
| AO4G-CL5-NJ | DC-12.4 | 1.25 | 5 | N |
| AO4G-CL5-NK | DC-12.4 | 1.25 | 5 | N |
| AO6G-CL5-NJ | DC-18 | 1.30 | 5 | N |
| AO6G-CL5-NK | DC-18 | 1.30 | 5 | N |
| AO4G-CL10-NJ | DC-4 | 1.15 | 10 | N |
| AO4G-CL10-NK | DC-4 | 1.20 | 10 | N |
| AO8G-CL10-NJ | DC-8 | 1.20 | 10 | N |
| AO8G-CL10-NK | DC-8 | 1.25 | 10 | N |
| AO12.4G-CL10-NJ | DC-12.4 | 1.25 | 10 | N |
| AO12.4G-CL10-NK | DC-12.4 | 1.30 | 10 | N |
| AO18G-CL10-NJ | DC-18 | 1.30 | 10 | N |
| AO18G-CL10-NK | DC-18 | 1.40 | 10 | N |
| AO4G-CL20-NJ | DC-4 | 1.20 | 20 | N |
| AO4G-CL20-NK | DC-4 | 1.20 | 20 | N |
| AO8G-CL20-NJ | DC-8 | 1.25 | 20 | N |
| AO8G-CL20-NK | DC-8 | 1.25 | 20 | N |
| AO12.4G-CL20-NJ | DC-12.4 | 1.35 | 20 | N |
| AO12.4G-CL20-NK | DC-12.4 | 1.35 | 20 | N |
| AO18G-CL20-NJ | DC-18 | 1.40 | 20 | N |
| AO18G-CL20-NK | DC-18 | 1.40 | 20 | N |
| AO4G-CL25-NJ | DC-4 | 1.20 | 25 | N |
| AO8G-CL25-NJ | DC-8 | 1.25 | 25 | N |
| AO12.4G-CL25-NJ | DC-12.4 | 1.35 | 25 | N |
| AO18G-CL25-NJ | DC-18 | 1.40 | 25 | N |
| AO4G-CL30-NJ | DC-4 | 1.20 | 30 | N |
| AO8G-CL30-NJ | DC-8 | 1.25 | 30 | N |
| AO12.4G-CL30-NJ | DC-12.4 | 1.35 | 30 | N |
| AO18G-CL30-NJ | DC-18 | 1.40 | 30 | N |
| AO4G-CL50-NJ | DC-4 | 1.20 | 50 | N |
| AO8G-CL50-NJ | DC-8 | 1.25 | 50 | N |
| AO12.4G-CL50-NJ | DC-12.4 | 1.35 | 50 | N |
| AO18G-CL50-NJ | DC-18 | 1.40 | 50 | N |
| AO4G-CL100-NJ | DC-4 | 1.15 | 100 | N |
| AO8G-CL100-NJ | DC-8 | 1.20 | 100 | N |
| AO12.4G-CL100-NJ | DC-12.4 | 1.25 | 100 | N |
| AO18G-CL100-NJ | DC-18 | 1.35 | 100 | N |
| AO4G-CL150-NJ | DC-4 | 1.20 | 150 | N |
| AO8G-CL150-NJ | DC-8 | 1.25 | 150 | N |
| AO12.4G-CL150-NJ | DC-12.4 | 1.35 | 150 | N |
| AO18G-CL150-NJ | DC-18 | 1.45 | 150 | N |
| AO4G-CL200-NJ | DC-4 | 1.20 | 200 | N |
| AO8G-CL200-NJ | DC-8 | 1.25 | 200 | N |
| AO12.4G-CL200-NJ | DC-12.4 | 1.35 | 200 | N |
| AO18G-CL200-NJ | DC-18 | 1.45 | 200 | N |
| AO4G-CL250-NJ | DC-4 | 1.20 | 250 | N |
| AO8G-CL250-NJ | DC-8 | 1.25 | 250 | N |
| AO12.4G-CL250-NJ | DC-12.4 | 1.35 | 250 | N |
| AO18G-CL250-NJ | DC-18 | 1.45 | 250 | N |
| AO4G-CL300-NJ | DC-4 | 1.20 | 300 | N |
| AO8G-CL300-NJ | DC-8 | 1.25 | 300 | N |
| AO12.4G-CL300-NJ | DC-12.4 | 1.35 | 300 | N |
| AO18G-CL300-NJ | DC-18 | 1.45 | 300 | N |
| AO12.4G-CL400-NJ | DC-12.4 | 1.35 | 400 | N |
| AO12.4G-CL500-NJ | DC-12.4 | 1.35 | 500 | N |
| AO1G-CL1000-NJ | DC-1 | 1.15 | 1000 | N |
| AO2G-CL1000-NJ | DC-2 | 1.20 | 1000 | N |
| AO3G-CL1000-NJ | DC-3 | 1.25 | 1000 | N |
| AO4G-CL1000-NJ | DC-4 | 1.40 | 1000 | N |
| AO1G-CL1500-NJ | DC-1 | 1.15 | 1500 | N |
| AO2G-CL1500-NJ | DC-2 | 1.20 | 1500 | N |
| AO3G-CL1500-NJ | DC-3 | 1.25 | 1500 | N |
| AO4G-CL1500-NJ | DC-4 | 1.40 | 1500 | N |
| AO4G-CL2-QMAJ | DC-4 | 1.15 | 2 | QMA |
| AO6G-CL2-QMAJ | DC-6 | 1.20 | 2 | QMA |
| AO12.4G-CL2-SJ | DC-12.4 | 1.25 | 2 | SMA |
| AO12.4G-CL2-SK | DC-12.4 | 1.25 | 2 | SMA |
| AO4G-CL2-SJ | DC-4 | 1.15 | 2 | SMA |
| AO4G-CL2-SK | DC-4 | 1.15 | 2 | SMA |
| AO8G-CL2-SJ | DC-8 | 1.20 | 2 | SMA |
| AO8G-CL2-SK | DC-8 | 1.20 | 2 | SMA |
| AO18G-CL2-SJ | DC-18 | 1.30 | 2 | SMA |
| AO18G-CL2-SK | DC-18 | 1.30 | 2 | SMA |
| AO4G-CL5-SJ | DC-4 | 1.15 | 5 | SMA |
| AO6G-CL5-SJ | DC-6 | 1.20 | 5 | SMA |
| AO12.4G-CL5-SJ | DC-12.4 | 1.25 | 5 | SMA |
| AO18G-CL5-SJ | DC-18 | 1.30 | 5 | SMA |
| AO4G-CL10-SJ | DC-4 | 1.15 | 10 | SMA |
| AO4G-CL10-SK | DC-4 | 1.15 | 10 | SMA |
| AO8G-CL10-SJ | DC-8 | 1.20 | 10 | SMA |
| AO8G-CL10-SK | DC-8 | 1.20 | 10 | SMA |
| AO12.4G-CL10-SJ | DC-12.4 | 1.25 | 10 | SMA |
| AO12.4G-CL10-SK | DC-12.4 | 1.25 | 10 | SMA |
| AO18G-CL10-SJ | DC-18 | 1.30 | 10 | SMA |
| AO18G-CL10-SK | DC-18 | 1.30 | 10 | SMA |
| AO4G-CL25-SJ | DC-4 | 1.15 | 25 | SMA |
| AO8G-CL25-SJ | DC-8 | 1.20 | 25 | SMA |
| AO12.4G-CL25-SJ | DC-12.4 | 1.25 | 25 | SMA |
| AO18G-CL25-SJ | DC-18 | 1.30 | 25 | SMA |
| AO4G-CL30-SJ | DC-4 | 1.20 | 30 | SMA |
| AO8G-CL30-SJ | DC-8 | 1.25 | 30 | SMA |
| AO12.4G-CL30-SJ | DC-12.4 | 1.35 | 30 | SMA |
| AO18G-CL30-SJ | DC-18 | 1.40 | 30 | SMA |
| AO4G-CL100-SJ | DC-4 | 1.15 | 100 | SMA |
| AO8G-CL100-SJ | DC-8 | 1.20 | 100 | SMA |
| AO12.4G-CL100-SJ | DC-12.4 | 1.25 | 100 | SMA |
| AO18G-CL100-SJ | DC-18 | 1.35 | 100 | SMA |
| AO4G-CL2-SSMAJ | DC-4 | 1.15 | 2 | SSMA |
| AO4G-CL2-SSMAK | DC-4 | 1.15 | 2 | SSMA |
| AO8G-CL2-SSMAJ | DC-8 | 1.20 | 2 | SSMA |
| AO8G-CL2-SSMAK | DC-8 | 1.20 | 2 | SSMA |
| AO12.4G-CL2-SSMAJ | DC-12.4 | 1.25 | 2 | SSMA |
| AO12.4G-CL2-SSMAK | DC-12.4 | 1.25 | 2 | SSMA |
| AO18G-CL2-SSMAJ | DC-18 | 1.30 | 2 | SSMA |
| AO18G-CL2-SSMAK | DC-18 | 1.30 | 2 | SSMA |
| AO4G-CL2-TNCK | DC-4 | 1.15 | 2 | TNC |
| AO4G-CL2-TNCJ | DC-4 | 1.15 | 2 | TNC |
| AO8G-CL2-TNCK | DC-8 | 1.20 | 2 | TNC |
| AO8G-CL2-TNCJ | DC-8 | 1.20 | 2 | TNC |
| AO12.4G-CL2-TNCJ | DC-12.4 | 1.25 | 2 | TNC |
| AO18G-CL2-TNCJ | DC-18 | 1.30 | 2 | TNC |
| AO4G-CL5-TNCK | DC-4 | 1.20 | 5 | TNC |
| AO4G-CL5-TNCJ | DC-4 | 1.20 | 5 | TNC |
| AO6G-CL5-TNCK | DC-8 | 1.25 | 5 | TNC |
| AO6G-CL5-TNCJ | DC-8 | 1.25 | 5 | TNC |
| AO12.4G-CL5-TNCK | DC-12.4 | 1.35 | 5 | TNC |
| AO12.4G-CL5-TNCJ | DC-12.4 | 1.35 | 5 | TNC |
| AO18G-CL5-TNCK | DC-18 | 1.40 | 5 | TNC |
| AO18G-CL5-TNCJ | DC-18 | 1.40 | 5 | TNC |
| AO4G-CL10-TNCJ | DC-4 | 1.15 | 10 | TNC |
| AO8G-CL10-TNCJ | DC-8 | 1.25 | 10 | TNC |
| AO12.4G-CL10-TNCJ | DC-12.4 | 1.35 | 10 | TNC |
| AO18G-CL10-TNCJ | DC-18 | 1.40 | 10 | TNC |
| AO4G-CL20-TNCK | DC-4 | 1.20 | 20 | TNC |
| AO4G-CL20-TNCJ | DC-4 | 1.20 | 20 | TNC |
| AO8G-CL20-TNCK | DC-8 | 1.25 | 20 | TNC |
| AO8G-CL20-TNCJ | DC-8 | 1.25 | 20 | TNC |
| AO12.4G-CL20-TNCK | DC-12.4 | 1.35 | 20 | TNC |
| AO12.4G-CL20-TNCJ | DC-12.4 | 1.35 | 20 | TNC |
| AO18G-CL20-TNCK | DC-18 | 1.40 | 20 | TNC |
| AO18G-CL20-TNCJ | DC-18 | 1.40 | 20 | TNC |
| AO4G-CL25-TNCJ | DC-4 | 1.20 | 25 | TNC |
| AO8G-CL25-TNCJ | DC-8 | 1.25 | 25 | TNC |
| AO12.4G-CL25-TNCJ | DC-12.4 | 1.35 | 25 | TNC |
| AO18G-CL25-TNCJ | DC-18 | 1.40 | 25 | TNC |
| AO4G-CL50-TNCJ | DC-4 | 1.20 | 50 | TNC |
| AO8G-CL50-TNCJ | DC-8 | 1.25 | 50 | TNC |
| AO12.4G-CL50-TNCJ | DC-12.4 | 1.35 | 50 | TNC |
| AO18G-CL50-TNCJ | DC-18 | 1.40 | 50 | TNC |
