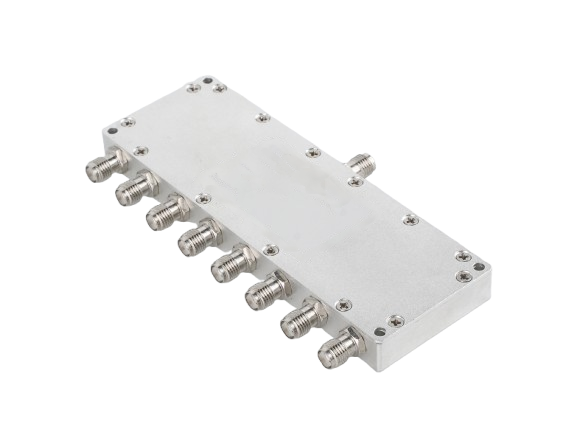

Coaxial Power Divider
Coaxial Power Divider evenly splits RF signals into multiple outputs with low insertion loss and high isolation between ports. Designed for broad frequency coverage and customizable configurations, it provides reliable power distribution solutions for communication, radar, and testing applications.
Description
Package Information
Inquiry
| Part No | Way | Frequency/GHz | Input VSWR (Max) | Output VSWR (Max) | IL/dB (Max) | Isolation/dB (Min) | Forward Power/W (Max) | Reverse Power/W (Max) | Connector Type |
| AO0.5G2G-2CPD30-SK | 2 Ways | 0.5-2 | 1.3 | 1.25 | 0.60 | 20 | 30 | 1 | SMA Female |
| AO0.5G18G-2CPD20-SK | 2 Ways | 0.5-18 | 1.7 | 1.5 | 1.00 | 16 | 20 | 1 | SMA Female |
| AO0.8G2.5G-2CPD30-SK | 2 Ways | 0.8-2.5 | 1.35 | 1.25 | 0.50 | 20 | 30 | 1 | SMA Female |
| AO1G2G-2CPD30-SK | 2 Ways | 1-2 | 1.25 | 1.2 | 0.35 | 20 | 30 | 1 | SMA Female |
| AO1G4G-2CPD30-SK | 2 Ways | 1-4 | 1.35 | 1.25 | 0.50 | 20 | 30 | 1 | SMA Female |
| AO1G8G-2CPD30-SK | 2 Ways | 1-8 | 1.4 | 1.35 | 1.00 | 20 | 30 | 1 | SMA Female |
| AO1G12.4G-2CPD30-SK | 2 Ways | 1-12.4 | 1.5 | 1.4 | 1.50 | 16 | 30 | 1 | SMA Female |
| AO1G18G-2CPD30-SK | 2 Ways | 1-18 | 1.6 | 1.5 | 1.20 | 16 | 30 | 1 | SMA Female |
| AO1G26.5G-2CPD20-2.92K | 2 Ways | 1-26.5 | 1.8 | 1.7 | 1.50 | 16 | 20 | 0.5 | 2.92mm Female |
| AO1G40G-2CPD20-2.92K | 2 Ways | 1-40 | 2 | 1.8 | 2.20 | 15 | 20 | 0.5 | 2.92mm Female |
| AO2G4G-2CPD30-SK | 2 Ways | 2-4 | 1.3 | 1.25 | 0.40 | 20 | 30 | 1 | SMA Female |
| AO2G8G-2CPD30-SK | 2 Ways | 2-8 | 1.4 | 1.3 | 0.60 | 20 | 30 | 1 | SMA Female |
| AO2G12G-2CPD20-SK | 2 Ways | 2-12 | 1.4 | 1.3 | 0.80 | 16 | 20 | 1 | SMA Female |
| AO2G18G-2CPD30-SK | 2 Ways | 2-18 | 1.5 | 1.5 | 1.00 | 16 | 30 | 1 | SMA Female |
| AO2G22G-2CPD30-SK | 2 Ways | 2-22 | 1.6 | 1.5 | 1.20 | 16 | 30 | 0.5 | SMA Female |
| AO2G40G-2CPD20-2.92K | 2 Ways | 2-40 | 1.8 | 1.5 | 1.80 | 16 | 20 | 0.5 | 2.92mm Female |
| AO4G8G-2CPD30-SK | 2 Ways | 4-8 | 1.3 | 1.2 | 0.50 | 20 | 30 | 2 | SMA Female |
| AO4G18G-2CPD30-SK | 2 Ways | 4-18 | 1.6 | 1.5 | 0.80 | 18 | 30 | 1 | SMA Female |
| AO6G18G-2CPD30-SK | 2 Ways | 6-18 | 1.6 | 1.5 | 1.00 | 18 | 30 | 1 | SMA Female |
| AO6G40G-2CPD20-2.92K | 2 Ways | 6-40 | 1.7 | 1.5 | 1.30 | 16 | 20 | 0.5 | 2.92mm Female |
| AO10G43.3G-2CPD10-2.92K | 2 Ways | 10-43.3 | 1.7 | 1.6 | 1.30 | 16 | 10 | 0.5 | 2.92mm Female |
| AO20G27G-2CPD10-2.92K | 2 Ways | 20-27 | 1.6 | 1.5 | 1.00 | 16 | 10 | 1 | 2.92mm Female |
| AO18G-2CPD1-SK | 2 Ways | DC-18 | 1.3 | 2 | 1.50 | 10 | 1 | 0.1 | SMA Female |
| AO26.5G-2CPD1-SK | 2 Ways | DC-26.5 | 1.5 | 2.5 | 1.50 | 10 | 1 | 0.1 | SMA Female |
| AO40G-2CPD1-2.92K | 2 Ways | DC-40 | 1.5 | 2.5 | 2.00 | 10 | 1 | 0.1 | 2.92mm Female |
| AO50G-2CPD1-2.4K | 2 Ways | DC-50 | 1.6 | 2.5 | 2.00 | 10 | 1 | 0.1 | 2.4mm Female |
| AO50G-2CPD1-2.92K | 2 Ways | DC-50 | 1.6 | 1.6 | 2.50 | 1 | 0.1 | 2.92mm Female | |
| AO67G-2CPD1-1.85K | 2 Ways | DC-67 | 1.8 | 2.5 | 2.50 | 10 | 1 | 0.1 | 1.85mm Female |
| AO0.5G3G-3CPD30-SK | 3 Ways | 0.5-3 | 1.5 | 1.3 | 1.30 | 20 | 30 | 2 | SMA Female |
| AO0.5G2G-3CPD30-SK | 3 Ways | 0.5-2 | 1.5 | 1.3 | 1.00 | 20 | 30 | 1 | SMA Female |
| AO0.8G2.5G-3CPD30-SK | 3 Ways | 0.8-2.5 | 1.5 | 1.3 | 0.80 | 20 | 30 | 1 | SMA Female |
| AO1G2G-3CPD30-SK | 3 Ways | 1-2 | 1.35 | 1.3 | 0.70 | 20 | 30 | 1 | SMA Female |
| AO1G18G-3CPD20-SK | 3 Ways | 1-18 | 1.7 | 1.6 | 1.50 | 17 | 20 | 0.5 | SMA Female |
| AO2G4G-3CPD30-SK | 3 Ways | 2-4 | 1.6 | 1.5 | 0.70 | 20 | 30 | 1 | SMA Female |
| AO2G8G-3CPD30-SK | 3 Ways | 2-8 | 1.4 | 1.3 | 1.00 | 20 | 30 | 1 | SMA Female |
| AO2G18G-3CPD20-SK | 3 Ways | 2-18 | 1.7 | 1.6 | 1.50 | 16 | 20 | 0.5 | SMA Female |
| AO4G8G-3CPD30-SK | 3 Ways | 4-8 | 1.4 | 1.3 | 0.60 | 18 | 30 | 1 | SMA Female |
| AO6G18G-3CPD30-SK | 3 Ways | 6-18 | 1.8 | 1.6 | 1.20 | 18 | 30 | 1 | SMA Female |
| AO0.5G2G-4CPD30-SK | 4 Ways | 0.5-2 | 1.5 | 1.4 | 1.00 | 20 | 30 | 1 | SMA Female |
| AO0.5G3G-4CPD30-SK | 4 Ways | 0.5-3 | 1.6 | 1.4 | 1.40 | 18 | 30 | 1 | SMA Female |
| AO0.5G6G-4CPD30-SK | 4 Ways | 0.5-6 | 1.6 | 1.4 | 1.80 | 18 | 30 | 1 | SMA Female |
| AO0.5G18G-4CPD30-SK | 4 Ways | 0.5-18 | 2.1 | 1.7 | 2.50 | 16 | 30 | 0.5 | SMA Female |
| AO0.8G2.5G-4CPD30-SK | 4 Ways | 0.8-2.5 | 1.35 | 1.25 | 0.70 | 20 | 30 | 1 | SMA Female |
| AO1G2G-4CPD30-SK | 4 Ways | 1-2 | 1.3 | 1.25 | 0.60 | 20 | 30 | 1 | SMA Female |
| AO1G4G-4CPD30-SK | 4 Ways | 1-4 | 1.35 | 1.3 | 0.80 | 20 | 30 | 1 | SMA Female |
| AO1G8G-4CPD30-SK | 4 Ways | 1-8 | 1.45 | 1.35 | 1.60 | 20 | 30 | 1 | SMA Female |
| AO1G12.4G-4CPD30-SK | 4 Ways | 1-12.4 | 1.6 | 1.4 | 2.80 | 16 | 30 | 0.5 | SMA Female |
| AO1G18G-4CPD30-SK | 4 Ways | 1-18 | 1.7 | 1.6 | 2.80 | 16 | 30 | 1 | SMA Female |
| AO2G4G-4CPD30-SK | 4 Ways | 2-4 | 1.35 | 1.3 | 0.60 | 20 | 30 | 1 | SMA Female |
| AO2G8G-4CPD30-SK | 4 Ways | 2-8 | 1.45 | 1.3 | 1.20 | 20 | 30 | 1 | SMA Female |
| AO2G18G-4CPD30-SK | 4 Ways | 2-18 | 1.65 | 1.6 | 2.00 | 16 | 30 | 1 | SMA Female |
| AO2G26G-4CPD20-2.92K | 4 Ways | 2-26 | 2 | 1.8 | 2.25 | 15 | 20 | 1 | 2.92mm Female |
| AO2G40G-4CPD20-2.92K | 4 Ways | 2-40 | 2.2 | 1.6 | 3.00 | 15 | 20 | 0.5 | 2.92mm Female |
| AO4G8G-4CPD30-SK | 4 Ways | 4-8 | 1.35 | 1.3 | 0.80 | 20 | 30 | 1 | SMA Female |
| AO4G18G-4CPD30-SK | 4 Ways | 4-18 | 1.6 | 1.5 | 1.30 | 16 | 30 | 1 | SMA Female |
| AO6G18G-4CPD30-SK | 4 Ways | 6-18 | 1.6 | 1.5 | 1.00 | 18 | 30 | 1 | SMA Female |
| AO6G40G-4CPD20-2.92K | 4 Ways | 6-40 | 2 | 1.6 | 2.20 | 15 | 20 | 1 | 2.92mm Female |
| AO18G40G-4CPD20-2.92K | 4 Ways | 18-40 | 2 | 1.6 | 2.20 | 15 | 20 | 1 | 2.92mm Female |
| AO0.5G2G-6CPD30-SK | 6 Ways | 0.5-2 | 1.5 | 1.35 | 1.50 | 20 | 30 | 1 | SMA Female |
| AO0.5G6G-6CPD30-SK | 6 Ways | 0.5-6 | 1.65 | 1.4 | 3.00 | 16 | 30 | 1 | SMA Female |
| AO0.8G2.5G-6CPD30-SK | 6 Ways | 0.8-2.5 | 1.5 | 1.3 | 1.20 | 20 | 30 | 1 | SMA Female |
| AO1G4G-6CPD30-SK | 6 Ways | 1-4 | 1.4 | 1.3 | 1.50 | 20 | 30 | 1 | SMA Female |
| AO2G4G-6CPD30-SK | 6 Ways | 2-4 | 1.5 | 1.4 | 1.00 | 20 | 30 | 1 | SMA Female |
| AO2G8G-6CPD30-SK | 6 Ways | 2-8 | 1.4 | 1.3 | 1.50 | 18 | 30 | 1 | SMA Female |
| AO6G18G-6CPD30-SK | 6 Ways | 6-18 | 1.8 | 1.5 | 1.80 | 16 | 30 | 1 | SMA Female |
| AO0.2G0.8G-8CPD30-SK | 8 Ways | 0.2-0.8 | 1.6 | 1.5 | 1.50 | 20 | 30 | / | SMA Female |
| AO0.5G2G-8CPD30-SK | 8 Ways | 0.5-2 | 1.5 | 1.4 | 1.50 | 20 | 30 | 1 | SMA Female |
| AO0.5G6G-8CPD30-SK | 8 Ways | 0.5-6 | 1.6 | 1.4 | 2.70 | 18 | 30 | 1 | SMA Female |
| AO0.5G18G-8CPD20-SK | 8 Ways | 0.5-18 | 2 | 1.7 | 6.50 | 13 | 20 | 1 | SMA Female |
| AO0.8G2.5G-8CPD30-SK | 8 Ways | 0.8-2.5 | 1.45 | 1.3 | 1.30 | 20 | 30 | 1 | SMA Female |
| AO1G2G-8CPD30-SK | 8 Ways | 1-2 | 1.35 | 1.25 | 1.00 | 20 | 30 | 1 | SMA Female |
| AO1G4G-8CPD30-SK | 8 Ways | 1-4 | 1.5 | 1.3 | 1.50 | 20 | 30 | 1 | SMA Female |
| AO1G8G-8CPD30-SK | 8 Ways | 1-8 | 1.6 | 1.4 | 2.80 | 18 | 30 | 1 | SMA Female |
| AO1G12.4G-8CPD20-SK | 8 Ways | 1-12.4 | 1.8 | 1.5 | 4.00 | 15 | 20 | 1 | SMA Female |
| AO1G18G-8CPD20-SK | 8 Ways | 1-18 | 2 | 1.8 | 4.00 | 15 | 20 | 1 | SMA Female |
| AO2G4G-8CPD30-SK | 8 Ways | 2-4 | 1.4 | 1.3 | 0.80 | 20 | 30 | 1 | SMA Female |
| AO2G8G-8CPD30-SK | 8 Ways | 2-8 | 1.6 | 1.3 | 1.80 | 20 | 30 | 1 | SMA Female |
| AO2G18G-8CPD30-SK | 8 Ways | 2-18 | 1.9 | 1.6 | 3.50 | 15 | 30 | 1 | SMA Female |
| AO4G8G-8CPD30-SK | 8 Ways | 4-8 | 1.6 | 1.35 | 1.20 | 18 | 30 | 1 | SMA Female |
| AO4G18G-8CPD30-SK | 8 Ways | 4-18 | 1.8 | 1.5 | 1.80 | 16 | 30 | 1 | SMA Female |
| AO6G18G-8CPD30-SK | 8 Ways | 6-18 | 1.8 | 1.5 | 1.80 | 18 | 30 | 1 | SMA Female |
| AO0.5G40G-8CPD20-2.92K | 8 Ways | 0.5-40 | 1.8 | 1.8 | 11.00 | 15 | 20 | / | 2.92mm Female |
| AO6G40G-8CPD20-2.92K | 8 Ways | 6-40 | 2.1 | 1.9 | 2.50 | 15 | 20 | / | 2.92mm Female |
| AO4G8G-9CPD20-SK | 9 Ways | 4-8 | 1.7 | 1.5 | 2.00 | 16 | 20 | / | SMA Female |
| AO0.4G2G-12CPD20-SK | 12 Ways | 0.4-2 | 1.7 | 1.5 | 2.50 | 16 | 20 | / | SMA Female |
| AO2G8G-12CPD20-SK | 12 Ways | 2-8 | 1.8 | 1.5 | 2.20 | 18 | 20 | / | SMA Female |
| AO0.5G6G-16CPD20-SK | 16 Ways | 0.5-6 | 2 | 1.5 | 3.50 | 18 | 20 | / | SMA Female |
| AO0.8G2.5G-16CPD20-SK | 16 Ways | 0.8-2.5 | 1.5 | 1.3 | 1.70 | 18 | 20 | / | SMA Female |
| AO1G12.4G-16CPD20-SK | 16 Ways | 1-12.4 | 1.8 | 1.6 | 5.00 | 15 | 20 | / | SMA Female |
| AO2G4G-16CPD30-SK | 16 Ways | 2-4 | 1.6 | 1.4 | 1.20 | 18 | 30 | / | SMA Female |
| AO4G8G-16CPD20-SK | 16 Ways | 4-8 | 1.7 | 1.5 | 1.50 | 18 | 20 | / | SMA Female |
