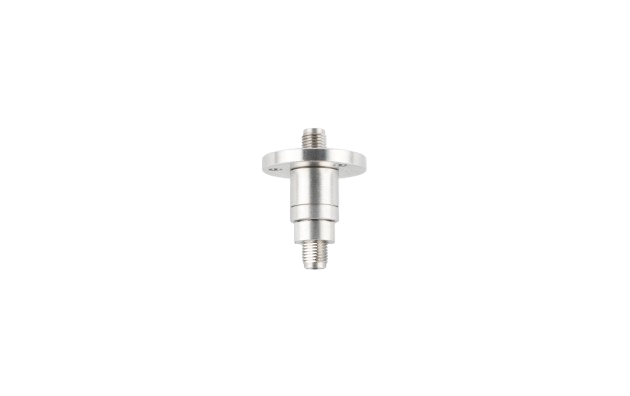

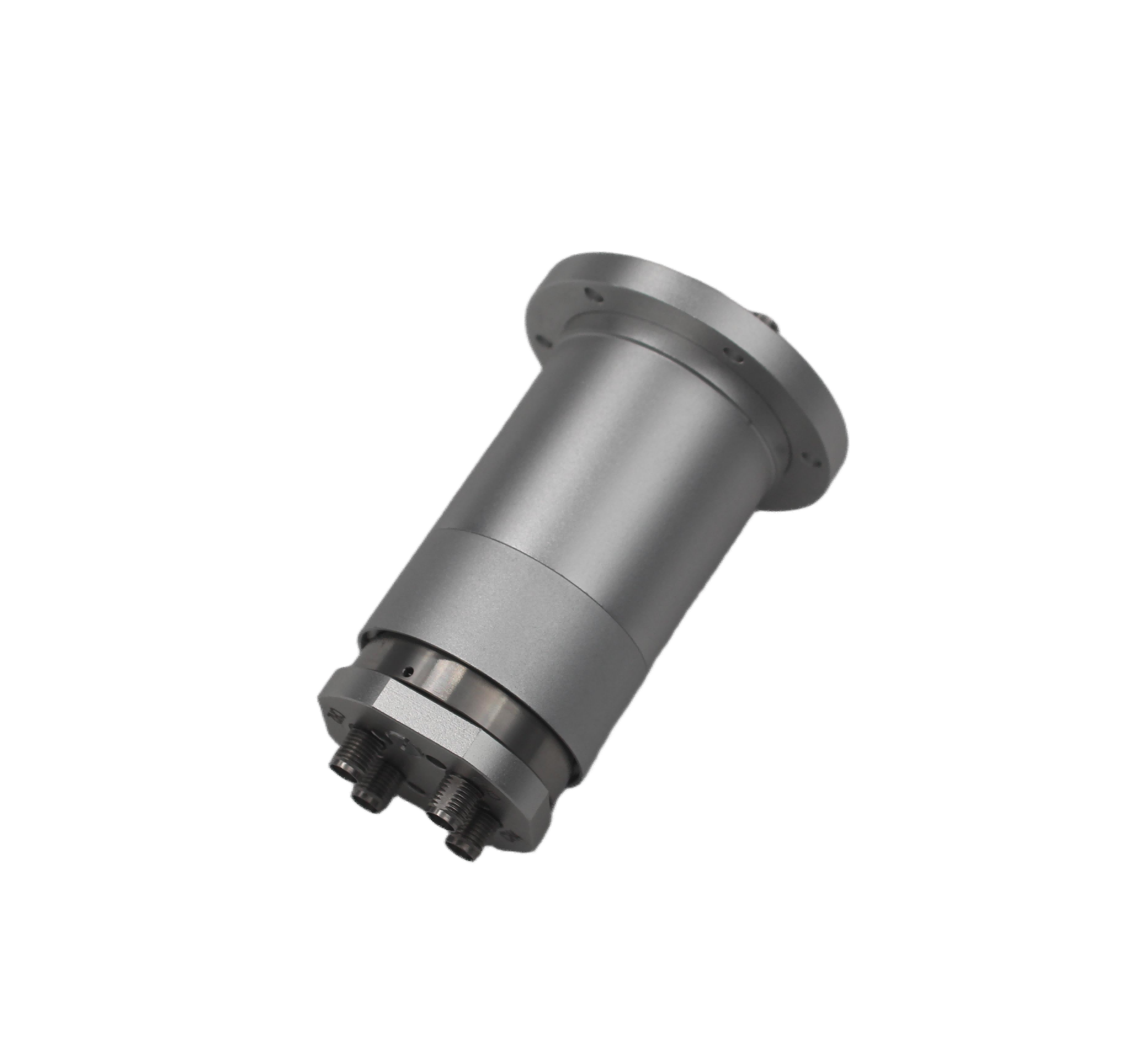

Coaxial Rotary Joint

Coaxial Rotary Joint allows continuous rotation between connected coaxial components while maintaining excellent signal integrity with low insertion loss and high isolation. Engineered for reliability and customizable to various frequency ranges, it is ideal for applications in radar, communication, and aerospace systems requiring dynamic movement without signal degradation.
Description Package Information Inquiry
Part NoWayFrequency/GHz
VSWR (Max)VSWR Ripple (Max)IL/dB (Max)IL Ripple/dB (Max)Average Power/W (Max)Peak Power/W (Max)Connector Type 1Connector Type 2
AO18G-CRJI100-NJK-IP651 WayDC-181.50 0.05 0.60 0.10 100 1,500 N MaleN Female
AO18G-CRJI100-NKK-IP651 WayDC-181.50 0.05 0.60 0.10 100 1,500 N FemaleN Female
AO18G-CRJI20-SKK-L33.91 WayDC-181.35 0.05 0.45 0.10 20 2,000 SMA FemaleSMA Female
AO18G-CRJI20-SKK-L33.9S1 WayDC-181.35 0.05 0.45 0.10 20 2,000 SMA FemaleSMA Female
AO18G-CRJI20-SKK-L341 WayDC-181.35 0.05 0.45 0.10 20 2,000 SMA FemaleSMA Female
AO18G-CRJI30-SKK-IP401 WayDC-181.40 0.10 0.60 0.10 30 3,000 SMA FemaleSMA Female
AO18G-CRJU100-NKK-IP651 WayDC-181.50 0.05 0.60 0.10 100 1,500 N FemaleN Female
AO27G-CRJI20-2.92KK-L33.91 WayDC-271.80 0.15 1.00 0.20 20 2,000 2.92mm Female2.92mm Female
AO40G-CRJI20-2.92KK-L33.91 WayDC-401.80 0.15 1.00 0.20 20 2,000 2.92mm Female2.92mm Female
AO50G-CRJI3-2.4KK-IP401 WayDC-501.70 0.10 0.90 0.10 3 15,000 2.4mm Female2.4mm Female
AO5G-CRJII15-SKK-IP512 WaysDC-51.30/1.500.05/0.100.30/0.500.10/0.1515 1,000 SMA FemaleSMA Female
AO4.5G-CRJII10-SKK-IP642 WaysDC-4.51.20/1.500.05/0.200.25/0.500.05/0.1510 1,000 SMA FemaleSMA Female
AO4.5G-CRJII20-SKK-IP602 WaysDC-4.51.20/1.500.05/0.100.25/0.450.05/0.1020 500 SMA FemaleSMA Female
AO4.5G-CRJII50-SKK-IP602 WaysDC-4.51.20/1.450.05/0.100.25/0.450.05/0.1550 1,000 SMA FemaleSMA Female
AO4.5G-CRJLL20-SKK-IP51T12 WaysDC-4.51.40/1.500.05/0.100.40/0.500.05/0.1020 200 SMA FemaleSMA Female
AO4.5G-CRJUU20-SKK-IP512 WaysDC-4.51.20/1.500.05/0.100.30/0.500.05/0.1020 200 SMA FemaleSMA Female
AO40G-CRJII5-2.92KSK-IP512 WaysDC-40/182.20/4.500.40/2.002.50/3.500.45/1.505 500 2.92mm FemaleSMA Female
AO5G-CRJII20-SKK-IP512 WaysDC-51.20/1.500.05/0.100.25/0.450.05/0.1020 500 SMA FemaleSMA Female
AO5G-CRJII20-SKK-IP602 WaysDC-51.20/1.500.05/0.200.25/0.500.05/0.1020 500 SMA FemaleSMA Female
AO8G-CRJII10-SKK-IP602 WaysDC-81.50/1.700.10/0.250.50/0.800.10/0.2510 200 SMA FemaleSMA Female
AO8G-CRJII20-SKK-IP512 WaysDC-81.50/1.700.10/0.250.70/0.900.10/0.2520 200 SMA FemaleSMA Female
AO8G-CRJLL10-SKK-IP512 WaysDC-81.30/1.600.15/0.250.40/0.900.15/0.2510 200 SMA FemaleSMA Female
AO0.97G1.15G-CRJ3L300-NKK-IP513 Ways0.97-1.151.25 0.10 0.50 0.10 300 10,000 N FemaleN Female
AO4G-CRJ3I15-NKK-IP653 WaysDC-41.30/1.500.10 0.80 0.10 15 500 N FemaleN Female
AO5G-CRJ4I30-SKK-IP514 WaysDC-51.40/1.500.05/0.100.60/0.800.10/0.1530 200 SMA FemaleSMA Female
AO5G-CRJ4I30-SKK-IP654 WaysDC-51.40/1.500.05/0.100.60/0.800.10/0.1530 200 SMA FemaleSMA Female
AO8G-CRJ4I10-SKK-IP514 WaysDC-81.40/1.600.10/0.300.90/1.200.10/0.3010 200 SMA FemaleSMA Female
AO2.2G2.4G-CRJ5L30-SKK-IP515 Ways2.2-2.41.50 0.15 1.00 0.30 30 200 SMA FemaleSMA Female
AO2.7G3G-CRJ5L100-NKSK-IP655 Ways2.7-31.35 0.10 0.70/0.600.15 100 10,000 N FemaleSMA Female
