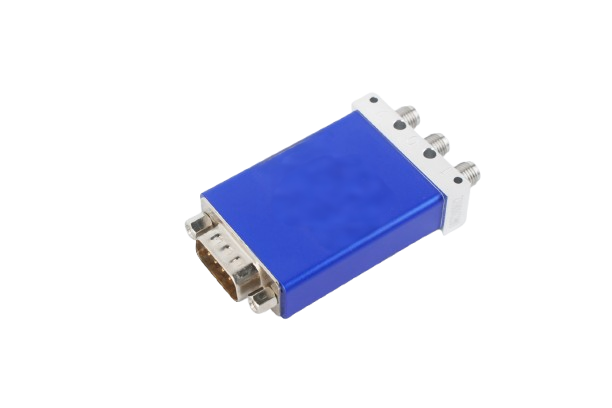

Coaxial Switch
Coaxial Switch enables fast and reliable switching between multiple RF signal paths with low insertion loss and high isolation. Designed for durability and customizable configurations, it supports seamless operation in communication, testing, and radar systems, helping customers optimize signal routing and system flexibility.
Description
Package Information
Inquiry
| Part No | Switch Stype | Frequency/GHz | VSWR (Max) | IL/dB (Max) | Isolation/dB (Min) | Iutput Power/W (Max) | Switching Time | Power Supply | Control Way |
| AO300K8G-CS1-SP2T-SKK | SP2T | 300KHz-8GHz | 1.5 | 2dB@300KHz-1GHz 2.5dB@1GHz-3GHz 3.5dB@3GHz-6GHz 4.0dB@6GHz-8GHz | 60dB@300KHz-1GHz 50dB@1GHz-3GHz 40dB@3GHz-8GHz | 1 | 300ns | +5V/200mA | TTL |
| AO1M30M-CS75-SP2T-NKK | SP2T | 1-30MHz | 1.5 | 0.5 | 50 | 75 | 20μs | +12V/300mA | TTL |
| AO0.001G1G-CS0.5-SP2T-SKK | SP2T | 0.001-1 | 1.5 | 1.5 | 60 | 1 | 200ns | +5V/150mA | TTL |
| AO0.02G0.5G-CS100-SP2T-SKK | SP2T | 0.02-0.5 | 1.5 | 0.5 | 60 | 100 | 10μs | +12V/300mA | TTL |
| AO0.02G0.52G-CS100-SP2T-SKK | SP2T | 0.02-0.52 | 1.5 | 0.5 | 60 | 100 | 10μs | +12V/300mA | TTL |
| AO0.1G0.22G-CS100-SP2T-NKSK | SP2T | 0.1-0.22 | 1.5 | 0.6 | 40 | 100 | 5μs | +24V/300mA | TTL |
| AO0.1G8.5G-CS1--SP2T-SKK | SP2T | 0.1-8.5 | 1.5 | 5.0 | 40 | 1 | 1μs | +5V/200mA | TTL |
| AO0.1G18G-CS1-SP2T-SKK | SP2T | 0.1-18 | 2.0 | 4.0 | 80dB@0.1-12GHz 70dB@12-18GHz | 1 | 200ns | +5V/200mA | TTL |
| AO0.4G6G-CS2-SP2T-SKK | SP2T | 0.4-6 | 1.5 | 2.0 | 80 | 2 | 200ns | +5V/100mA | TTL |
| AO0.4G8G-CS2-SP2T-SKK | SP2T | 0.4-8 | 1.5 | 2.5 | 80 | 2 | 200ns | +5V/100mA | TTL |
| AO0.4G8G-CS2-SP2T-SKK | SP2T | 0.4-8 | 1.5 | 2.5 | 80 | 2 | 200ns | +5V/100mA | TTL |
| AO0.4G12G-CS1-SP2T-SKK | SP2T | 0.4-12 | 1.7 | 2.5dB@0.4-8GHz 3.0dB@8-12GHz | 80dB@0.4-8GHz | 1 | 200ns | +5V/200mA | TTL |
| AO0.4G18G-CS1-SP2T-SKK | SP2T | 0.4-18 | 1.8 | 3.8 | 80 | 1 | 150ns | +5V/100mA | TTL |
| AO0.5G9G-CS2--SP2T-SKK | SP2T | 0.5-9 | 1.5 | 3.0 | 80 | 2 | 200ns | +5V/100mA | TTL |
| AO0.5G40G-CS0.2-SP2T-2.92KK | SP2T | 0.5-40 | 2.5 | 5.5 | 60 | 0 | 150ns | +5V/100mA | TTL |
| AO0.8G1.6G-CS100-SP2T-SKK | SP2T | 0.8-1.6 | 1.5 | 1.0 | 50 | 100 | 2μs | +5V/500mA | TTL |
| AO0.9G2G-CS100-SP2T-SKK | SP2T | 0.9-2 | 1.5 | 1.0 | 50 | 100 | 2μs | +5V/500mA | TTL |
| AO2G3G-CS10-SP2T-SKK | SP2T | 2-3 | 1.5 | 1.0 | 40 | 10 | 200ns | +5V/100mA | TTL |
| AO0.4G6G-CS2-SP3T-SKK | SP3T | 0.4-6 | 1.5 | 2.0 | 80 | 2 | 200ns | +5V/150mA | TTL |
| AO0.4G8G-CS2-SP3T-SKK | SP3T | 0.4-8 | 1.5 | 2.8 | 80 | 2 | 200ns | +5V/150mA | TTL |
| AO0.4G12G-CS0.5-SP3T-SKK | SP3T | 0.4-12 | 1.6 | 4.0 | 80dB@0.4-8GHz 70dB@8-12GHz | 1 | 200ns | +5V/150mA | TTL |
| AO1.6G2.3G-CS100-SP3T-SKK | SP3T | 1.6-2.3 | 1.5 | 1.0 | 40 | 100 | 2μs | +5V/500mA | TTL |
| AO0.001G8G-CS0.2-SP4T-SKK | SP4T | 0.001-8 | 1.5 | 4.0 | 50 | 0 | 10μs | +5V/400mA | TTL |
| AO0.05G20G-CS0.2-SP4T-SKK | SP4T | 0.05-20 | 2.0 | 3.0dB@DC-6GHz 3.5dB@6GHz-12GHz 4.0dB@12GHz-20GHz | 80dB@DC-6GHz 70dB@6GHz-12GHz 60dB@12GHz-20GHz | 0 | 150ns | +5V/100mA | TTL |
| AO0.1G8G-CS0.2-SP4T-SKK | SP4T | 0.1-8 | 1.5 | 5.5 | 70 | 0 | 500ns | +5V/400mA | TTL |
| AO0.35G40G-CS0.2-SP4T-2.92KK | SP4T | 0.35-40 | 3.0 | 6.5 | 50 | 0 | 200ns | +5V/200mA | TTL |
| AO0.4G6G-CS2-SP4T-SKK | SP4T | 0.4-6 | 1.5 | 2.0 | 80 | 2 | 200ns | +5V/200mA | TTL |
| AO0.4G8G-CS2-SP4T-SKK | SP4T | 0.4-8 | 1.5 | 2.8 | 80 | 2 | 200ns | +5V/200mA | TTL |
| AO0.4G8G-CS2-SP4T-SKK | SP4T | 0.4-8 | 1.5 | 3.5 | 80 | 2 | 200ns | +5V/100mA | TTL |
| AO0.4G8.5G-CS2-SP4T-SKK | SP4T | 0.4-8.5 | 1.5 | 3.5 | 80 | 2 | 200ns | +5V/100mA | TTL |
| AO0.4G18G-CS1-SP4T-SKK | SP4T | 0.4-18 | 2.0 | 4.0 | 80 | 1 | 150ns | +5V/300mA | TTL |
| AO0.8G2.7G-CS2-SP4T-SKK | SP4T | 0.8-2.7 | 1.5 | 1.6 | 70 | 2 | 200ns | +5V/200mA | TTL |
| AO0.4G6G-CS2-SP6T-SKK | SP6T | 0.4-6 | 1.6 | 3.0 | 120 | 2 | 200ns | +5V/300mA | TTL |
| AO0.4G8G-CS2-SP6T-SKK | SP6T | 0.4-8 | 1.5 | 3.5 | 80 | 2 | 200ns | +5V/250mA | TTL |
| AO0.4G12G-CS1-SP6T-SKK | SP6T | 0.4-12 | 1.5 | 4.0 | 80 | 1 | 200ns | +5V/250mA | TTL |
| AO0.01G10G-CS0.16-SP8T-SKK | SP8T | 0.01-10 | 1.5 | 3.0dB@10MHz-6GHz 4.5dB@6GHz-10GHz | 40 | 0 | 100ns | +5V/400mA | TTL |
| AO0.1G8G-CS2-SP8T-SKK | SP8T | 0.1-8 | 1.6 | 4.5 | 80 | 2 | 300ns | +5V/300mA | TTL |
| AO0.4G4G-CS50-SP8T-SKK | SP8T | 0.4-4 | 1.6 | 2.2 | 20 | 50 | 6us | +5V/100mA | TTL |
| AO0.4G6G-CS2-SP8T-SKK | SP8T | 0.4-6 | 1.6 | 3.0 | 120 | 2 | 200ns | +5V/500mA | TTL |
| AO0.4G6G-CS2-SP8T-SKK-2 | SP8T | 0.4-6 | 1.6 | 3.5 | 120 | 2 | 200ns | +5V/350mA | TTL |
| AO0.4G6G-CS20-SP8T-SKK | SP8T | 0.4-6 | 1.6 | 4.5 | 30 | 20 | 1us | +5V/100mA | TTL |
| AO0.4G8G-CS2-SP8T-SKK | SP8T | 0.4-8 | 1.6 | 4.2 | 80 | 2 | 200ns | +5V/300mA | TTL |
| AO0.4G8.5G-CS2-SP8T-SKK | SP8T | 0.4-8.5 | 1.6 | 5.0 | 120 | 2 | 200ns | +5V/300mA | TTL |
| AO0.4G12G-CS0.25-SP8T-SKK | SP8T | 0.4-12 | 1.8 | 4.5 | 80 | 0 | 150ns | +5V/400mA | TTL |
| AO0.4G13G-CS1-SP8T-SKK | SP8T | 0.4-13 | 1.6 | 5.0 | 110 | 1 | 300ns | +5V/500mA | TTL |
| AO0.4G18G-CS0.25-SP8T-SKK | SP8T | 0.4-18 | 2.0 | 5.5 | 80 | 0 | 150ns | +5V/400mA | TTL |
| AO0.4G40G-CS0.2-SP8T-2.92KK | SP8T | 0.4-40 | 3.0 | 9.0 | 50 | 0 | 150ns | +5V/200mA | TTL |
| AO0.8G2.7G-CS2-SP8T-SKK | SP8T | 0.8-2.7 | 1.5 | 1.6 | 70 | 2 | 200ns | +5V/300mA | TTL |
| AO4G6G-CS50-SP8T-SKK | SP8T | 4-6 | 1.6 | 2.5 | 20 | 50 | 4us | +5V/100mA | TTL |
| AO7.7G8.6G-CS10-SP8T-SKK | SP8T | 7.7-8.6 | 1.5 | 1.5 | 25 | 10 | 500ns | +6V/500mA | CMOS |
| AO0.4G6G-CS2-SP9T-SKK | SP9T | 0.4-6 | 1.6 | 3.0 | 80 | 2 | 200ns | +5V/350mA | TTL |
| AO0.4G6G-CS1-SP10T-SKK | SP10T | 0.4-6 | 1.6 | 3.5 | 80 | 1 | 200ns | +5V/500mA | TTL |
| AO0.4G8G-CS1-SP10T-SKK | SP10T | 0.4-8 | 1.6 | 4.0 | 80 | 1 | 200ns | +5V/500mA | TTL |
| AO0.4G12G-CS2-SP12T-SKK | SP12T | 0.4-12 | 1.6 | 5.0 | 80 | 2 | 200ns | +5V/550mA | TTL |
| AO0.4G6G-CS2-SP12T-SKK | SP12T | 0.4-6 | 1.6 | 3.0 | 80 | 2 | 200ns | +5V/520mA | TTL |
| AO0.4G8G-CS2-SP12T-SKK | SP12T | 0.4-8 | 1.6 | 4.0 | 80 | 2 | 200ns | +5V/550mA | TTL |
| AO0.4G18G-CS0.25-SP12T-SKK | SP12T | 0.4-18 | 2.0 | 7.5 | 80 | 0 | 200ns | +5V/550mA | TTL |
| AO0.4G6G-CS2-SP16T-SKK | SP16T | 0.4-6 | 1.6 | 4.0 | 80 | 2 | 200ns | +5V/800mA | TTL |
| AO0.4G8G-CS2-SP16T-SKK | SP16T | 0.4-8 | 1.6 | 5.0 | 80 | 2 | 200ns | +5V/800mA | TTL |
| AO0.4G18G-CS0.25-SP16T-SKK | SP16T | 0.4-18 | 2.0 | 7.5 | 80 | 0 | 150ns | +5V/800mA | TTL |
| AO0.5G40G-CS0.16-SP16T-2.92KK | SP16T | 0.5-40 | 2.5 | 12.5 | 60 | 0 | 200ns | +5V/800mA | TTL |
| AO0.4G6G-CS1-SP22T-SKK | SP22T | 0.4-6 | 1.5 | 5.0 | 80 | 1 | 300ns | +5V/500mA | TTL |
| AO0.3G12G-CS1-SP24T-SKK | SP24T | 0.3-12 | 1.8 | 9.0 | 80 | 1 | 200ns | +5V/1A | TTL |
| AO0.4G6G-CS2-SP24T-SKK | SP24T | 0.4-6 | 1.6 | 4.0 | 80 | 2 | 200ns | +5V/900mA | TTL |
| AO0.4G8.5G-CS2-SP24T-SKK | SP24T | 0.4-8.5 | 1.6 | 7.0 | 80 | 2 | 200ns | +5V/900mA | TTL |
| AO0.5G8G-CS2-SP32T-SKK | SP32T | 0.5-8 | 1.6 | 6.0 | 80 | 2 | 200us | +5V/2.6A | TTL |
| AO0.4G18G-CS0.25-SP40T-SKK | SP40T | 0.4-18 | 2.0 | 9.5 | 80 | 0 | 200ns | +5V/1.8A | TTL |
| AO0.108G0.118G-CS20-DPDT-TNCJK | DPDT | 0.108-0.118 | 1.3 | 0.8 | 60 | 20 | 5us | +5V/1A | TTL |
| AO0.2G5G-CS20-DPDT-SKK | DPDT | 0.2-5 | 1.5 | 1.2dB@0.2-3GHz 2.5dB@3-5GHz | 40 | 20 | 1us | +5V/500mA | TTL |
| AO0.4G6G-CS2-DPDT-SKK | DPDT | 0.4-6 | 1.6 | 2.5 | 70 | 2 | 200ns | +5V/100mA | TTL |
| AO0.4G8G-CS2-DPDT-SKK | DPDT | 0.4-8 | 1.6 | 3.0 | 70dB@0.4-7.5GHz 60dB@7.5-8.0GHz | 2 | 200ns | +5V/100mA | TTL |
| AO0.4G8.5G-CS2-DPDT-SKK | DPDT | 0.4-8.5 | 1.6 | 2.5 | 70dB@0.4-7.5GHz 55dB@7.5-8.5GHz | 2 | 200ns | +5V/100mA | TTL |
| AO0.4G12G-CS2-DPDT-SKK | DPDT | 0.4-12 | 1.6 | 3.5 | 70 | 2 | 150ns | +5V/300mA | TTL |
| AO0.5G6G-CS2-DP8T-SKK | DP8T | 0.5-6 | 1.8 | 7.5 | 120 | 2 | 200ns | +5V/700mA | TTL |
| AO0.5G6G-CS2-DP8T-SKK | DP8T | 0.5-6 | 1.8 | 7.5 | 120 | 2 | 200ns | +5V/700mA | TTL |
| AO0.5G8G-CS2-DP8T-SKK | DP8T | 0.5-8 | 1.8 | 10.0 | 110 | 2 | 200ns | +5V/700mA | TTL |
| AO0.5G8G-CS2-DP8T-SKK | DP8T | 0.5-8 | 1.8 | 10.0 | 110 | 2 | 200ns | +5V/700mA | TTL |
| AO2G10.6G-CS1-DP8T-SKK | DP8T | 2-10.6 | 1.8 | 8.5 | 120 | 1 | 300ns | +5V/1.5A | TTL |
| AO0.5G6G-CS2-DP12T-SKK | DP12T | 0.5-6 | 2.0 | 7.0 | 80 | 2 | 1ms | +220V/5A | RS232 |
| AO0.4G8G-CS1-DP16T-SKK | DP16T | 0.4-8 | 1.7 | 9.0 | 80 | 1 | 300ns | +5V/1.8A | TTL |
| AO0.4G5G-CS1-DP24T-SKK | DP24T | 0.4-5 | 1.8 | 10.0 | 80 | 1 | 200ns | +5V/5A | TTL |
| AO0.5G8G-CS2-DP32T-SKK | DP32T | 0.5-8 | 1.8 | 10.0 | 80 | 2 | 200ns | +5V/2.6A | TTL |
| AO0.4G8G-CS1-4P8T-SKK | 4P8T | 0.4-8 | 1.7 | 12.0 | 80 | 1 | 300ns | +5V/1.5A | TTL |
| AO0.6G7.5G-CS1-4P24T-SKK | 4P24T | 0.6-7.5 | 1.8 | 13dB@0.6 GHz-6GHz 15dB@6GHz-7.5GHz | 80 | 1 | 200ns | +5V/5A | TTL |
| AO0.6G8G-CS2-4P24T-SKK | 4P24T | 0.6-8 | 1.8 | 13dB@0.6 GHz-6GHz 15dB@6GHz-8GHz | 80 | 2 | 200ns | +5V/5A | TTL |
