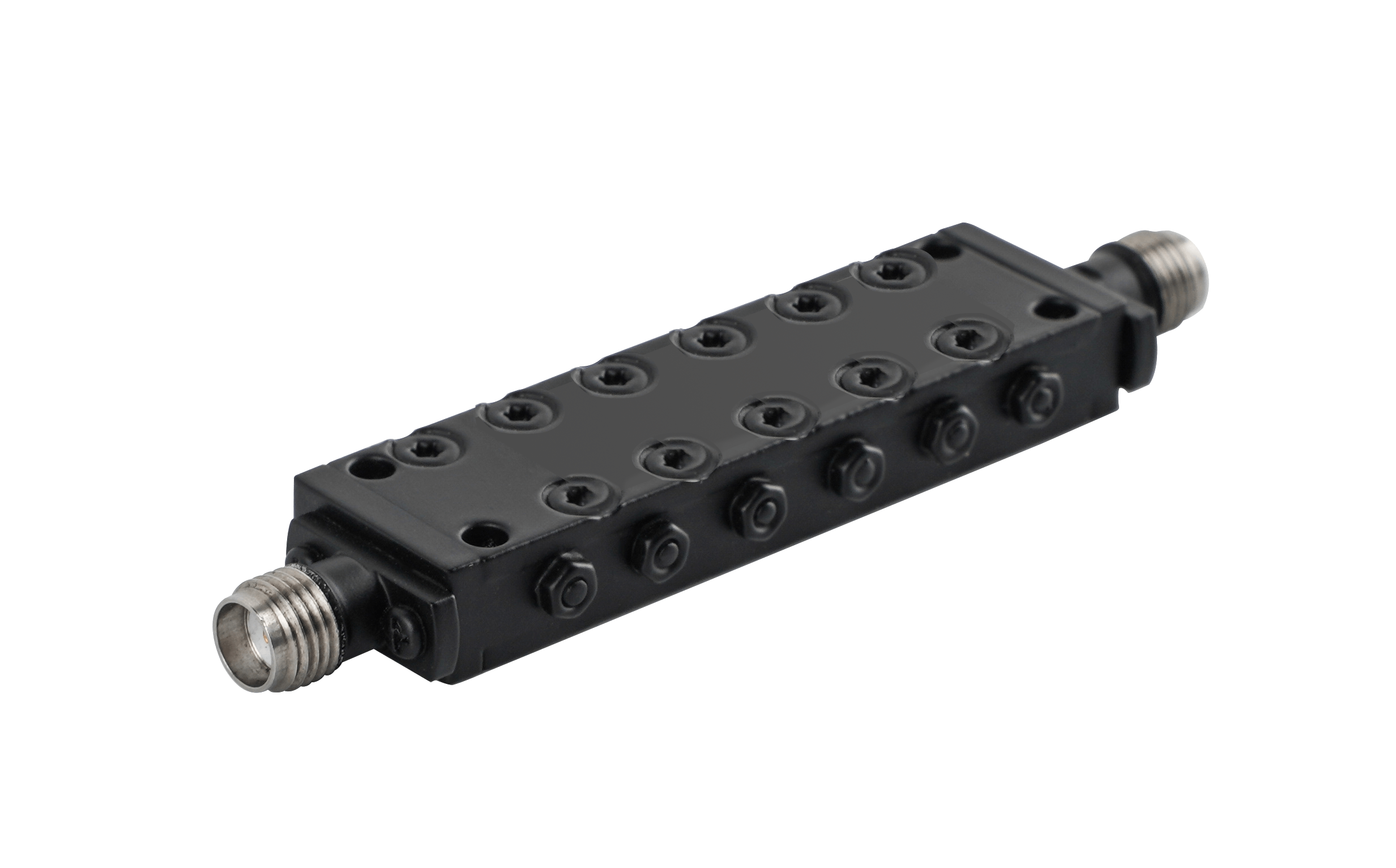

Coaxial Band Pass Filter

Coaxial Band Pass Filter offers precise frequency selection by allowing signals within a designated band to pass while attenuating frequencies outside the range. Engineered for low insertion loss and high power handling, it is customizable to meet diverse communication, radar, and microwave system requirements, ensuring reliable and efficient signal filtering.
Description Package Information Inquiry
Part NoFrequency/GHzCenter Frequency/GHzVSWR (Max)IL/dB (Max)Stopband Rejection/dB (Min)
AO62.5M77.5M-CBPF-SK0.0625-0.07750.071.50 2.0  40@DC-50MHz
 40@90-500MHz
AO140M232M-CBPF-SK0.14-0.2320.1861.40 2.5  40@DC-125MHz
 40@260-600MHz
AO703M748M-CBPF-SK0.703-0.7480.72551.50 5.0  40@758MHz
AO758M803M-CBPF-SK0.758-0.8030.78051.50 3.0  60@2F0GHz
 50@3F0GHz
AO791M821M-CBPF-SK0.791-0.8210.8061.50 3.0   60@2F0GHz
 50@3F0GHz
AO814M849M-CBPF-SK0.814-0.8490.83151.50 5.0  40@859MHz
AO0.85G1.55G-CBPF-SK0.85-1.551.21.50 3.0  60@DC-500MHz
 45@2-3GHz
AO880M915M-CBPF-SK0.88-0.9150.8971.50 4.0  40@925MHz
AO1.1G1.67G-CBPF5-SK1.1-1.671.3851.80 1.5  80@DC-1GHz
 20@1.7GHz
AO1.3G2.43G-CBPF-SK1.3-2.431.8651.70 1.5  70@DC-1GHz
 50@2.8GHz
AO1.71G1.785G-CBPF-SK1.71-1.7851.74751.50 4.5  50@1.805GHz
AO1.805G1.88G-CBPF-SK1.805-1.881.84251.50 2.5  60@2F0GHz
 50@3F0GHz
AO1.85G1.915G-CBPF-SK1.85-1.9151.88251.50 5.0  40@1.93GHz
AO1.92G2.01G-CBPF-SK1.92-2.011.9651.50 3.0  60@2.11GHz
AO1.93G1.995G-CBPF-SK1.93-1.9951.96251.50 3.0  60@2F0GHz
 50@3F0GHz
AO2.099G2.101G-CBPF-SK2.099-2.1012.11.30 5.0  50@DC-2.085GHz
 50@2.115GHz
AO2.11G2.2G-CBPF-SK2.11-2.22.1551.50 3.0  60@2F0GHz
 50@3F0GHz
AO2G3.8G-CBPF-SK2-3.82.92.00 2.5  20@1.85GHz
 20@3.95GHz
AO2G18G-CBPF-SK2-18101.80 3.5  30@18.75GHz
 50@19-40GHz
AO2.5G4G-CBPF-SK2.5-43.251.70 1.0  65@DC-2.2GHz
 55@4.3-8GHz
AO3.2G4.5G-CBPF-SK3.2-4.53.851.50 0.5  60@DC-2.4GHz
 50@5.5GHz
AO3G5G-CBPF-SK3-541.70 1.0  40@DC-2.5GHz
 40@5.5GHz
AO3.7G4.5G-CBPF-SK3.7-4.54.11.80 1.0  50@DC-3.15GHz
 50@5.05GHz
AO4G6G-CBPF-SK4-651.50 0.8  60@DC-3.2GHz
 55@7GHz
AO4G6G-CBPF-SK-A24-651.50 0.7  60@DC-3.2GHz
  60@6.5-12GHz
AO4G8G-CBPF-SK4-861.50 0.8  75@DC-3.5GHz
 65@8.5GHz
AO4.9G8G-CBPF-SK4.9-86.451.70 1.5  40@3.9GHz
 65@12.8-15GHz
AO6G8.5G-CBPF-SK6-8.57.251.80 1.3  60@DC-5.2GHz
 60@9.5GHz
AO6G12G-CBPF-SK6-1291.70 1.0  30@DC-5.5GHz
 35@13-20GHz
AO6.8G10.65G-CBPF-SK6.8-10.658.7251.50 1.0  60@DC-6.4GHz
 25@10.85GHz
AO7G9G-CBPF-SK7-981.70 1.0  40@DC-6.5GHz
 40@9.5GHz
AO7.5G12.5G-CBPF-SK7.5-12.5101.70 1.0  45@DC-6.5GHz
 55@14GHz
AO8G16G-CBPF-SK8-16121.60 0.7  80@DC-6.5GHz
 50@17.5GHz
AO9G12G-CBPF-SK9-1210.51.50 0.8  40@DC-8.5GHz
 30@12.5GHz
AO8.5G10.65G-CBPF-SK8.5-10.659.5751.50 1.0  80@DC-6.5GHz
 52@10.85GHz
AO9G12G-CBPF-SK9-1210.51.50 0.8  40@DC-8.5GHz
 30@12.5GHz
AO9G13.25G-CBPF-SK9-13.2511.1251.80 2.0  70@DC-8.4GHz
 30@13.5GHz
AO10G15G-CBPF-SK10-1512.51.50 1.0  60@DC-8GHz
 60@18GHz
AO11G14G-CBPF-SK11-1412.51.70 1.5  40@9.5GHz
 65@15.8-25GHz
AO11.7G13.7G-CBPF-SK11.7-13.712.71.70 0.8  60@DC-10.5GHz
 60@15.2GHz
AO12G15G-CBPF-SK12-1513.51.50 0.8  35@DC-11.5GHz
 30@15.5GHz
AO12G16G-CBPF-SK12-16141.70 1.0  60@DC-10.5GHz
 60@17.5GHz
AO13.2G15.9G-CBPF-SK13.2-15.914.551.50 1.0  50@11.9GHz
 30@16.5GHz
AO13.8G15.2G-CBPF-SK13.8-15.214.151.30 0.8  60@DC-12GHz
 60@17GHz
AO14G18G-CBPF-SK14-18161.80 2.5  50@9.3GHz
 50@23GHz
AO14.5G20G-CBPF-SK14.5-2017.252.00 2.0  60@DC-12GHz
 60@22.5-30GHz
AO14.8G15.8G-CBPF-SK14.8-15.815.31.50 1.0  70@DC-12.4GHz
 70@17.5GHz
AO16G18G-CBPF-SK16-18171.50 1.0  60@DC-15GHz
 60@19GHz
AO16G20G-CBPF-SK16-20181.80 1.0  50@DC-15GHz
AO17G18G-CBPF-SK17-1817.51.40 1.0  70@DC-15.5GHz
 70@19.5GHz
AO17.6G21.5G-CBPF-SK17.6-21.519.551.50 1.0  60@DC-16GHz
 60@22.5-30GHz
AO18G19G-CBPF-SK18-1918.51.40 1.2  65@DC-16.5GHz
 65@20.5GHz
AO18G22G-CBPF-SK18-22202.00 2.5  30@16GHz
 30@24GHz
AO18G26.5G-CBPF-SK18-26.522.251.50 1.5  60@DC-16.5GHz
 60@27GHz
AO18G40G-CBPF-SK18-40292.60 2.0  50@DC-15GHz
AO18.4G18.8G-CBPF-SK18.4-18.818.61.40 1.0  60@DC-17GHz
 40@20GHz
AO19G20.5G-CBPF-SK19-20.519.751.40 1.5  70@DC-17.4GHz
 60@22-41GH
AO19.5G21.2G-CBPF-SK19.5-21.220.351.40 2.0  70@DC-18.3GHz
 60@22-28GHz
AO20G40G-CBPF-2.92K20-40302.40 2.0  60@DC-15GHz
AO20.6G21.6G-CBPF-SK20.6-21.621.11.40 1.0  60@DC-18.3GHz
 60@24GHz
AO21.5G22.5G-CBPF-SK21.5-22.5221.30 2.0  60@DC-20.5GHz
 60@23.5-40GHz
AO24G25G-CBPF-SK24-2524.51.50 3.0  60@DC-23.5GHz
 60@25.5-50GHz
AO24.6G27.6G-CBPF-2.92K24.6-27.626.11.50 3.0  60@DC-22.5GHz
 55@28.5-48GHz
AO24.9G26.6G-CBPF-2.92K24.9-26.625.751.60 2.0  60@DC-24GHz
 55@27.5-48GHz
AO25G26G-CBPF-2.92K25-2625.51.80 3.0  70@DC-23.5GHz
 70@27.5GHz
AO27.75G28.25G-CBPF-2.92K27.75-28.25281.50 2.0  40@DC-27.5GHz
 40@28.5GHz
AO29.196G29.241G-CBPF-2.92K29.196-29.24129.21851.50 2.8  40@DC-29GHz
 40@29.5-40.4GHz
AO29.3G30.3G-CBPF-2.92K29.3-30.329.71.80 3.0  60@DC-28GHz
 60@31.5GHz
AO30G40G-CBPF-2.92K30-40352.00 2.0  75@DC-27GHz
 75@45-55GHz
AO30.2G31G-CBPF-2.92K30.2-3130.61.40 1.0  60@DC-28.5GHz
 60@33.5-48GHz
AO32G35G-CBPF-2.92K32-3533.51.60 1.8  55@DC-31GHz
 50@36-40GHz
AO34G40G-CBPF-2.92K34-40362.00 1.2  50@DC-31GHz
AO35.4G35.6G-CBPF-2.92K35.4-35.635.51.50 4.0  70@DC-34.8GHz
 70 @36.3GHz
AO38.75G39.25G-CBPF-2.92K38.75-39.25281.50 2.5  40@DC-38.3GHz
 40@39.7GHz
