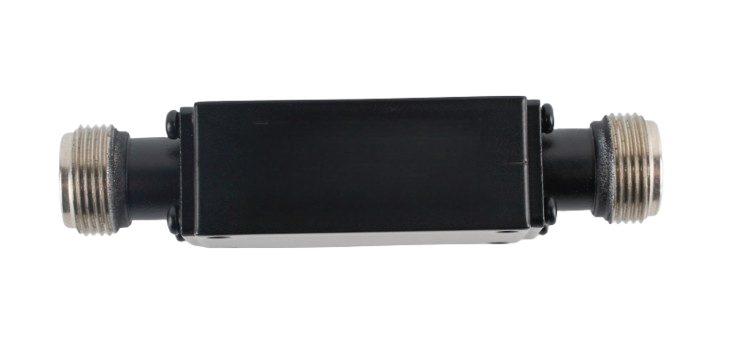

Coaxial Band Stop Filter

Coaxial Band Stop Filter effectively suppresses unwanted signals within a specific frequency range while allowing others to pass with minimal insertion loss. Designed for high rejection and customizable stopband widths, it provides reliable filtering solutions for communication, radar, and electronic systems.

Description Package Information Inquiry

Part No	Frequency/GHz	VSWR (Max)	IL/dB (Max)	Rejection/dB (Min)	Low Passband/GHz	High Passband/GHz
AO0.88G0.96G-CBSF-SK	0.88-0.96	1.50	1.5	20	DC-0.68	0.978-2.3
AO1.53425G1.69875G-CBSF-SK	1.53425-1.69875	1.80	0.8	50	DC-1.2	2.1-4.2
AO2.166G2.394G-CBSF-SK	2.166-2.394	1.80	0.8	50	DC-1.7	2.85-5
AO2.935G3.465G-CBSF-SK	2.935-3.465	1.70	1.0	50	DC-1.9	4.5-7
AO5.225G5.775G-CBSF-SK	5.225-5.775	1.70	1.0	95	DC-4.1	6.9-11.55
AO7.867G7.881G-CBSF-SK	7.867-7.881	2.00	2.0	50	DC-7.72	8.1-12
AO24G24.5G-CBSF-SK	24-24.5	2.00	3.0	40	DC-23.5	25-40
