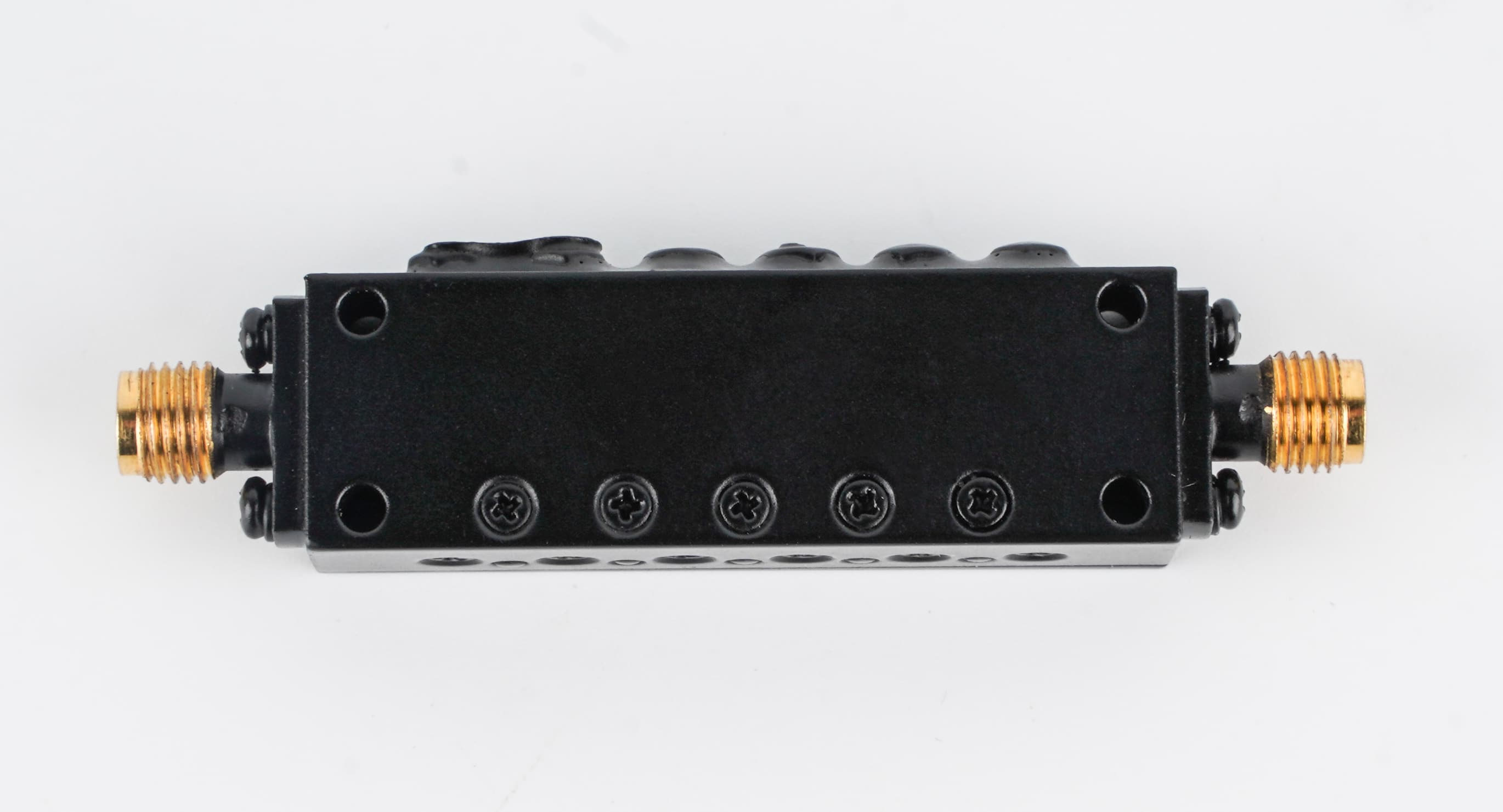

Coaxial Suspension Line Bandpass Filter
Description
Package Information
Inquiry
| Part No | Frequency/GHz | VSWR (Max) | IL/dB (Max) | Stopband Rejection/dB (Min) | Size/mm |
| AO2G6G-CSBPF-SK | 2-6 | 2.00 | 2.0 | 60@DC-1.5GHz 25@6.5-18GHz | 45x20x10 |
| AO2G18G-CSBPF-SK | 2-18 | 2.00 | 2.0 | 60@DC-1.5GHz 40@18.75-40GHz | 70x20x10 |
| AO3G18G-CSBPF-SK | 3-18 | 2.00 | 2.0 | 55@DC-2.3GHz 40@18.75-40GHz | 66x20x10 |
| AO4G12G-CSBPF-SK | 4-12 | 2.00 | 1.0 | 50@DC-3.4GHz 50@14GHz | 54x30x10 |
| AO10G14G-CSBPF-SK | 10-14 | 2.00 | 1.0 | 50@DC-7GHz 50@18.9GHz | 24x13x10 |
| AO14G18G-CSBPF-SK | 14-18 | 2.00 | 2.0 | 50@DC-9.3GHz 40@20GHz | 29x13x10 |
| AO18G22G-CSBPF-SK | 18-22 | 2.00 | 2.0 | 30@DC-16GHz 45@24-30GHz | 29x13x10 |
| AO20G26G-CSBPF-SK | 20-26 | 2.00 | 1.5 | 30@DC-18GHz 40@32GHz | 29x13x10 |
| AO18G35G-CSBPF-2.92K | 18-35 | 2.00 | 3.0 | 50@DC-16GHz 50@43GHz | 28.3x18x10 |
| AO18G41G-CSBPF-2.92K | 18-41 | 2.00 | 3.0 | 50@DC-16GHz 50@43GHz | 28x18x10 |
