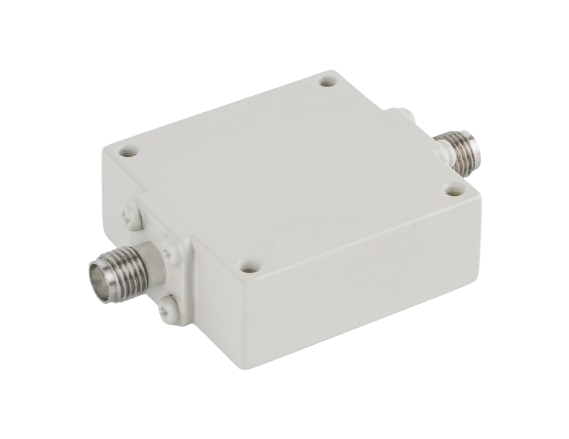

Coaxial Suspension Line High Pass Filter
Coaxial Suspension Line High Pass Filter delivers precise filtering by allowing high-frequency signals to pass while effectively blocking lower frequencies with minimal insertion loss. Designed for robust performance and customizable frequency ranges, it supports reliable operation in communication, radar, and microwave systems.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | VSWR (Max) | IL/dB (Max) | Stopband Rejection/dB (Min) | Size/mm |
| AO1G7G-CSHPF-SK | 1-7 | 1.5 | 1.0 | 45@DC-0.8GHz | 30x24.5x10 |
| AO1G11G-CSHPF-SK | 1-11 | 1.5 | 1.0 | 70@DC-0.7GHz | 30x24.5x10 |
| AO1G12G-CSHPF-SK | 1-12 | 2.0 | 0.8 | 55@DC-0.75GHz | 30x23x10 |
| AO2G10G-CSHPF-SK | 2-10 | 1.5 | 1.0 | 50@DC-1.6GHz | 32x20.5x10 |
| AO2G19G-CSHPF-SK | 2-19 | 2.0 | 1.0 | 55@DC-1.55GHz | 27x20x10 |
| AO2G14.5G-CSHPF-SK | 2-14.5 | 2.0 | 1.2 | 65@DC-1.6GHz | 38x35x10 |
| AO2.5G14G-CSHPF-SK | 2.5-14 | 2.0 | 1.0 | 60@DC-2.1GHz | 46x34x10 |
| AO2.8G10G-CSHPF-SK | 2.8-10 | 2.0 | 1.0 | 60@DC-2.1GHz | 34x33x10 |
| AO3G18G-CSHPF-SK | 3-18 | 1.7 | 1.0 | 60@DC-2.5GHz | 32x17.5x10 |
| AO3G24G-CSHPF-SK | 3-24 | 2.0 | 1.0 | 50@DC-2.35GHz | 24x16x10 |
| AO3.55G18G-CSHPF-SK | 3.55-18 | 2.0 | 1.5 | 60@DC-2.8GHz | 32x18x10 |
| AO3.8G15G-CSHPF-SK | 3.8-15 | 2.0 | 1.0 | 25@DC-3.4GHz | 32x28x10 |
| AO4G20G-CSHPF-SK | 4-20 | 2.0 | 1.0 | 50@DC-3.4GHz | 24x18x10 |
| AO4.3G18G-CSHPF-SK | 4.3-18 | 2.0 | 1.2 | 30@DC-3.8GHz | 24x18x18 |
| AO5G18G-CSHPF-SK | 5-18 | 2.0 | 1.0 | 50@DC-4.2GHz | 25x26x10 |
| AO5.5G18G-CSHPF-SK | 5.5-18 | 2.0 | 2.0 | 50@DC-3.5GHz | 26x29x10 |
| AO6G18G-CSHPF-SK | 6-18 | 2.0 | 1.0 | 50@DC-5.1GHz | 26x26x10 |
| AO6G18G-CSHPF-SK-A2 | 6-18 | 2.0 | 1.5 | 60@DC-5.1GHz | 26x26x10 |
| AO6G18G-CSHPF-SK-C2 | 6-18 | 2.0 | 2.0 | 55@DC-5.4GHz | 26x28x10 |
| AO7G18G-CSHPF-SK-C1 | 7-18 | 2.0 | 1.0 | 50@DC-6GHz | 26x24x10 |
| AO7G18G-CSHPF-SK-C2 | 7-18 | 2.0 | 1.5 | 30@DC-6.425GHz | 26x24x18 |
| AO7.5G18G-CSHPF-SK | 7.5-18 | 2.0 | 1.5 | 50@DC-6.9GHz | 25x30x10 |
| AO7.625G18G-CSHPF-SK | 7.625-18 | 2.0 | 1.2 | 30@DC-7.125GHz | 25x30x10 |
| AO8G18G-CSHPF-SK | 8-18 | 2.0 | 1.0 | 50@DC-6.5GHz | 21x26x10 |
| AO9G18G-CSHPF-SK | 9-18 | 2.0 | 1.5 | 50@DC-7.8GHz | 23x26x10 |
| AO10G18G-CSHPF-SK | 10-18 | 2.0 | 1.0 | 50@DC-5.85GHz | 20x16x10 |
| AO10G40G-CSHPF-2.92K | 10-40 | 2.0 | 1.5 | 60@DC-5GHz | 20x16x10 |
| AO12G18G-CSHPF-SK | 12-18 | 2.0 | 1.0 | 60@DC-10.5GHz | 27.5x26x10 |
| AO18G40G-CSHPF-2.92K | 18-40 | 2.0 | 2.7 | 25@DC-17GHz | 20x13x10 |
| AO26G50G-CSHPF-2.4K | 26-50 | 2.0 | 2.5 | 45@DC-23GHz | 20x15x12.7 |
| AO30G50G-CSHPF-2.4K | 30-50 | 2.0 | 2.5 | 35@DC-28GHz | 13.2x15x12.7 |
