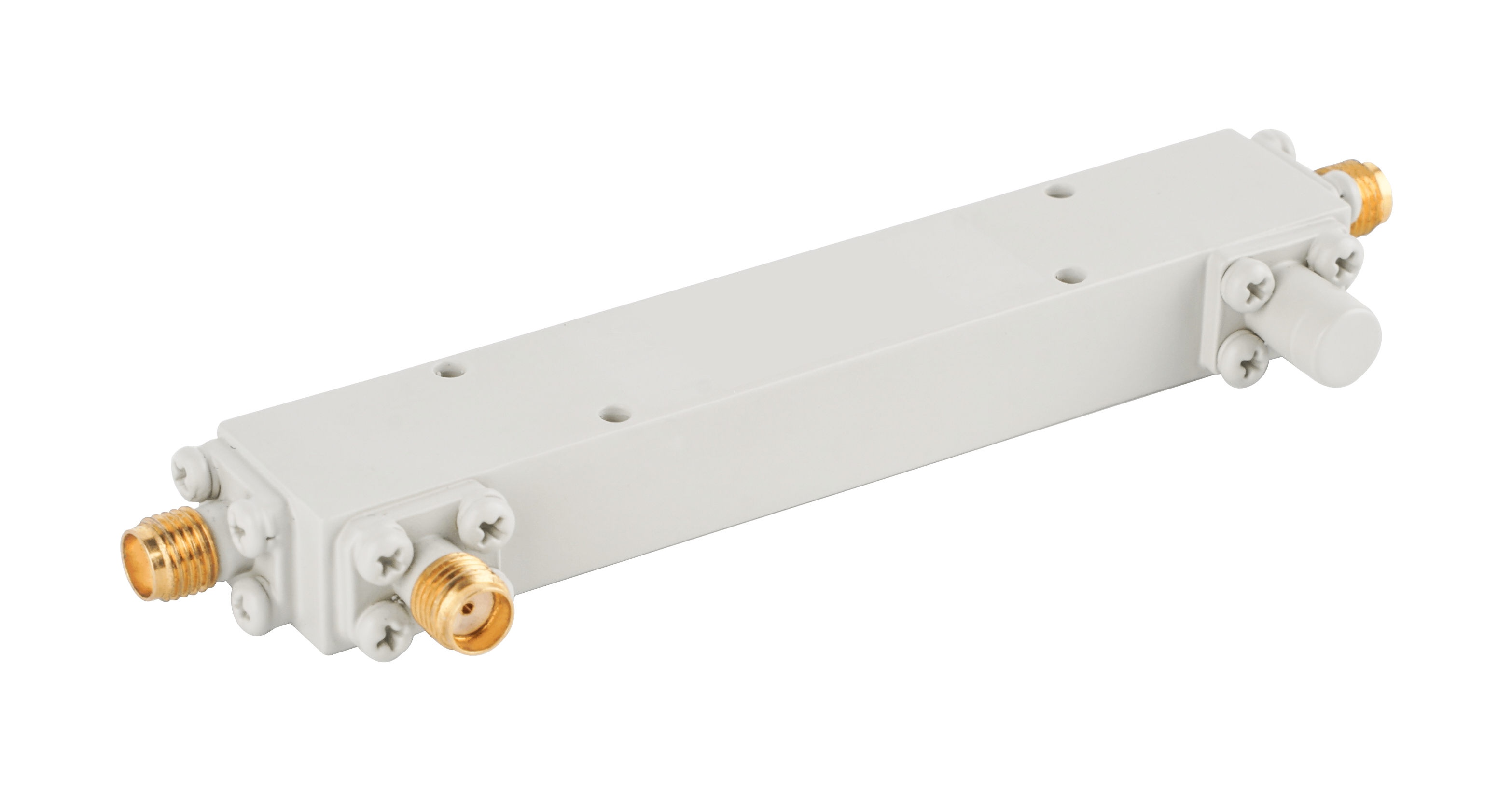

Coaxial Coupler
Coaxial Coupler provides accurate signal sampling with low insertion loss and high directivity, enabling effective monitoring and measurement in RF and microwave systems. Designed for various frequency bands and customizable configurations, it helps customers achieve precise signal control and system optimization.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | VSWR (Max) | IL/dB (Max) | Coupling/dB | Directivity/dB (Min) | Connector Type |
| AO0.5G2.5G-CC-6-SK | 0.5-2.5 | 1.20 | 0.50 | 6±1 | 20 | SMA Female |
| AO0.8G2.5G-CC-6-SK | 0.8-2.5 | 1.20 | 0.50 | 6±1 | 20 | SMA Female |
| AO1G4G-CC-6-SK | 1-4 | 1.20 | 0.50 | 6±1 | 20 | SMA Female |
| AO2G8G-CC-6-SK | 2-8 | 1.50 | 0.50 | 6±1 | 20 | SMA Female |
| AO6G8G-CC-6-SK | 6-8 | 1.50 | 1.00 | 6±1 | 15 | SMA Female |
| AO0.5G2.5G-CC-10-SK | 0.5-2.5 | 1.20 | 0.50 | 10±1 | 20 | SMA Female |
| AO0.5G6G-CC-10-SK | 0.5-6 | 1.20 | 0.70 | 10±1 | 18 | SMA Female |
| AO0.5G18G-CC-10-SK | 0.5-18 | 1.60 | 1.60 | 10±1 | 10 | SMA Female |
| AO0.8G2.5G-CC-10-SK | 0.8-2.5 | 1.20 | 0.50 | 10±1 | 20 | SMA Female |
| AO1G18G-CC-10-SK | 1-18 | 1.60 | 1.20 | 10±1 | 12 | SMA Female |
| AO2G8G-CC-10-SK | 2-8 | 1.20 | 0.50 | 10±1 | 20 | SMA Female |
| AO2G18G-CC-10-SK | 2-18 | 1.50 | 0.70 | 10±1 | 12 | SMA Female |
| AO4G8G-CC-10-SK | 4-8 | 1.20 | 0.60 | 10±1 | 20 | SMA Female |
| AO6G18G-CC-10-SK | 6-18 | 1.50 | 1.00 | 10±1 | 12 | SMA Female |
| AO0.5G2.5G-CC-20-SK | 0.5-2.5 | 1.20 | 0.40 | 20±1 | 20 | SMA Female |
| AO0.5G6G-CC-20-SK | 0.5-6 | 1.25 | 0.60 | 20±1 | 18 | SMA Female |
| AO0.5G8G-CC-20-SK | 0.5-8 | 1.30 | 0.80 | 20±1 | 14 | SMA Female |
| AO0.5G18G-CC-20-SK | 0.5-18 | 1.60 | 1.50 | 20±1 | 10 | SMA Female |
| AO0.8G2.5G-CC-20-SK | 0.8-2.5 | 1.30 | 0.50 | 20±1 | 18 | SMA Female |
| AO1G4G-CC-20-SK | 1-4 | 1.20 | 0.40 | 20±1 | 20 | SMA Female |
| AO2G8G-CC-20-SK | 2-8 | 1.20 | 0.40 | 20±1 | 20 | SMA Female |
| AO2G18G-CC-20-SK | 2-18 | 1.50 | 0.70 | 20±1 | 12 | SMA Female |
| AO6G18G-CC-20-SK | 6-18 | 1.50 | 0.60 | 20±1 | 12 | SMA Female |
| AO0.5G2.5G-CC-30-SK | 0.5-2.5 | 1.20 | 0.40 | 30±1 | 20 | SMA Female |
| AO0.5G6G-CC-30-SK | 0.5-6 | 1.40 | 0.70 | 30±1 | 12 | SMA Female |
| AO0.5G18G-CC-30-SK | 0.5-18 | 1.60 | 1.20 | 30±1 | 10 | SMA Female |
| AO0.8G2.5G-CC-30-SK | 0.8-2.5 | 1.20 | 0.40 | 30±1 | 20 | SMA Female |
| AO1G4G-CC-30-SK | 1-4 | 1.20 | 0.40 | 30±1 | 20 | SMA Female |
| AO1G18G-CC-30-SK | 1-18 | 1.60 | 1.00 | 30±1 | 12 | SMA Female |
| AO2G8G-CC-30-SK | 2-8 | 1.20 | 0.40 | 30±1 | 20 | SMA Female |
| AO2G18G-CC-30-SK | 2-18 | 1.50 | 0.70 | 30±1 | 10 | SMA Female |
| AO1G40G-CC-10-2.92K | 1-40 | 1.80 | 2.50 | 10±1.5 | 10 | 2.92mm Female |
| AO1G50G-CC-10-2.4K | 1-50 | 1.90 | 3.50 | 10±1.5 | 8 | 2.4mm Female |
| AO2G40G-CC-10-2.92K | 2-40 | 1.80 | 2.20 | 10±1.5 | 10 | 2.92mm Female |
| AO2G50G-CC-10-2.4K | 2-50 | 1.90 | 2.00 | 10±1.0 | 8 | 2.4mm Female |
| AO6G40G-CC-10-2.92K | 6-40 | 1.60 | 1.60 | 10±1.0 | 10 | 2.92mm Female |
| AO1G40G-CC-20-2.92K | 1-40 | 1.60 | 2.20 | 20±1.5 | 10 | 2.92mm Female |
| AO1G50G-CC-20-2.4K | 1-50 | 1.90 | 3.50 | 20±1.5 | 5 | 2.4mm Female |
| AO2G40G-CC-20-2.92K | 2-40 | 1.60 | 2.00 | 20±1.5 | 10 | 2.92mm Female |
| AO8G40G-CC-20-2.92K | 8-40 | 1.60 | 1.30 | 20±1.0 | 10 | 2.92mm Female |
| AO1G40G-CC-30-2.92K | 1-40 | 1.60 | 2.00 | 30±1.5 | 10 | 2.92mm Female |
| AO2G40G-CC-30-2.92K | 2-40 | 1.60 | 2.00 | 30±1.5 | 10 | 2.92mm Female |
| AO8G40G-CC-30-2.92K | 8-40 | 1.60 | 1.30 | 30±1.0 | 10 | 2.92mm Female |
