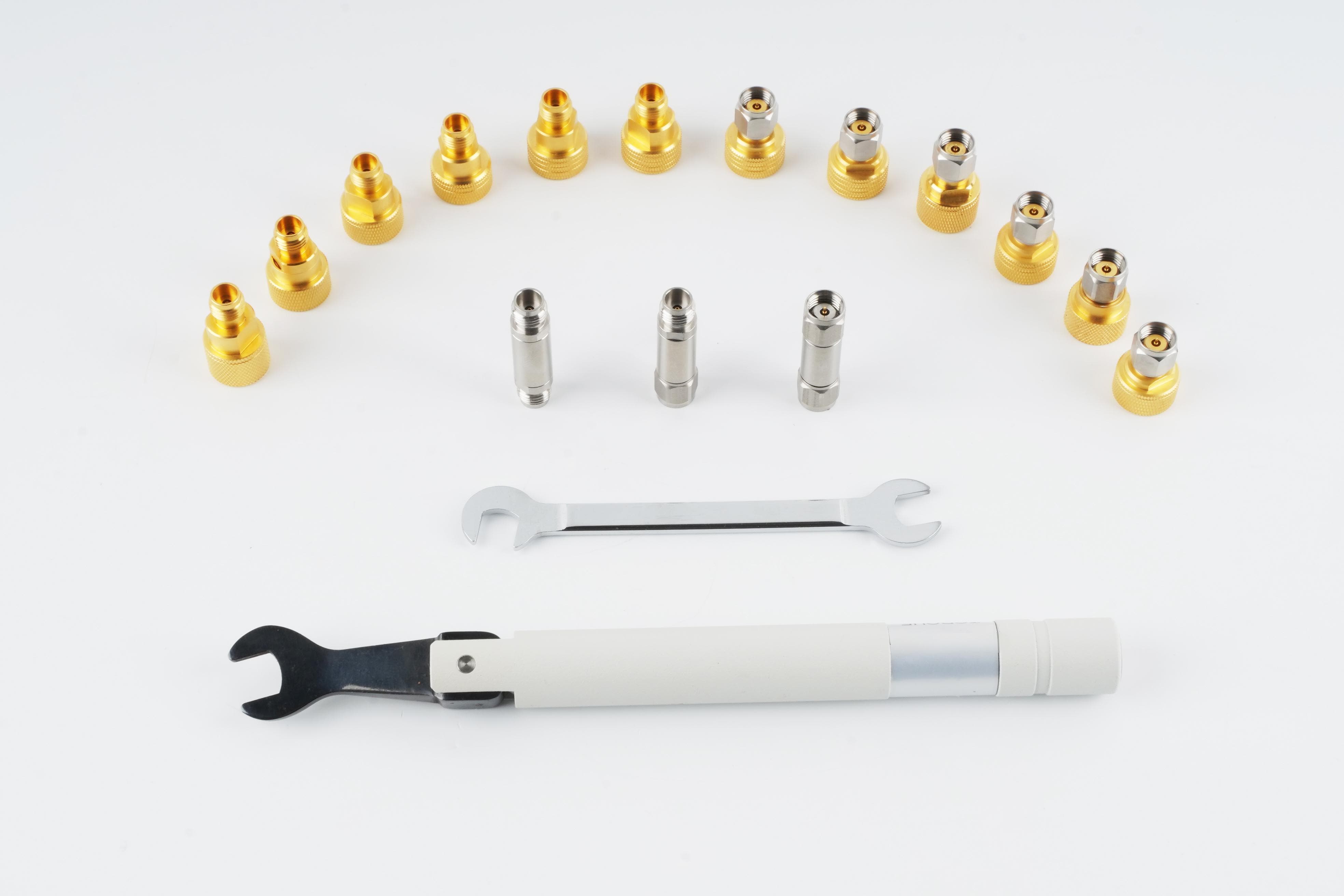

Coaxial Calibration Kits
Description
Package Information
Inquiry
| Part No | Frequency | Electrical Parameters | Components List |
| AO6G-VNACK3.5 | DC-6 GHz | Coaxial Open Circuit:±0.85° Coaxial Short Circuit: ±0.55° Termination: ＜1.029 Coaxial Adapter: ＜1.04 | 3.5 Male Open Circuit 1pc 3.5 Female Open Circuit 1pc 3.5 Male Short Circuit 1pc 3.5 Female Short Circuit 1pc 3.5 Male Termination 1pc 3.5 Female Termination 1pc 3.5 Female to 3.5 Female Adapter 1pc 3.5 Male to 3.5 Male Adapter 1pc 3.5 Male to 3.5 Female Adapter 1pc N Male to 3.5 Male Adapter 1pc N Male to 3.5 Female Adapter 1pc N Female to 3.5 Male Adapter 1pc N Female to 3.5 Female Adapter 1pc 3.5 Torque Spanner 1pc |
| AO9G-VNACK3.5 | DC-9 GHz | Coaxial Open Circuit:±1.0° Coaxial Short Circuit: ±0.85° Termination: ＜1.029 Coaxial Adapter: ＜1.052 | 3.5 Male Open Circuit 1pc 3.5 Female Open Circuit 1pc 3.5 Male Short Circuit 1pc 3.5 Female Short Circuit 1pc 3.5 Male Termination 1pc 3.5 Female Termination 1pc 3.5 Female to 3.5 Female Adapter 1pc 3.5 Male to 3.5 Male Adapter 1pc 3.5 Male to 3.5 Female Adapter 1pc N Male to 3.5 Male Adapter 1pc N Male to 3.5 Female Adapter 1pc N Female to 3.5 Male Adapter 1pc N Female to 3.5 Female Adapter 1pc 3.5 Torque Spanner 1pc |
| AO18G-VNACKN | DC-18 GHz | Coaxial Open Circuit:±1.5° Coaxial Short Circuit:±1.5° Termination: ＜1.055 Coaxial Adapter: ＜1.083 | N Male Open Circuit 1pc N Female Open Circuit 1pc N Male Short Circuit 1pc N Female Short Circuit 1pc N Male Termination 1pc N Female Termination 1pc N Female to N Female Adapter 1pc N Male to N Male Adapter 1pc 7mm-N Male Adapter 2pcs 7mm-N Female Adapter 2pcs N Torque Spanner 1pc Hook Spanner 1pc |
| AO26.5G-VNACK3.5 | DC-26.5 GHz | Coaxial Open Circuit:±1.5° Coaxial Short Circuit: ±1.5° Termination: ＜1.055 Coaxial Adapter: ＜1.106 | 3.5 Male Open Circuit 1pc 3.5 Female Open Circuit 1pc 3.5 Male Short Circuit 1pc 3.5 Female Short Circuit 1pc 3.5 Male Termination 1pc 3.5 Female Termination 1pc 3.5 Female to 3.5 Female Adapter 1pc 3.5 Male to 3.5 Male Adapter 1pc 3.5 Male to 3.5 Female Adapter 1pc 3.5 Torque Spanner 1pc |
| AO40G-VNACK2.92 | DC-40 GHz | Coaxial Open Circuit:±6.0° Coaxial Short Circuit: ±4.5° Termination: ＜1.17 Coaxial Adapter: ＜1.15 | 2.92 Male Open Circuit 1pc 2.92 Female Open Circuit 1pc 2.92 Male Short Circuit 1pc 2.92 Female Short Circuit 1pc 2.92 Male Termination 1pc 2.92 Female Termination 1pc 2.92 Female to 2.92 Female Adapter 1pc 2.92 Male to 2.92 Male Adapter 1pc 2.92 Male to 2.92 Female Adapter 1pc Torque Spanner 1pc |
| AO50G-VNACK2.4 | DC-50 GHz | Coaxial Open Circuit:±2.25° Coaxial Short Circuit: ±2° Termination: ＜1.106 Coaxial Adapter: ＜1.222 | 2.4 Male Open Circuit 1pc 2.4 Female Open Circuit 1pc 2.4 Male Short Circuit 1pc 2.4 Female Short Circuit 1pc 2.4 Male Termination 1pc 2.4 Female Termination 1pc 2.4 Female to 2.4 Female Adapter 1pc 2.4 Male to 2.4 Male Adapter 1pc 2.4 Male to 2.4 Female Adapter 1pc 3.5 Torque Spanner 1pc |
| AO67G-VNACK1.85 | DC-67 GHz | Coaxial Open Circuit:±3.0° Coaxial Short Circuit: ±2.5° Termination: ＜1.12 Coaxial Adapter: ＜1.23 | 1.85 Male Open Circuit 1pc 1.85 Female Open Circuit 1pc 1.85 Male Short Circuit 1pc 1.85 Female Short Circuit 1pc 1.85 Male Termination 1pc 1.85 Female Termination 1pc 1.85 Female to 1.85 Female Adapter 1pc 1.85 Male to 1.85 Male Adapter 1pc 1.85 Male to 1.85 Female Adapter 1pc Torque Spanner 1pc |
