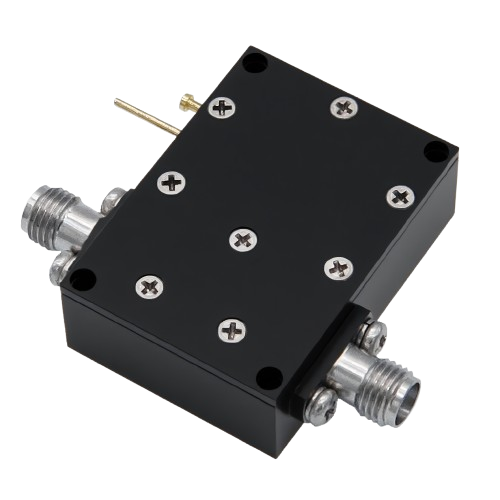

Low Noise Amplifier
Low Noise Amplifier (LNA) provides high gain with minimal added noise, significantly improving signal-to-noise ratio in weak signal environments. Engineered for stability and low power consumption, it is customizable for various frequency bands and applications, enabling customers to achieve clearer and more reliable communication and radar performance.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | VSWR (Max) | Gain/dB (Min) | Gain Flatness/dB (Max) | Output Power/dBm (Min) | Iutput Power/dBm (Max) | Noise Figure/dB | Power Supply |
| AO0.4G8G-CLNA-SKK35 | 0.4-8 | 2.0 | 35 | ±1.5 | 15 | 10 | 3.0 | +12V/≤180mA |
| AO0.5G8.5G-CLNA-SKK35 | 0.5-8.5 | 1.8 | 35 | ±1.5 | 15 | 15 | 2.5 | +5V/≤150mA |
| AO6G18G-CLNA-SKK20 | 6-18 | 2.0 | 20 | ±1.5 | 15 | 10 | 2.5 | +5V/≤80mA |
| AO6G18G-CLNA-SKK30 | 6-18 | 2.0 | 30 | ±1.5 | 27 | 10 | 3.0 | +12V/≤0.5A |
| AO6G18G-CLNA-SKK40 | 6-18 | 2.0 | 40 | ±1.5 | 24 | 10 | 3.0 | +12V/≤260mA |
| AO0.1G20G-CLNA-SKK15 | 0.1-20 | 1.8 | 15 | ±1.0 | 15 | 15 | 3.0 | +12V/≤0.1A |
| AO0.05G20G-CLNA-SKK30 | 0.05-20 | 2.0 | 30 | ±1.5 | 15 | 15 | 3.5 | +12V/≤0.2A |
| AO16G42G-CLNA-SKK30 | 16-42 | 2.5 | 30 | ±3.0 | 15 | 10 | 3.0 | +12V/≤220mA |
