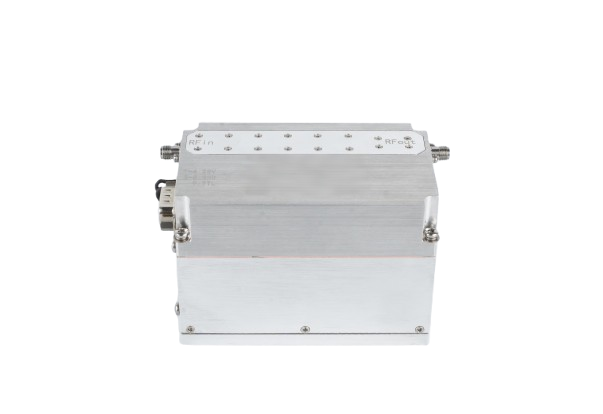

Power Amplifier

Power Amplifier delivers high output power with excellent linearity and efficiency, ensuring strong and clear signal amplification across specified frequency ranges. Designed for reliability and customizable to meet various communication, radar, and aerospace system requirements, it helps customers enhance signal strength and overall system performance.

Description Package Information Inquiry

Part No	Frequency/GHz	VSWR (Max)	Gain/dB (Min)	Gain Flatness/dB (Max)	Output Power/dBm (Min)	Iutput Power/dBm (Max)	Power Supply	Control Connector	Control Way
AO0.01M100M-CPA-SKNK55	0.01-100MHz	2.0	55	±3.0	250	0	+48V/20A	7W2	TTL
AO0.03G0.7G-CPA-SKK55	0.03-0.7	1.5	55	±1.5	50	0	+28V/10A	J30J-15ZKP	TTL
AO0.5G18G-CPA-SKK15	0.5-18	2.5	15	±1.0	25	10	+12V/400mA	J30J-15ZKP	TTL
AO0.7G6G-CPA-SKK37	0.7-6	2.0	37	±3.0	37	0	+28V/2.5A	J30J-9ZKP	TTL
AO1G8G-CPA-SKK43	1-8	2.0	43	±2.0	43	10	+28V/3A	DB-9 Female	TTL
AO1.3G2.7G-CPA-SKK43	1.3-2.7	1.5	43	±1.5	43	0	+28V/5A	J30J-15ZKP	TTL
AO2G6G-CPA-SKK50	2-6	2.0	50	±2.0	33	18	+5V/140mA	J30J-9ZKP	TTL
AO2G18G-CPA-SKK40	2-18	2.0	40	±1.5dB@1GHz	40	10	+28V/5A	J30J-9ZKP	TTL
AO2G18G-CPA-SKK43	2-18	2.0	43	±1.0dB@1GHz	43	10	+32V/5A	J30J-9ZKP	TTL
AO4G10G-CPA-SKK43	4-10	2.0	43	±2.0	43	10	+28V/3A	DB-9 Female	TTL
AO8G12G-CPA-SKK43	8-12	2.0	43	±2.0	43	10	+28V/3A	DB-9 Female	TTL
AO26G40G-CPA-2.92KK30	26-40	2.5	30	±2.5	33	10	+6V/5A	Feedthru Capacitor	TTL
