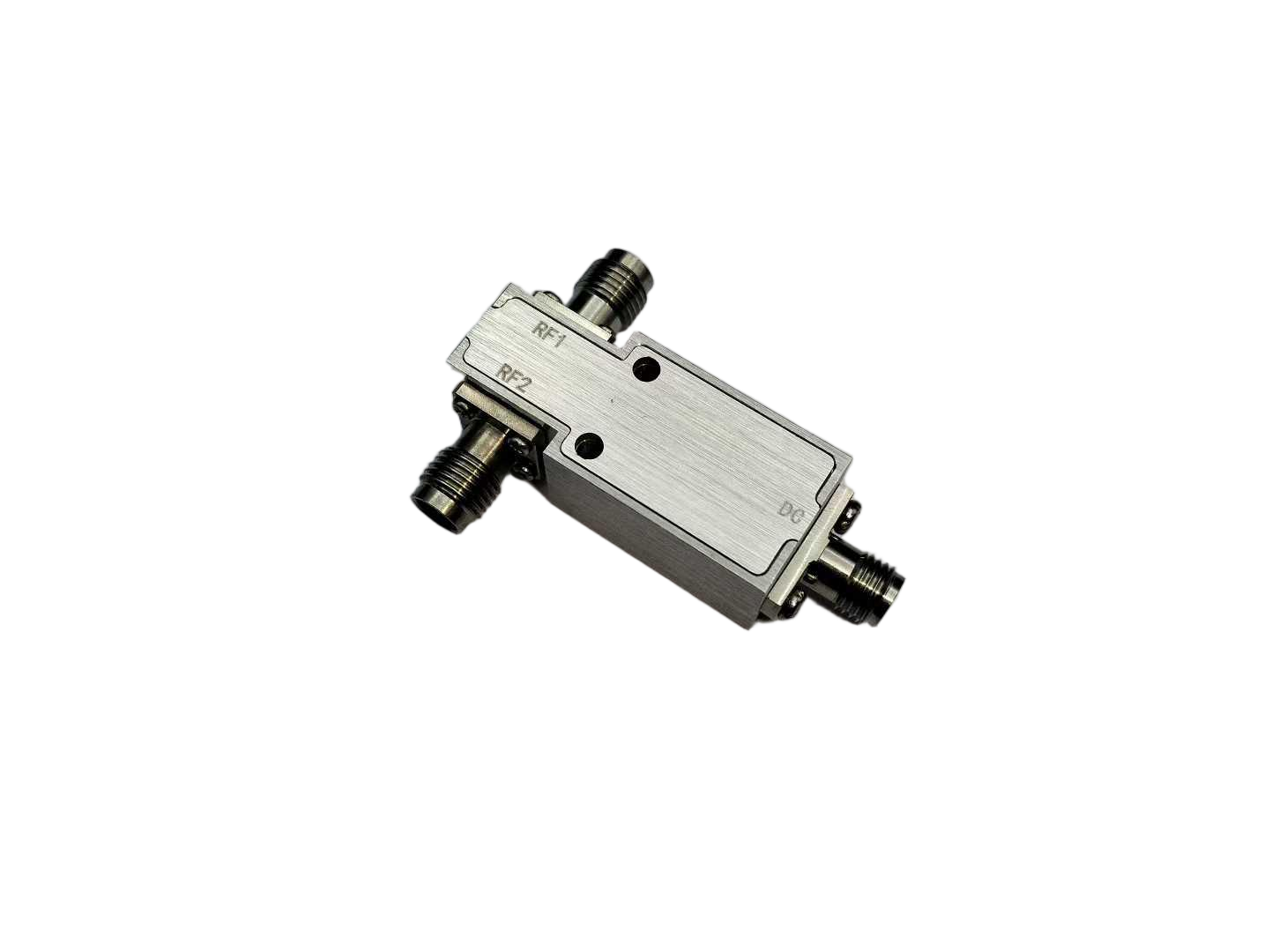

Coaxial Bias Tee

Coaxial Bias Tee enables simultaneous transmission of RF signals and DC power through a single coaxial line, providing efficient biasing for active components without interfering with high-frequency performance. Designed for low insertion loss, high isolation, and customizable frequency ranges, it helps customers achieve clean signal paths and simplified system integration in communication and microwave applications.
Description Package Information Inquiry
Part NoFrequency/GHzReturn Loss (Typ)IL/dB (Typ)Isolation/dB (Typ)Power/W (Max)Voltage/VCurrent/mARF Connector TypeDC Connector Type
AO30K18G-CBT2-SKSK3030KHz-18GHz122.0 30 +50500SMA FemaleSMA Female
AO30K26.5G-CBT2-SKSK3030KHz-26.5GHz122.0 30 +50700SMA FemaleSMA Female
AO10M26.5G-CBT5-3.5KSK3010MHz-26.5GHz122.5 30 +505003.5mm FemaleSMA Female
AO30K40G-CBT2-2.92KSK3030KHz-40GHz122.5 30 +505002.92mm FemaleSMA Female
AO30K50G-CBT5-2.4KSK3030KHz-50GHz123.0 30 +255002.4mm FemaleSMA Female
AO10M50G-CBT5-2.4KSK3010MHz-50GHz123.0 30 +505002.4mm FemaleSMA Female
AO30K67G-CBT1-1.85KSK2530KHz-67GHz104.0 25 +255001.85mm FemaleSMA Female
AO30K70G-CBT1-1.85KSK2530KHz-70GHz104.0 25 +255001.85mm FemaleSMA Female
AO200K110G-CBT1-1.0KSK25200KHz-110GHz124.0 25 +101701.0mm FemaleSMA Female
