Crossguide Directional Coupler

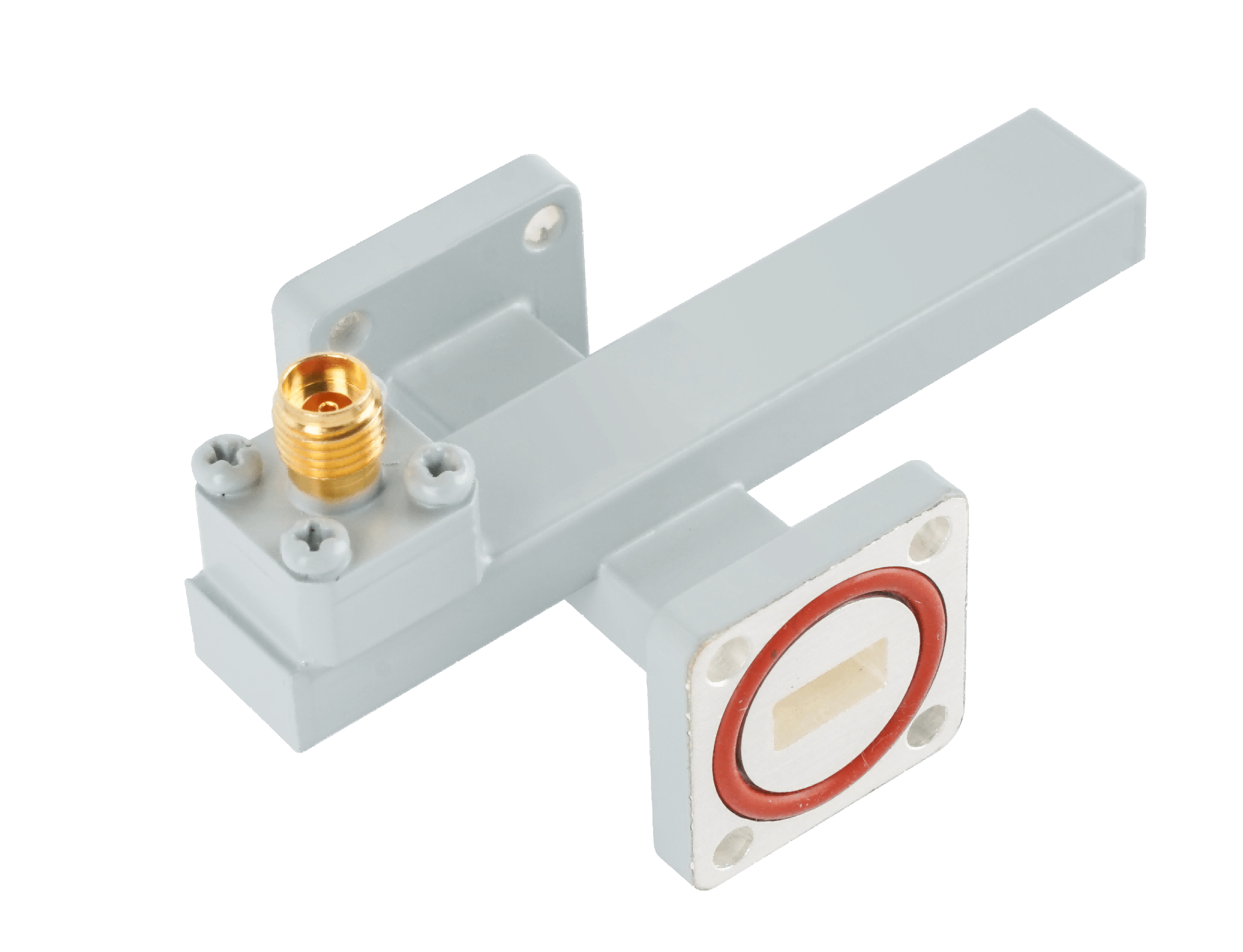

Our Crossguide Directional Couplers offer precise coupling and high directivity across full waveguide bands, enabling accurate power monitoring and signal sampling. With low insertion loss, excellent VSWR, and customizable coupling values, they are ideal for high-frequency measurement, system integration, and lab testing applications.

Description Package Information Inquiry

Part No	Frequency/GHz	Main VSWR (Max)	Secondary VSWR (Max)	IL/dB (Max)	Coupling Optional/dB	Directivity/dB (Min)	Flange Type	Connector Type
AO770-WL+CXNKPPACG	0.96-1.46	1.10	1.25	0.20	20~60	15	UDR12	N Female
AO650-WL+CXNKPPACG	1.13-1.73	1.10	1.25	0.20	20~60	15	UDR14	N Female
AO510-WL+CXNKPPACG	1.45-2.20	1.10	1.25	0.20	20~60	15	UDR18	N Female
AO430-WL+CXNKPPACG	1.72-2.61	1.10	1.25	0.20	20~60	15	UDR22	N Female
AO340-WL+CXNKPPACG	2.17-3.30	1.10	1.25	0.20	20~60	15	UDR26	N Female
AO284-WL+CXNKPPACG	2.60-3.95	1.10	1.25	0.20	20~60	15	UDR32	N Female
AO229-WL+CXNKPPACG	3.22-4.90	1.10	1.25	0.20	20~60	15	UDR40	N Female
AO187-WL+CXNKPPACG	3.94-5.99	1.10	1.25	0.20	20~60	15	UDR48	N Female
AO159-WL+CXNKPPACG	4.64-7.05	1.10	1.25	0.20	20~60	15	UDR58	N Female
AO137-WL+CXNKPPCSG	5.38-8.17	1.10	1.25	0.30	20~60	15	UDR70	N Female
AO112-WL+CXNKPPCSG	6.57-9.99	1.10	1.25	0.30	20~60	15	UBR84	N Female
AO90-WL+CXNKPPCSG	8.20-12.5	1.10	1.25	0.30	20~60	15	UBR100	N Female
AO75-WL+CXNKPPCSG	9.84-15.0	1.10	1.25	0.30	20~60	15	UBR120	N Female
AO62-WL+CXSKPPCSG	11.9-18.0	1.10	1.25	0.30	20~60	15	UBR140	SMA Female
AO51-WL+CXSKPPCSG	14.5-22.0	1.10	1.25	0.30	20~60	15	UBR180	SMA Female
AO42-WL+CX2.92KPPCSG	17.6-26.7	1.10	1.50	0.30	20~60	15	UBR220	2.92mm Female
AO34-WL+CX2.92KPPCSG	21.7-33.0	1.10	1.50	0.30	20~60	15	UBR260	2.92mm Female
AO28-WL+CX2.92KPPCSG	26.5-40.0	1.10	1.50	0.30	20~60	15	UBR320	2.92mm Female
