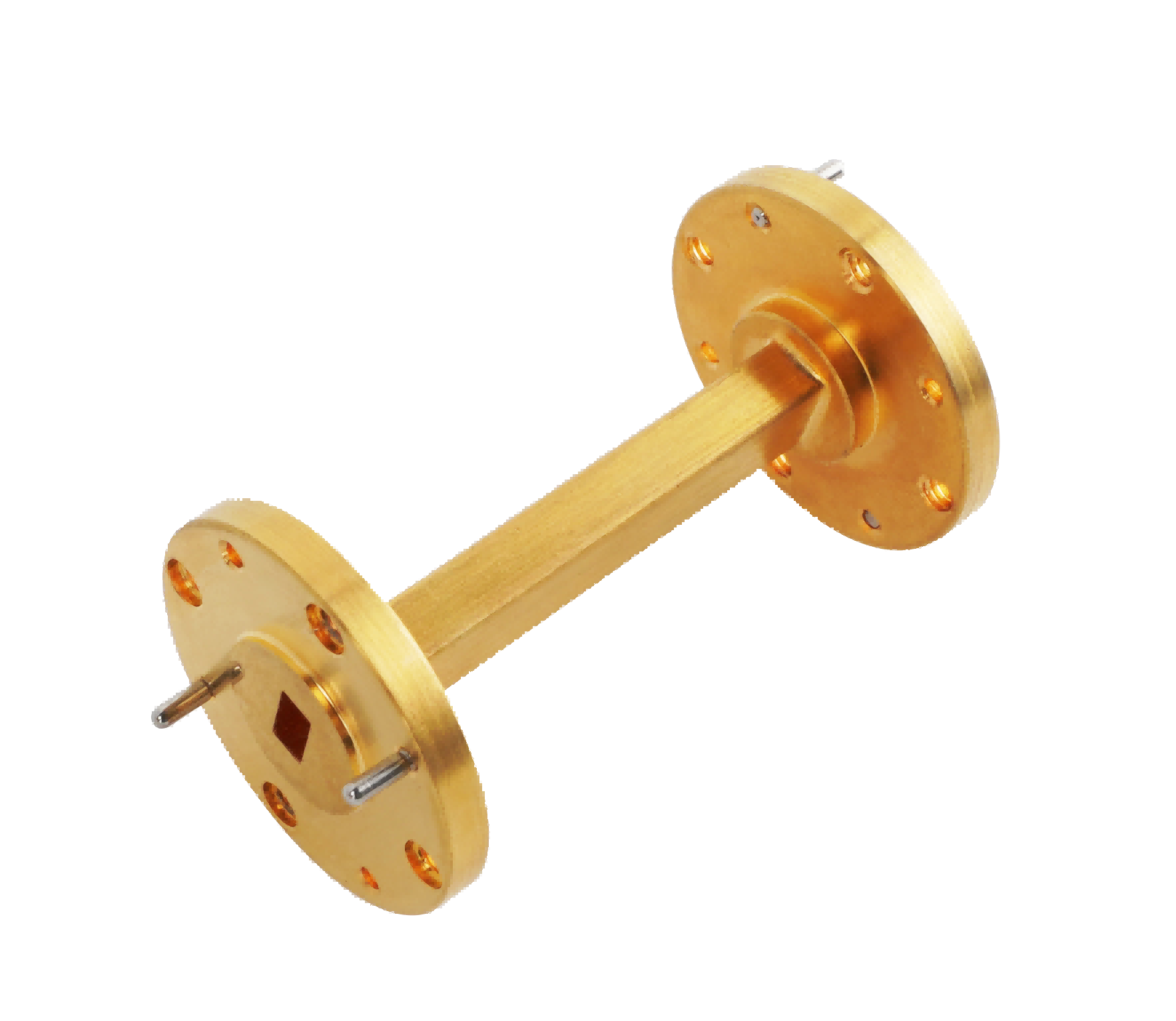

Straight Waveguide

Straight Waveguide is manufactured with high-precision processes to ensure low insertion loss and excellent signal transmission performance, suitable for various frequency bands and harsh environments. We offer a wide range of customization options to meet diverse customer application needs, helping clients achieve stable and reliable microwave and RF system solutions.
Description Package Information Inquiry

Part No

Frequency/GHz

VSWR (Max)

IL/dB (Max)

Length Optional/mm

Flange Type

AO2300-WALXPPACG

0.32-0.49

1.10

0.20

0.2~500

UDR3

AO2100-WALXPPACG

0.35-0.53

1.10

0.20

0.2~500

UDR4

AO1800-WALXPPACG

0.41-0.62

1.10

0.20

0.2~500

UDR5

AO1500-WALXPPACG

0.49-0.75

1.10

0.20

0.2~500

UDR6

AO1150-WALXPPACG

0.64-0.98

1.10

0.20

0.2~500

UDR8

AO975-WALXPPACG

0.75-1.15

1.10

0.20

0.2~500

UDR9

AO770-WALXPPACG

0.96-1.46

1.10

0.20

0.2~500

UDR12

AO650-WALXPPACG

1.13-1.73

1.10

0.20

0.2~2000

UDR14

AO510-WALXPPACG

1.45-2.20

1.10

0.20

0.2~2000

UDR18

AO430-WALXPPACG

1.72-2.61

1.10

0.20

0.1~2000

UDR22

AO340-WALXPPACG

2.17-3.30

1.10

0.20

0.1~2000

UDR26

AO284-WALXPPACG

2.60-3.95

1.10

0.20

0.1~2000

UDR32

AO229-WALXPPACG

3.22-4.90

1.10

0.20

0.1~2000

UDR40

AO187-WALXPPACG

3.94-5.99

1.10

0.20

0.1~2000

UDR48

AO159-WALXPPACG

4.64-7.05

1.10

0.20

0.1~2000

UDR58

AO137-WALXPPCSG

5.38-8.17

1.10

0.30

0.1~2000

UDR70

AO112-WALXPPCSG

6.57-9.99

1.10

0.30

0.1~2000

UBR84

AO90-WALXPPCSG

8.20-12.5

1.10

0.30

0.1~2000

UBR100

AO75-WALXPPCSG

9.84-15.0

1.10

0.30

0.1~2000

UBR120

AO62-WALXPPCSG

11.9-18.0

1.10

0.30

0.1~1000

UBR140

AO51-WALXPPCSG

14.5-22.0

1.10

0.30

0.1~1000

UBR180

AO42-WALXPPCSG

17.6-26.7

1.10

0.30

0.1~1000

UBR220

AO34-WALXPPCSG

21.7-33.0

1.10

0.30

0.1~1000

UBR260

AO28-WALXPPCSG

26.5-40.0

1.10

0.30

0.1~1000

UBR320

AO22-WALXPPCG

33.0-50.0

1.15

0.50

0.1~500

UG-383/U

AO19-WALXPPCG

40.0-60.0

1.15

0.50

0.1~500

UG383/UM

AO15-WALXPPCG

50.0-75.0

1.15

0.50

0.1~500

UG385/U

AO12-WALXPPCG

60.0-90.0

1.15

0.50

0.1~500

UG-387/U

AO10-WALXPPCG

75.0-110.0

1.15

0.50

0.1~500

UG387/UM

AO8-WALXPPCG

92.0-140.0

1.15

0.50

0.1~500

UG387/UM

AO6-WALXPPCG

113.0-173.0

1.15

0.50

0.1~500

UG387/UM

AO5-WALXPPCG

145.0-220.0

1.15

0.50

0.1~500

UG387/UM

AO4-WALXPPCG

172.0-261.0

1.15

0.50

0.1~500

UG387/UM

AO3-WALXPPCG

217.0-330.0

1.15

0.50

0.1~500

UG387/UM
