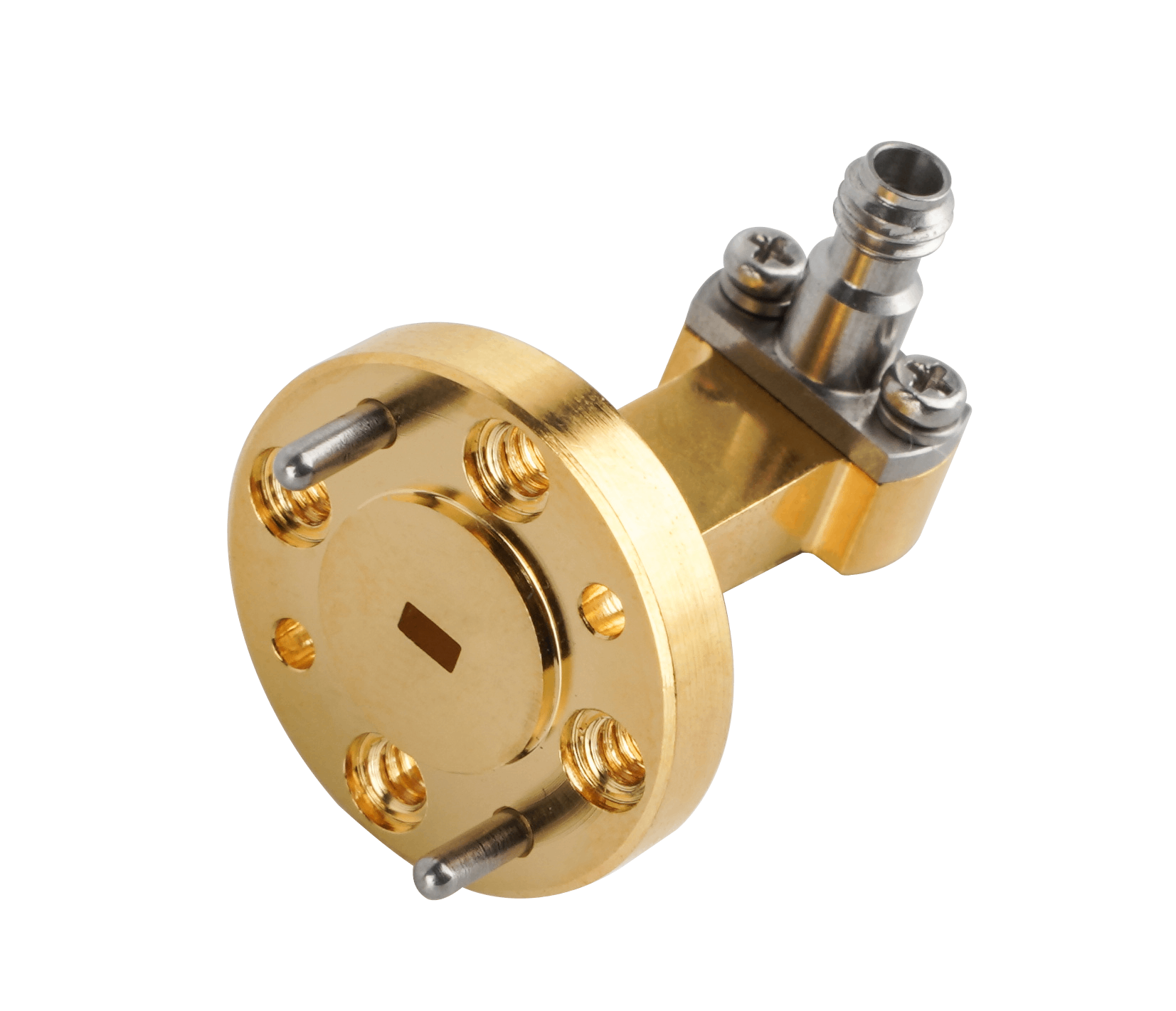

Waveguide to Coaxial Adapter

Waveguide to Coaxial Adapter enables seamless transition between waveguide and coaxial transmission lines with low insertion loss and excellent impedance matching. Designed for high performance across various frequency bands, it is customizable to fit specific connector types and system requirements, ensuring reliable integration in radar, communication, and testing applications.
Description Package Information Inquiry

Part No

Frequency/GHz

VSWR (Max)

IL/dB (Max)

Average Power/W (Max)

Flange Type

Connector Type

AO2300-WCANKPACG

0.32-0.49

1.25

0.20

100

UDR3

N Female

AO2100-WCANKPACG

0.35-0.53

1.25

0.20

100

UDR4

N Female

AO1800-WCANKPACG

0.41-0.62

1.25

0.20

100

UDR5

N Female

AO1500-WCANKPACG

0.49-0.75

1.25

0.20

100

UDR6

N Female

AO1150-WCANKPACG

0.64-0.98

1.25

0.20

100

UDR8

N Female

AO975-WCANKPACG

0.75-1.15

1.25

0.20

100

UDR9

N Female

AO770-WCANKPACG

0.96-1.46

1.25

0.20

100

UDR12

N Female

AO650-WCANKPACG

1.13-1.73

1.20

0.20

100

UDR14

N Female

AO510-WCANKPACG

1.45-2.20

1.20

0.20

100

UDR18

N Female

AO430-WCANKPACG

1.72-2.61

1.20

0.20

100

UDR22

N Female

AO340-WCANKPACG

2.17-3.30

1.20

0.20

100

UDR26

N Female

AO284-WCANKPACG

2.60-3.95

1.20

0.20

100

UDR32

N Female

AO229-WCANKPACG

3.22-4.90

1.20

0.20

100

UDR40

N Female

AO187-WCANKPACG

3.94-5.99

1.20

0.20

100

UDR48

N Female

AO187-WCASKPACG

3.94-5.99

1.20

0.20

50

UDR48

SMA Female

AO159-WCANKPACG

4.64-7.05

1.20

0.20

100

UDR58

N Female

AO159-WCASKPACG

4.64-7.05

1.20

0.20

50

UDR58

SMA Female

AO137-WCANKPCSG

5.38-8.17

1.20

0.30

100

UDR70

N Female

AO137-WCASKPCSG

5.38-8.17

1.20

0.30

50

UDR70

SMA Female

AO112-WCANKPCSG

6.57-9.99

1.20

0.30

100

UBR84

N Female

AO112-WCASKPCSG

6.57-9.99

1.20

0.30

50

UBR84

SMA Female

AO90-WCANKPCSG

8.20-12.5

1.20

0.30

100

UBR100

N Female

AO90-WCASKPCSG

8.20-12.5

1.20

0.30

50

UBR100

SMA Female

AO75-WCANKPCSG

9.84-15.0

1.20

0.30

100

UBR120

N Female

AO75-WCASKPCSG

9.84-15.0

1.20

0.30

50

UBR120

SMA Female

AO62-WCANKPCSG

11.9-18.0

1.20

0.30

100

UBR140

N Female

AO62-WCASKPCSG

11.9-18.0

1.20

0.30

50

UBR140

SMA Female

AO51-WCASKPCSG

14.5-22.0

1.20

0.30

30

UBR180

SMA Female

AO42-WCASKPCSG

17.6-26.0

1.25

0.30

30

UBR220

SMA Female

AO42-WCA2.92KPCSG

17.6-26.7

1.20

0.30

50

UBR220

2.92mm Female

AO42-WCA2.4KPCSG

17.6-26.7

1.20

0.30

30

UBR220

2.4mm Female

AO34-WCA2.92KPCSG

21.7-33.0

1.20

0.30

50

UBR260

2.92mm Female

AO34-WCA2.4KPCSG

21.7-33.0

1.20

0.30

30

UBR260

2.4mm Female

AO28-WCA2.92KPCSG

26.5-40.0

1.20

0.30

50

UBR320

2.92mm Female

AO28-WCA2.4KPCSG

26.5-40.0

1.20

0.30

30

UBR320

2.4mm Female

AO22-WCA2.4KPCG

33.0-50.0

1.35

0.50

30

UG-383/U

2.4mm Female

AO19-WCA1.85KPCG

40.0-60.0

1.50

0.60

10

UG383/UM

1.85mm Female

AO15-WCA1.85KPCG

50.0-75.0

1.80

0.80

10

UG385/U

1.85mm Female

AO12-WCA1.0KPCG

60.0-90.0

1.55

1.00

10

UG-387/U

1.0mm Female

AO10-WCA1.0KPCG

75.0-110.0

1.55

1.00

10

UG387/UM

1.0mm Female
