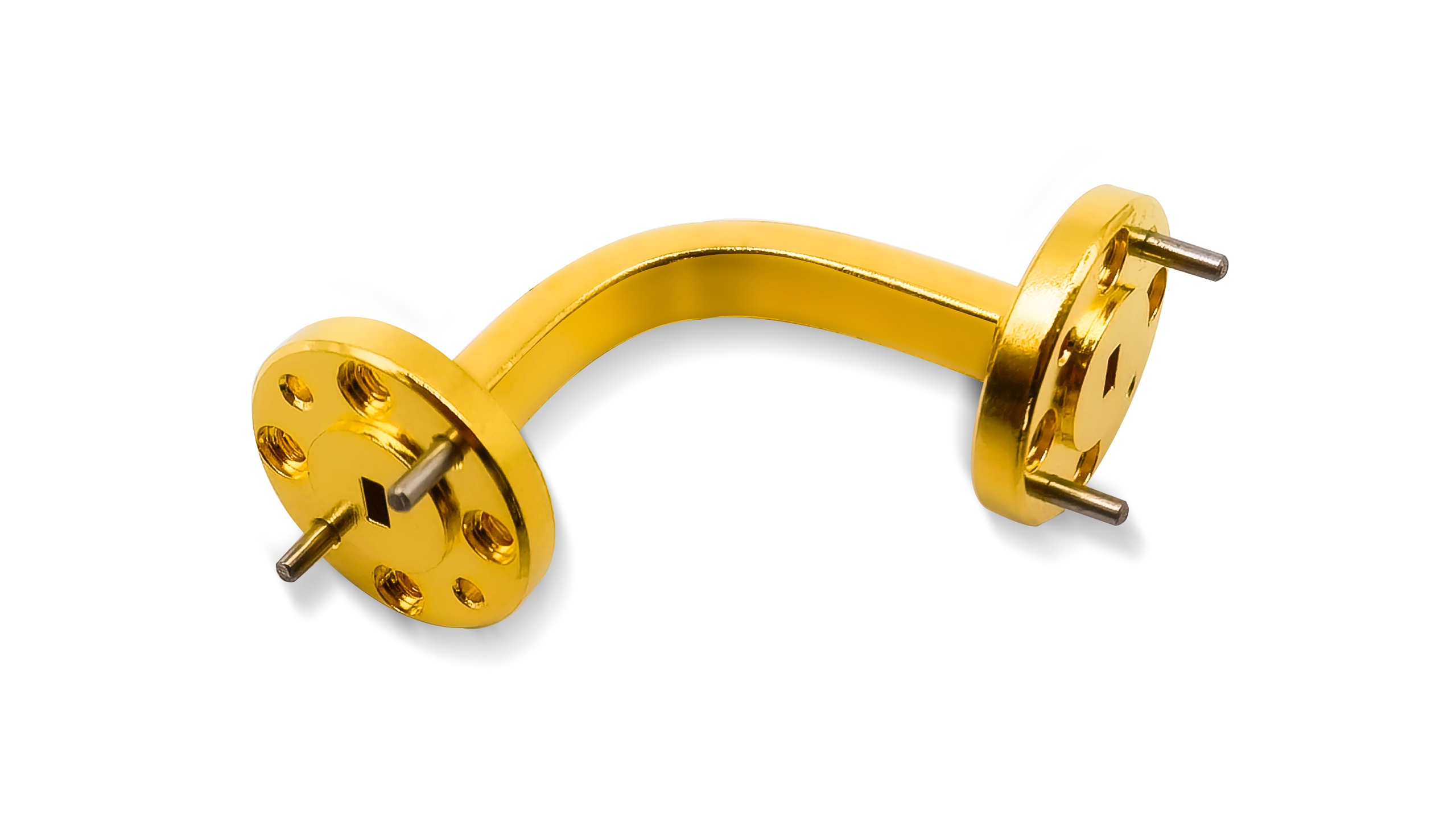

Waveguide E-Bend

Waveguide E-Bend offers a precise 90-degree vertical turn in waveguide systems with low insertion loss and minimal signal distortion. Designed for various frequency ranges and customizable sizes, it enables efficient and flexible microwave routing in radar, communication, and aerospace applications.

Description Package Information Inquiry

Part No	Frequency/GHz	VSWR (Max)	IL/dB (Max)	Standard Length/mm	Flange Type
AO430-WEBAXBPPACG	1.72-2.61	1.10	0.20	A=150 B=150	UDR22
AO340-WEBAXBPPACG	2.17-3.30	1.10	0.20	A=100 B=100	UDR26
AO284-WEBAXBPPACG	2.60-3.95	1.10	0.20	A=100 B=100	UDR32
AO229-WEBAXBPPACG	3.22-4.90	1.10	0.20	A=80 B=80	UDR40
AO187-WEBAXBPPACG	3.94-5.99	1.10	0.20	A=80 B=80	UDR48
AO159-WEBAXBPPACG	4.64-7.05	1.10	0.20	A=80 B=80	UDR58
AO137-WEBAXBPPCSG	5.38-8.17	1.10	0.30	A=70 B=70	UDR70
AO112-WEBAXBPPCSG	6.57-9.99	1.10	0.30	A=50 B=50	UBR84
AO90-WEBAXBPPCSG	8.20-12.5	1.10	0.30	A=40 B=40	UBR100
AO75-WEBAXBPPCSG	9.84-15.0	1.10	0.30	A=40 B=40	UBR120
AO62-WEBAXBPPCSG	11.9-18.0	1.10	0.30	A=40 B=40	UBR140
AO51-WEBAXBPPCSG	14.5-22.0	1.10	0.30	A=30 B=30	UBR180
AO42-WEBAXBPPCSG	17.6-26.7	1.10	0.30	A=30 B=30	UBR220
AO34-WEBAXBPPCSG	21.7-33.0	1.10	0.30	A=30 B=30	UBR260
AO28-WEBAXBPPCSG	26.5-40.0	1.10	0.30	A=30 B=30	UBR320
AO22-WEBAXBPPCG	33.0-50.0	1.15	0.50	A=25 B=25	UG-383/U
AO19-WEBAXBPPCG	40.0-60.0	1.15	0.50	A=25 B=25	UG383/UM
AO15-WEBAXBPPCG	50.0-75.0	1.15	0.50	A=25 B=25	UG385/U
AO12-WEBAXBPPCG	60.0-90.0	1.15	0.50	A=25 B=25	UG-387/U
AO10-WEBAXBPPCG	75.0-110.0	1.15	0.50	A=25 B=25	UG387/UM
