Waveguide H-Bend

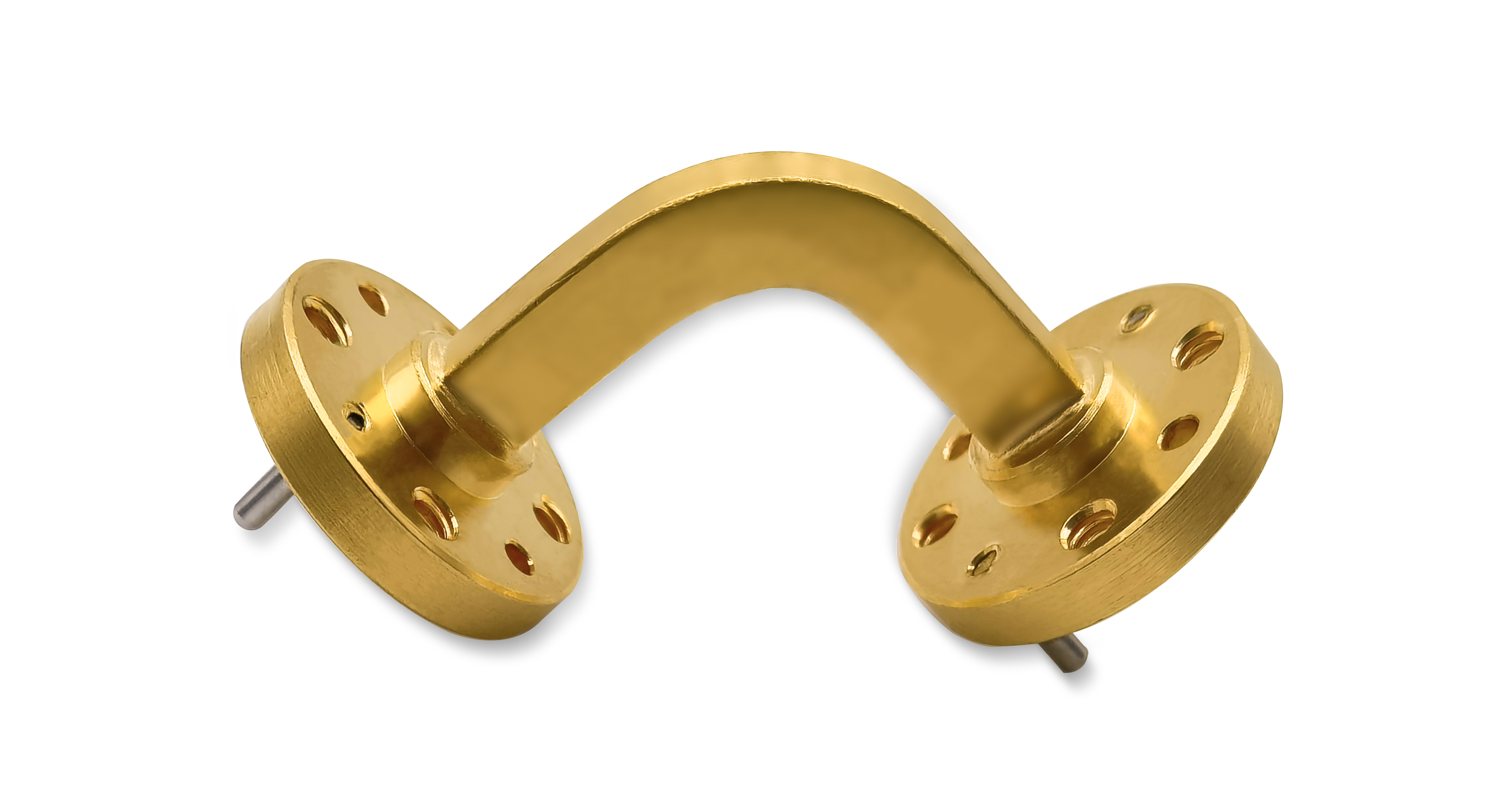

Waveguide H-Bend provides a precise 90-degree horizontal turn in waveguide paths with low insertion loss and minimal signal reflection. Engineered for various frequency bands and customizable dimensions, it ensures efficient microwave signal routing in communication, radar, and aerospace systems.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | VSWR (Max) | IL/dB (Max) | Standard Length/mm | Flange Type |
| AO430-WHBAXBPPACG | 1.72-2.61 | 1.10 | 0.20 | A=150 B=150 | UDR22 |
| AO340-WHBAXBPPACG | 2.17-3.30 | 1.10 | 0.20 | A=180 B=180 | UDR26 |
| AO284-WHBAXBPPACG | 2.60-3.95 | 1.10 | 0.20 | A=150 B=150 | UDR32 |
| AO229-WHBAXBPPACG | 3.22-4.90 | 1.10 | 0.20 | A=80 B=80 | UDR40 |
| AO187-WHBAXBPPACG | 3.94-5.99 | 1.10 | 0.20 | A=80 B=80 | UDR48 |
| AO159-WHBAXBPPACG | 4.64-7.05 | 1.10 | 0.20 | A=80 B=80 | UDR58 |
| AO137-WHBAXBPPCSG | 5.38-8.17 | 1.10 | 0.30 | A=70 B=70 | UDR70 |
| AO112-WHBAXBPPCSG | 6.57-9.99 | 1.10 | 0.30 | A=70 B=70 | UBR84 |
| AO90-WHBAXBPPCSG | 8.20-12.5 | 1.10 | 0.30 | A=50 B=50 | UBR100 |
| AO75-WHBAXBPPCSG | 9.84-15.0 | 1.10 | 0.30 | A=40 B=40 | UBR120 |
| AO62-WHBAXBPPCSG | 11.9-18.0 | 1.10 | 0.30 | A=40 B=40 | UBR140 |
| AO51-WHBAXBPPCSG | 14.5-22.0 | 1.10 | 0.30 | A=30 B=30 | UBR180 |
| AO42-WHBAXBPPCSG | 17.6-26.7 | 1.10 | 0.30 | A=30 B=30 | UBR220 |
| AO34-WHBAXBPPCSG | 21.7-33.0 | 1.10 | 0.30 | A=30 B=30 | UBR260 |
| AO28-WHBAXBPPCSG | 26.5-40.0 | 1.10 | 0.30 | A=30 B=30 | UBR320 |
| AO22-WHBAXBPPCG | 33.0-50.0 | 1.15 | 0.50 | A=25 B=25 | UG-383/U |
| AO19-WHBAXBPPCG | 40.0-60.0 | 1.15 | 0.50 | A=25 B=25 | UG383/UM |
| AO15-WHBAXBPPCG | 50.0-75.0 | 1.15 | 0.50 | A=25 B=25 | UG385/U |
| AO12-WHBAXBPPCG | 60.0-90.0 | 1.15 | 0.50 | A=25 B=25 | UG-387/U |
| AO10-WHBAXBPPCG | 75.0-110.0 | 1.15 | 0.50 | A=25 B=25 | UG387/UM |
