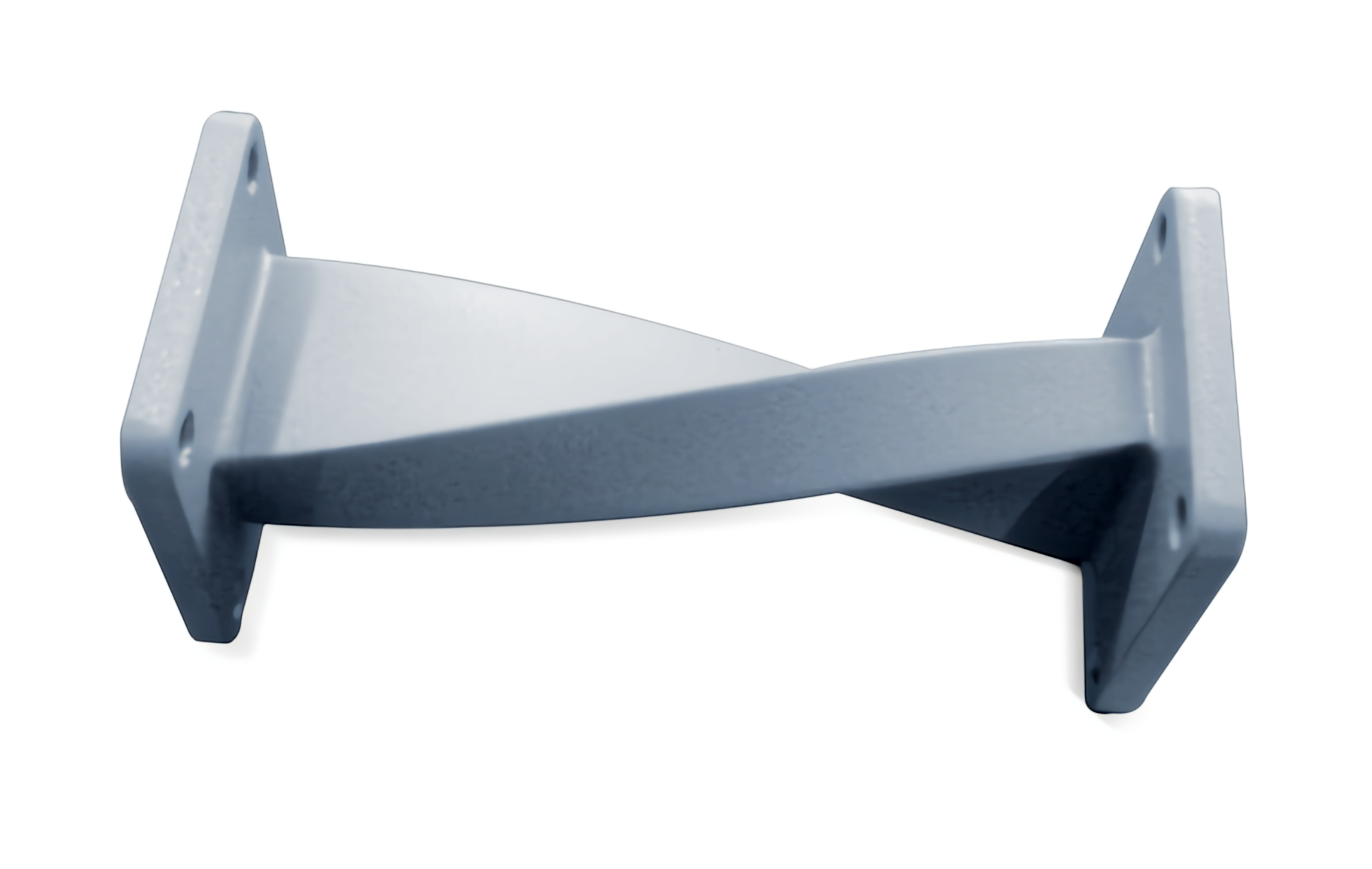

Waveguide Twist
Waveguide Twist enables smooth rotation of waveguide polarization with minimal insertion loss, allowing flexible alignment between connected waveguide sections. Designed for various frequency bands and customizable angles, it ensures reliable signal transmission and system adaptability in radar, communication, and aerospace applications.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | VSWR (Max) | IL/dB (Max) | Standard Length/mm | Flange Type |
| AO430-WTAXPPACG | 1.72-2.61 | 1.10 | 0.20 | X=400 | UDR22 |
| AO340-WTAXPPACG | 2.17-3.30 | 1.10 | 0.20 | X=400 | UDR26 |
| AO284-WTAXPPACG | 2.60-3.95 | 1.10 | 0.20 | X=300 | UDR32 |
| AO229-WTAXPPACG | 3.22-4.90 | 1.10 | 0.20 | X=200 | UDR40 |
| AO187-WTAXPPACG | 3.94-5.99 | 1.10 | 0.20 | X=200 | UDR48 |
| AO159-WTAXPPACG | 4.64-7.05 | 1.10 | 0.20 | X=200 | UDR58 |
| AO137-WTAXPPCSG | 5.38-8.17 | 1.10 | 0.30 | X=100 | UDR70 |
| AO112-WTAXPPCSG | 6.57-9.99 | 1.10 | 0.30 | X=100 | UBR84 |
| AO90-WTAXPPCSG | 8.20-12.5 | 1.10 | 0.30 | X=100 | UBR100 |
| AO75-WTAXPPCSG | 9.84-15.0 | 1.10 | 0.30 | X=100 | UBR120 |
| AO62-WTAXPPCSG | 11.9-18.0 | 1.10 | 0.30 | X=100 | UBR140 |
| AO51-WTAXPPCSG | 14.5-22.0 | 1.10 | 0.30 | X=60 | UBR180 |
| AO42-WTAXPPCSG | 17.6-26.7 | 1.10 | 0.30 | X=60 | UBR220 |
| AO34-WTAXPPCSG | 21.7-33.0 | 1.10 | 0.30 | X=60 | UBR260 |
| AO28-WTAXPPCSG | 26.5-40.0 | 1.10 | 0.30 | X=50 | UBR320 |
| AO22-WTAXPPCG | 33.0-50.0 | 1.15 | 0.50 | X=50 | UG-383/U |
| AO19-WTAXPPCG | 40.0-60.0 | 1.15 | 0.50 | X=50 | UG383/UM |
| AO15-WTAXPPCG | 50.0-75.0 | 1.15 | 0.50 | X=50 | UG385/U |
| AO12-WTAXPPCG | 60.0-90.0 | 1.15 | 0.50 | X=50 | UG-387/U |
| AO10-WTAXPPCG | 75.0-110.0 | 1.15 | 0.50 | X=50 | UG387/UM |
