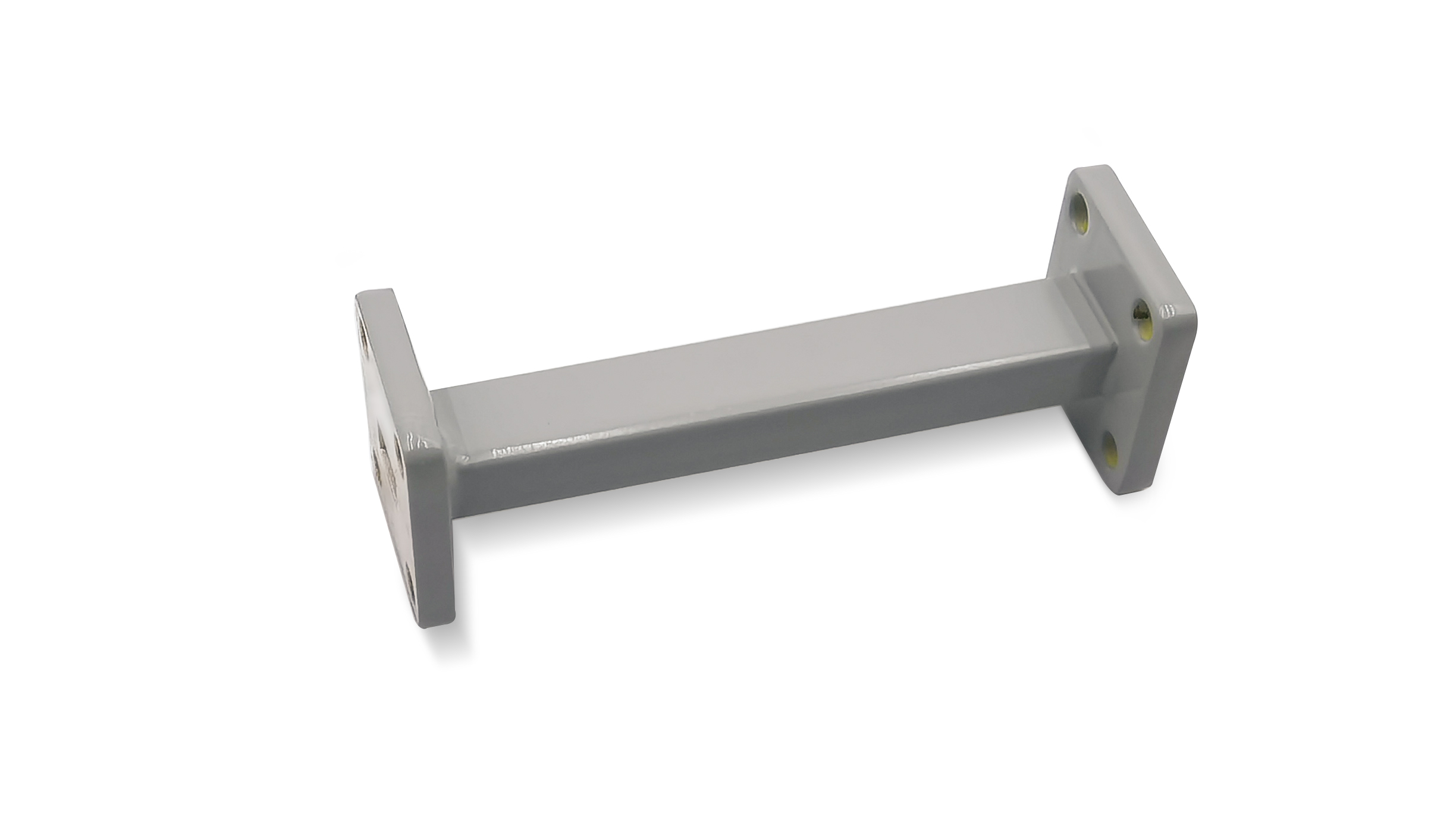

Waveguide Fixed Attenuator
Waveguide Fixed Attenuator delivers consistent and precise signal attenuation with low insertion loss and high power handling capability. Engineered for stability and customizable attenuation values and frequency ranges, it ensures reliable performance in radar, communication, and microwave applications.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | VSWR (Max) | Attenuation/dB | Flange Type |
| AO2300-WFAXPPACG | 0.32-0.49 | 1.25 | 3~30 | UDR3 |
| AO2100-WFAXPPACG | 0.35-0.53 | 1.25 | 3~30 | UDR4 |
| AO1800-WFAXPPACG | 0.41-0.62 | 1.25 | 3~30 | UDR5 |
| AO1500-WFAXPPACG | 0.49-0.75 | 1.25 | 3~30 | UDR6 |
| AO1150-WFAXPPACG | 0.64-0.98 | 1.25 | 3~30 | UDR8 |
| AO975-WFAXPPACG | 0.75-1.15 | 1.25 | 3~30 | UDR9 |
| AO770-WFAXPPACG | 0.96-1.46 | 1.25 | 3~30 | UDR12 |
| AO650-WFAXPPACG | 1.13-1.73 | 1.25 | 3~30 | UDR14 |
| AO510-WFAXPPACG | 1.45-2.20 | 1.25 | 3~30 | UDR18 |
| AO430-WFAXPPACG | 1.72-2.61 | 1.25 | 3~30 | UDR22 |
| AO340-WFAXPPACG | 2.17-3.30 | 1.25 | 3~30 | UDR26 |
| AO284-WFAXPPACG | 2.60-3.95 | 1.25 | 3~30 | UDR32 |
| AO229-WFAXPPACG | 3.22-4.90 | 1.25 | 3~30 | UDR40 |
| AO187-WFAXPPACG | 3.94-5.99 | 1.25 | 3~30 | UDR48 |
| AO159-WFAXPPACG | 4.64-7.05 | 1.25 | 3~30 | UDR58 |
| AO137-WFAXPPCSG | 5.38-8.17 | 1.25 | 3~30 | UDR70 |
| AO112-WFAXPPCSG | 6.57-9.99 | 1.25 | 3~30 | UBR84 |
| AO90-WFAXPPCSG | 8.20-12.5 | 1.25 | 3~30 | UBR100 |
| AO75-WFAXPPCSG | 9.84-15.0 | 1.25 | 3~30 | UBR120 |
| AO62-WFAXPPCSG | 11.9-18.0 | 1.25 | 3~30 | UBR140 |
| AO51-WFAXPPCSG | 14.5-22.0 | 1.25 | 3~30 | UBR180 |
| AO42-WFAXPPCSG | 17.6-26.7 | 1.25 | 3~30 | UBR220 |
| AO34-WFAXPPCSG | 21.7-33.0 | 1.25 | 3~30 | UBR260 |
| AO28-WFAXPPCSG | 26.5-40.0 | 1.25 | 3~30 | UBR320 |
| AO22-WFAXPPCG | 33.0-50.0 | 1.30 | 3~30 | UG-383/U |
| AO19-WFAXPPCG | 40.0-60.0 | 1.30 | 3~30 | UG383/UM |
| AO15-WFAXPPCG | 50.0-75.0 | 1.30 | 3~30 | UG385/U |
| AO12-WFAXPPCG | 60.0-90.0 | 1.35 | 3~30 | UG-387/U |
| AO10-WFAXPPCG | 75.0-110.0 | 1.35 | 3~30 | UG387/UM |
