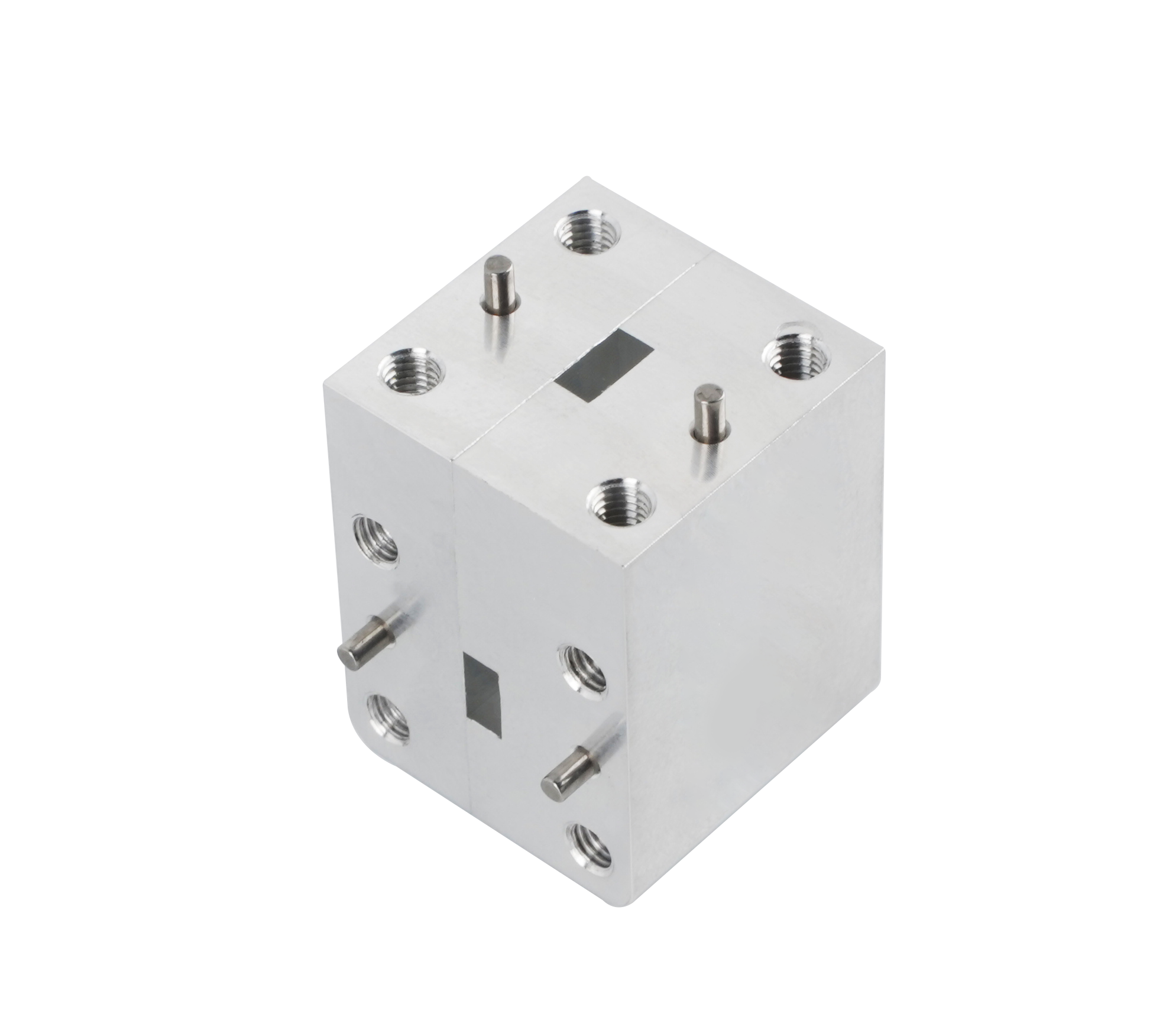

Waveguide Circulator
Waveguide Circulator directs microwave signals sequentially between multiple ports with low insertion loss and high isolation, enabling efficient signal routing in complex systems. Customizable for various frequency bands, it is widely used in radar, communication, and aerospace applications to improve system performance and protect sensitive components.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | Bandwidth | VSWR (Max) | IL/dB (Max) | Isolation/dB (Min) | Flange Type |
| AO650-WCICPA | 1.13-1.73 | 5% | 1.20 | 0.30 | 20 | UDR14 |
| AO510-WCICPA | 1.45-2.20 | 5% | 1.20 | 0.30 | 20 | UDR18 |
| AO430-WCICPA | 1.72-2.61 | 5% | 1.20 | 0.30 | 20 | UDR22 |
| AO340-WCICPA | 2.17-3.30 | 5% | 1.20 | 0.30 | 20 | UDR26 |
| AO284-WCICPA | 2.60-3.95 | 5% | 1.20 | 0.30 | 20 | UDR32 |
| AO229-WCICPA | 3.22-4.90 | 10% | 1.20 | 0.30 | 20 | UDR40 |
| AO187-WCICPA | 3.94-5.99 | 10% | 1.20 | 0.30 | 20 | UDR48 |
| AO159-WCICPA | 4.64-7.05 | 10% | 1.20 | 0.30 | 20 | UDR58 |
| AO137-WCICPC | 5.38-8.17 | 10% | 1.20 | 0.30 | 20 | UDR70 |
| AO112-WCICPC | 6.57-9.99 | 10% | 1.20 | 0.30 | 20 | UBR84 |
| AO90-WCICPC | 8.20-12.5 | 10% | 1.20 | 0.30 | 20 | UBR100 |
| AO75-WCICPC | 9.84-15.0 | 10% | 1.20 | 0.30 | 20 | UBR120 |
| AO62-WCICPC | 11.9-18.0 | 10% | 1.20 | 0.30 | 20 | UBR140 |
| AO51-WCICPC | 14.5-22.0 | 10% | 1.20 | 0.30 | 20 | UBR180 |
| AO42-WCICPC | 17.6-26.7 | 10% | 1.20 | 0.30 | 20 | UBR220 |
| AO34-WCICPC | 21.7-33.0 | 10% | 1.20 | 0.30 | 20 | UBR260 |
| AO28-WCICPC | 26.5-40.0 | 10% | 1.20 | 0.30 | 20 | UBR320 |
| AO22-WCICPC | 33.0-50.0 | 5% | 1.30 | 0.60 | 18 | UG-383/U |
| AO19-WCICPC | 40.0-60.0 | 5% | 1.30 | 0.60 | 18 | UG383/UM |
| AO15-WCICPC | 50.0-75.0 | 5% | 1.30 | 0.60 | 18 | UG385/U |
| AO12-WCICPC | 60.0-90.0 | 5% | 1.30 | 0.80 | 18 | UG-387/U |
| AO10-WCICPC | 75.0-110.0 | 5% | 1.30 | 1.00 | 18 | UG387/UM |
