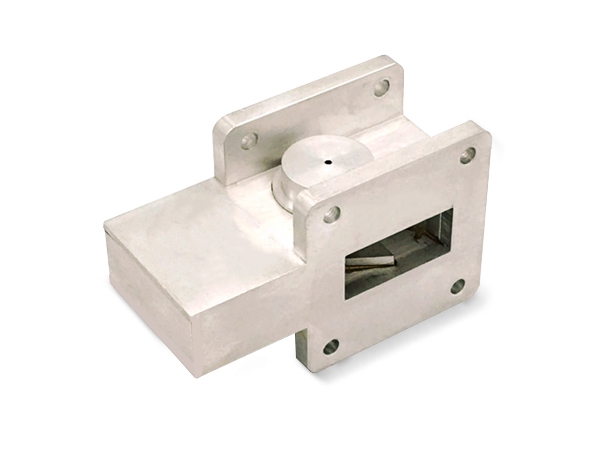

Waveguide Isolator
Waveguide Isolator provides unidirectional signal flow with high isolation and low insertion loss, protecting sensitive components from reflected power. Engineered for stability and customizable across frequency bands, it ensures reliable operation in radar, communication, and microwave systems.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | Bandwidth | VSWR (Max) | IL/dB (Max) | Isolation/dB (Min) | Flange Type |
| AO650-WISOPA | 1.13-1.73 | 5% | 1.20 | 0.30 | 20 | UDR14 |
| AO510-WISOPA | 1.45-2.20 | 5% | 1.20 | 0.30 | 20 | UDR18 |
| AO430-WISOPA | 1.72-2.61 | 5% | 1.20 | 0.30 | 20 | UDR22 |
| AO340-WISOPA | 2.17-3.30 | 5% | 1.20 | 0.30 | 20 | UDR26 |
| AO284-WISOPA | 2.60-3.95 | 5% | 1.20 | 0.30 | 20 | UDR32 |
| AO229-WISOPA | 3.22-4.90 | 10% | 1.20 | 0.30 | 20 | UDR40 |
| AO187-WISOPA | 3.94-5.99 | 10% | 1.20 | 0.30 | 20 | UDR48 |
| AO159-WISOPA | 4.64-7.05 | 10% | 1.20 | 0.30 | 20 | UDR58 |
| AO137-WISOPC | 5.38-8.17 | 10% | 1.20 | 0.30 | 20 | UDR70 |
| AO112-WISOPC | 6.57-9.99 | 10% | 1.20 | 0.30 | 20 | UBR84 |
| AO90-WISOPC | 8.20-12.5 | 10% | 1.20 | 0.30 | 20 | UBR100 |
| AO75-WISOPC | 9.84-15.0 | 10% | 1.20 | 0.30 | 20 | UBR120 |
| AO62-WISOPC | 11.9-18.0 | 10% | 1.20 | 0.30 | 20 | UBR140 |
| AO51-WISOPC | 14.5-22.0 | 10% | 1.20 | 0.30 | 20 | UBR180 |
| AO42-WISOPC | 17.6-26.7 | 10% | 1.20 | 0.30 | 20 | UBR220 |
| AO34-WISOPC | 21.7-33.0 | 10% | 1.20 | 0.30 | 20 | UBR260 |
| AO28-WISOPC | 26.5-40.0 | 10% | 1.20 | 0.30 | 20 | UBR320 |
| AO22-WISOPC | 33.0-50.0 | 5% | 1.30 | 0.60 | 15 | UG-383/U |
| AO19-WISOPC | 40.0-60.0 | 5% | 1.30 | 0.60 | 15 | UG383/UM |
| AO15-WISOPC | 50.0-75.0 | 5% | 1.30 | 0.60 | 15 | UG385/U |
| AO12-WISOPC | 60.0-90.0 | 5% | 1.30 | 0.80 | 15 | UG-387/U |
| AO10-WISOPC | 75.0-110.0 | 5% | 1.30 | 1.00 | 15 | UG387/UM |
