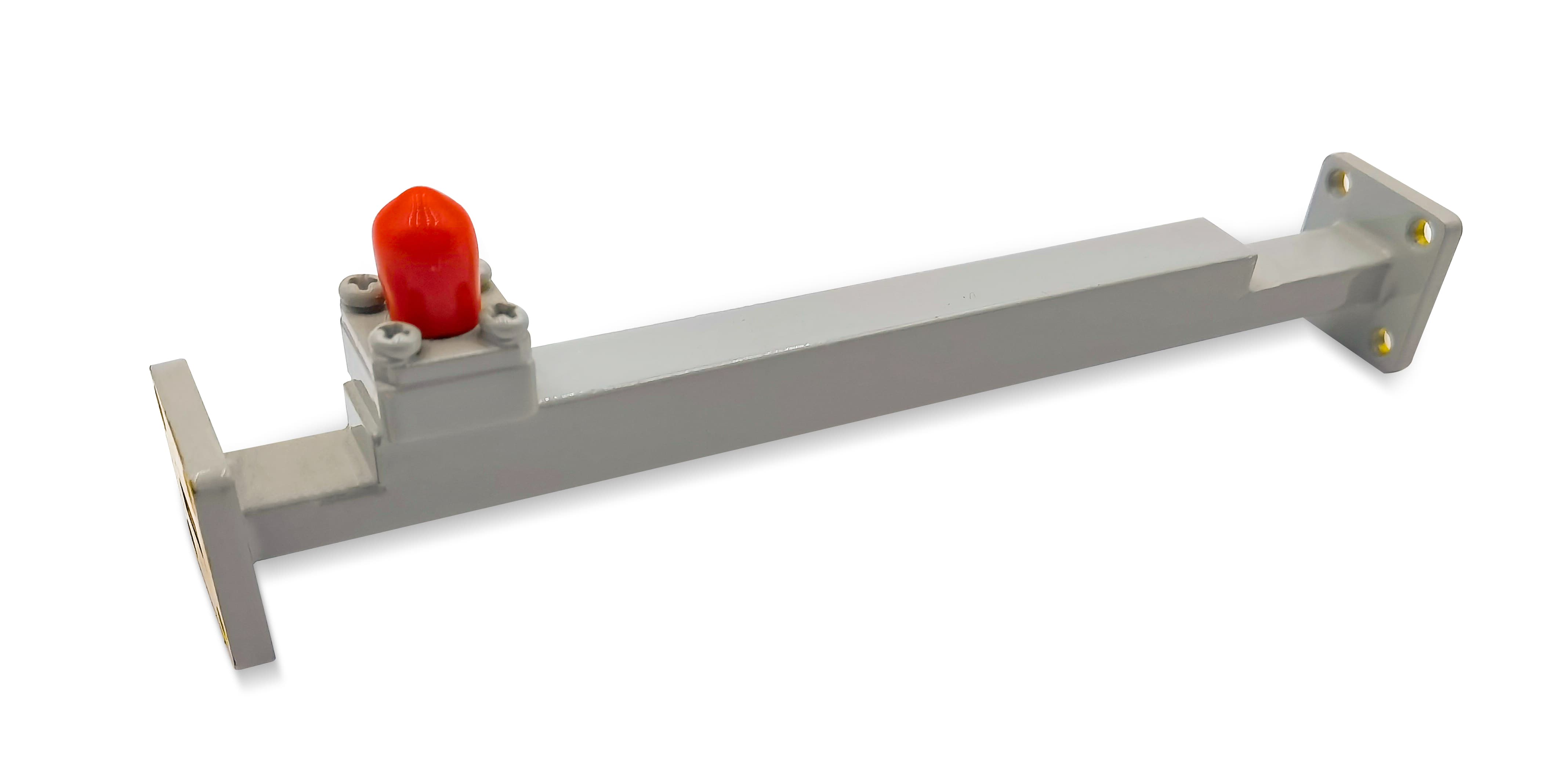

Broadwall Directional Coupler
Broadwall Directional Coupler offers accurate signal coupling with low insertion loss and high directivity, designed for integration along the broad wall of waveguides. Customizable for various frequency ranges, it provides reliable performance for monitoring and measurement in radar, communication, and microwave systems.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | Main VSWR (Max) | Secondary VSWR (Max) | IL/dB (Max) | Coupling Optional/dB | Directivity/dB (Min) | Flange Type | Connector Type |
| AO975-WCXNKPPACG | 0.75-1.15 | 1.10 | 1.25 | 0.20 | 3~60 | 20~40 | UDR9 | N Female |
| AO770-WCXNKPPACG | 0.96-1.46 | 1.10 | 1.25 | 0.20 | 3~60 | 20~40 | UDR12 | N Female |
| AO650-WCXNKPPACG | 1.13-1.73 | 1.10 | 1.25 | 0.20 | 3~60 | 20~40 | UDR14 | N Female |
| AO510-WCXNKPPACG | 1.45-2.20 | 1.10 | 1.25 | 0.20 | 3~60 | 20~40 | UDR18 | N Female |
| AO430-WCXNKPPACG | 1.72-2.61 | 1.10 | 1.25 | 0.20 | 3~60 | 20~40 | UDR22 | N Female |
| AO340-WCXNKPPACG | 2.17-3.30 | 1.10 | 1.25 | 0.20 | 3~60 | 20~40 | UDR26 | N Female |
| AO284-WCXNKPPACG | 2.60-3.95 | 1.10 | 1.25 | 0.20 | 3~60 | 20~40 | UDR32 | N Female |
| AO229-WCXNKPPACG | 3.22-4.90 | 1.10 | 1.25 | 0.20 | 3~60 | 20~40 | UDR40 | N Female |
| AO187-WCXNKPPACG | 3.94-5.99 | 1.10 | 1.25 | 0.20 | 3~60 | 20~40 | UDR48 | N Female |
| AO159-WCXNKPPACG | 4.64-7.05 | 1.10 | 1.25 | 0.20 | 3~60 | 20~40 | UDR58 | N Female |
| AO137-WCXNKPPCSG | 5.38-8.17 | 1.10 | 1.25 | 0.30 | 3~60 | 20~40 | UDR70 | N Female |
| AO112-WCXNKPPCSG | 6.57-9.99 | 1.10 | 1.25 | 0.30 | 3~60 | 20~40 | UBR84 | N Female |
| AO90-WCXNKPPCSG | 8.20-12.5 | 1.10 | 1.25 | 0.30 | 3~60 | 20~40 | UBR100 | N Female |
| AO75-WCXNKPPCSG | 9.84-15.0 | 1.10 | 1.25 | 0.30 | 3~60 | 20~40 | UBR120 | N Female |
| AO62-WCXSKPPCSG | 11.9-18.0 | 1.10 | 1.25 | 0.30 | 3~60 | 20~40 | UBR140 | SMA Female |
| AO51-WCXSKPPCSG | 14.5-22.0 | 1.10 | 1.25 | 0.30 | 3~60 | 20~40 | UBR180 | SMA Female |
| AO42-WCX2.92KPPCSG | 17.6-26.7 | 1.10 | 1.50 | 0.30 | 3~60 | 20~40 | UBR220 | 2.92mm Female |
| AO34-WCX2.92KPPCSG | 21.7-33.0 | 1.10 | 1.50 | 0.30 | 3~60 | 20~40 | UBR260 | 2.92mm Female |
| AO28-WCX2.92KPPCSG | 26.5-40.0 | 1.10 | 1.50 | 0.30 | 3~60 | 20~40 | UBR320 | 2.92mm Female |
| AO22-WCXPPCG | 33.0-50.0 | 1.10 | 1.25 | 0.50 | 3~60 | 20~40 | UG-383/U | N/A |
| AO19-WCXPPCG | 40.0-60.0 | 1.10 | 1.25 | 0.50 | 3~60 | 20~40 | UG383/UM | N/A |
| AO15-WCXPPCG | 50.0-75.0 | 1.10 | 1.25 | 0.50 | 3~60 | 20~40 | UG385/U | N/A |
| AO12-WCXPPCG | 60.0-90.0 | 1.10 | 1.25 | 0.50 | 3~60 | 20~40 | UG-387/U | N/A |
| AO10-WCXPPCG | 75.0-110.0 | 1.10 | 1.25 | 0.50 | 3~60 | 20~40 | UG387/UM | N/A |
