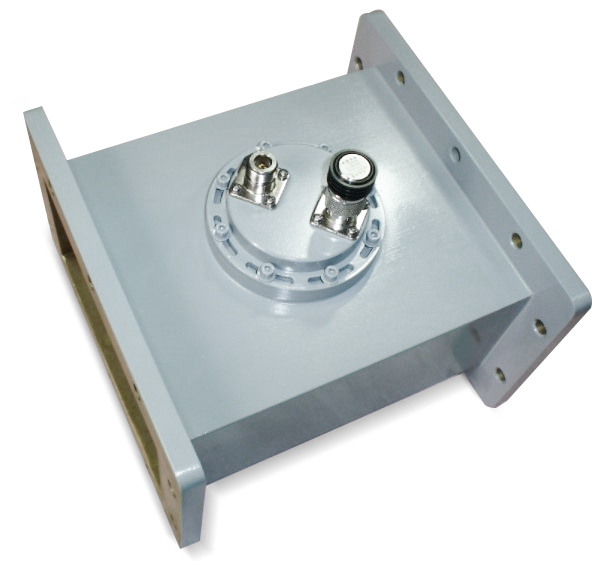

Waveguide Loop Coupler
Waveguide Loop Coupler provides efficient signal sampling with low insertion loss and high directivity by coupling energy through a loop inserted into the waveguide wall. Customizable for various frequency bands and coupling levels, it is ideal for monitoring, measurement, and signal distribution in radar, communication, and microwave systems.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | Main VSWR (Max) | Secondary VSWR (Max) | IL/dB (Max) | Coupling Optional/dB | Directivity/dB (Min) | Flange Type | Connector Type |
| AO975-WHCXNKPPACG | 0.75-1.15 | 1.10 | 1.25 | 0.20 | 20~60 | 15 | UDR9 | N Female |
| AO770-WHCXNKPPACG | 0.96-1.46 | 1.10 | 1.25 | 0.20 | 20~60 | 15 | UDR12 | N Female |
| AO650-WHCXNKPPACG | 1.13-1.73 | 1.10 | 1.25 | 0.20 | 20~60 | 15 | UDR14 | N Female |
| AO510-WHCXNKPPACG | 1.45-2.20 | 1.10 | 1.25 | 0.20 | 20~60 | 15 | UDR18 | N Female |
| AO430-WHCXNKPPACG | 1.72-2.61 | 1.10 | 1.25 | 0.20 | 20~60 | 15 | UDR22 | N Female |
| AO340-WHCXNKPPACG | 2.17-3.30 | 1.10 | 1.25 | 0.20 | 20~60 | 15 | UDR26 | N Female |
| AO284-WHCXNKPPACG | 2.60-3.95 | 1.10 | 1.25 | 0.20 | 20~60 | 15 | UDR32 | N Female |
| AO229-WHCXNKPPACG | 3.22-4.90 | 1.10 | 1.25 | 0.20 | 20~60 | 15 | UDR40 | N Female |
| AO187-WHCXNKPPACG | 3.94-5.99 | 1.10 | 1.25 | 0.20 | 20~60 | 15 | UDR48 | N Female |
| AO159-WHCXNKPPACG | 4.64-7.05 | 1.10 | 1.25 | 0.20 | 20~60 | 15 | UDR58 | N Female |
| AO137-WHCXNKPPCSG | 5.38-8.17 | 1.10 | 1.25 | 0.30 | 20~60 | 15 | UDR70 | N Female |
| AO112-WHCXNKPPCSG | 6.57-9.99 | 1.10 | 1.25 | 0.30 | 20~60 | 15 | UBR84 | N Female |
| AO90-WHCXNKPPCSG | 8.20-12.5 | 1.10 | 1.25 | 0.30 | 20~60 | 15 | UBR100 | N Female |
