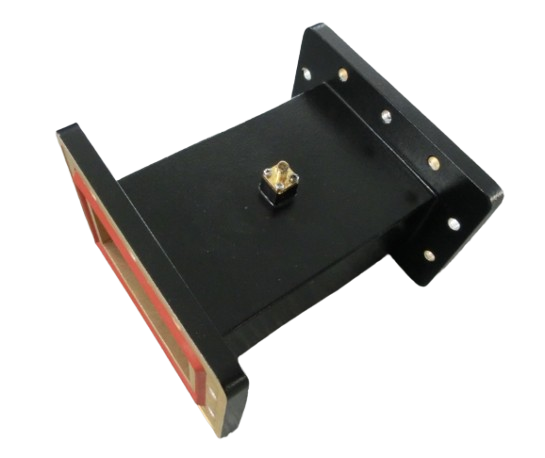

Waveguide Probe Coupler
Waveguide Probe Coupler enables efficient signal sampling and monitoring within waveguide systems with low insertion loss and high directivity. Designed for precise performance across multiple frequency bands and customizable configurations, it provides reliable solutions for radar, communication, and microwave testing applications.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | Main VSWR (Max) | Secondary VSWR (Max) | IL/dB (Max) | Coupling Optional/dB | Flange Type | Connector Type |
| AO229-WTCXNKPPACG | 3.22-4.90 | 1.10 | 1.25 | 0.20 | 30~60 | UDR40 | N Female |
| AO187-WTCXNKPPACG | 3.94-5.99 | 1.10 | 1.25 | 0.20 | 30~60 | UDR48 | N Female |
| AO159-WTCXNKPPACG | 4.64-7.05 | 1.10 | 1.25 | 0.20 | 30~60 | UDR58 | N Female |
| AO137-WTCXNKPPCSG | 5.38-8.17 | 1.10 | 1.25 | 0.30 | 30~60 | UDR70 | N Female |
| AO112-WTCXNKPPCSG | 6.57-9.99 | 1.10 | 1.25 | 0.30 | 30~60 | UBR84 | N Female |
| AO90-WTCXNKPPCSG | 8.20-12.5 | 1.10 | 1.25 | 0.30 | 30~60 | UBR100 | N Female |
| AO75-WTCXNKPPCSG | 9.84-15.0 | 1.10 | 1.25 | 0.30 | 30~60 | UBR120 | N Female |
| AO62-WTCXSKPPCSG | 11.9-18.0 | 1.10 | 1.25 | 0.30 | 30~60 | UBR140 | SMA Female |
| AO51-WTCXSKPPCSG | 14.5-22.0 | 1.10 | 1.25 | 0.30 | 30~60 | UBR180 | SMA Female |
| AO42-WTCX2.92KPPCSG | 17.6-26.7 | 1.10 | 1.50 | 0.30 | 30~60 | UBR220 | 2.92mm Female |
| AO34-WTCX2.92KPPCSG | 21.7-33.0 | 1.10 | 1.50 | 0.30 | 30~60 | UBR260 | 2.92mm Female |
| AO28-WTCX2.92KPPCSG | 26.5-40.0 | 1.10 | 1.50 | 0.30 | 30~60 | UBR320 | 2.92mm Female |
