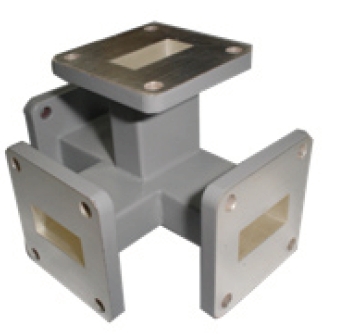

Waveguide Magic Tee
Waveguide Magic Tee combines signals from two inputs or splits a signal into two outputs with precise phase and amplitude balance. Engineered for low insertion loss and high isolation, it is customizable for various frequency bands, offering reliable performance in radar, communication, and microwave systems.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | Bandwidth | H Plane VSWR (Max) | E Plane VSWR (Max) | IL/dB (Max) | Isolation/dB (Min) | Balance/dB (Max) | Flange Type |
| AO2300-WMTACG | 0.32-0.49 | 20% | 1.20 | 1.50 | 0.20 | 35 | ±0.25 | UDR3 |
| AO2100-WMTACG | 0.35-0.53 | 20% | 1.20 | 1.50 | 0.20 | 35 | ±0.25 | UDR4 |
| AO1800-WMTACG | 0.41-0.62 | 20% | 1.20 | 1.50 | 0.20 | 35 | ±0.25 | UDR5 |
| AO1500-WMTACG | 0.49-0.75 | 20% | 1.20 | 1.50 | 0.20 | 35 | ±0.25 | UDR6 |
| AO1150-WMTACG | 0.64-0.98 | 20% | 1.20 | 1.50 | 0.20 | 35 | ±0.25 | UDR8 |
| AO975-WMTACG | 0.75-1.15 | 20% | 1.20 | 1.50 | 0.20 | 35 | ±0.25 | UDR9 |
| AO770-WMTACG | 0.96-1.46 | 20% | 1.20 | 1.50 | 0.20 | 35 | ±0.25 | UDR12 |
| AO650-WMTACG | 1.13-1.73 | 20% | 1.20 | 1.50 | 0.20 | 35 | ±0.25 | UDR14 |
| AO510-WMTACG | 1.45-2.20 | 20% | 1.20 | 1.50 | 0.20 | 35 | ±0.25 | UDR18 |
| AO430-WMTACG | 1.72-2.61 | 20% | 1.20 | 1.50 | 0.30 | 35 | ±0.40 | UDR22 |
| AO340-WMTACG | 2.17-3.30 | 20% | 1.20 | 1.50 | 0.30 | 35 | ±0.40 | UDR26 |
| AO284-WMTACG | 2.60-3.95 | 20% | 1.20 | 1.50 | 0.30 | 35 | ±0.40 | UDR32 |
| AO229-WMTACG | 3.22-4.90 | 20% | 1.20 | 1.50 | 0.30 | 35 | ±0.40 | UDR40 |
| AO187-WMTACG | 3.94-5.99 | 20% | 1.20 | 1.50 | 0.30 | 35 | ±0.40 | UDR48 |
| AO159-WMTACG | 4.64-7.05 | 20% | 1.20 | 1.50 | 0.30 | 35 | ±0.40 | UDR58 |
| AO137-WMTCSG | 5.38-8.17 | 20% | 1.20 | 1.50 | 0.30 | 35 | ±0.40 | UDR70 |
| AO112-WMTCSG | 6.57-9.99 | 20% | 1.20 | 1.50 | 0.30 | 35 | ±0.40 | UBR84 |
| AO90-WMTCSG | 8.20-12.5 | 20% | 1.20 | 1.50 | 0.30 | 35 | ±0.40 | UBR100 |
| AO75-WMTCSG | 9.84-15.0 | 20% | 1.20 | 1.50 | 0.30 | 35 | ±0.40 | UBR120 |
| AO62-WMTCSG | 11.9-18.0 | 20% | 1.20 | 1.50 | 0.30 | 35 | ±0.40 | UBR140 |
| AO51-WMTCSG | 14.5-22.0 | 20% | 1.20 | 1.50 | 0.30 | 35 | ±0.40 | UBR180 |
| AO42-WMTCSG | 17.6-26.7 | 20% | 1.20 | 1.50 | 0.30 | 30 | ±0.40 | UBR220 |
| AO34-WMTCSG | 21.7-33.0 | 20% | 1.20 | 1.50 | 0.30 | 30 | ±0.40 | UBR260 |
| AO28-WMTCSG | 26.5-40.0 | 20% | 1.20 | 1.50 | 0.30 | 30 | ±0.40 | UBR320 |
| AO22-WMTCG | 33.0-50.0 | 20% | 1.20 | 1.50 | 0.50 | 30 | ±0.50 | UG-383/U |
| AO19-WMTCG | 40.0-60.0 | 20% | 1.20 | 1.50 | 0.50 | 30 | ±0.50 | UG383/UM |
| AO15-WMTCG | 50.0-75.0 | 20% | 1.20 | 1.50 | 0.50 | 30 | ±0.50 | UG385/U |
| AO12-WMTCG | 60.0-90.0 | 20% | 1.20 | 1.50 | 0.80 | 30 | ±0.50 | UG-387/U |
| AO10-WMTCG | 75.0-110.0 | 20% | 1.20 | 1.50 | 0.80 | 30 | ±0.50 | UG387/UM |
