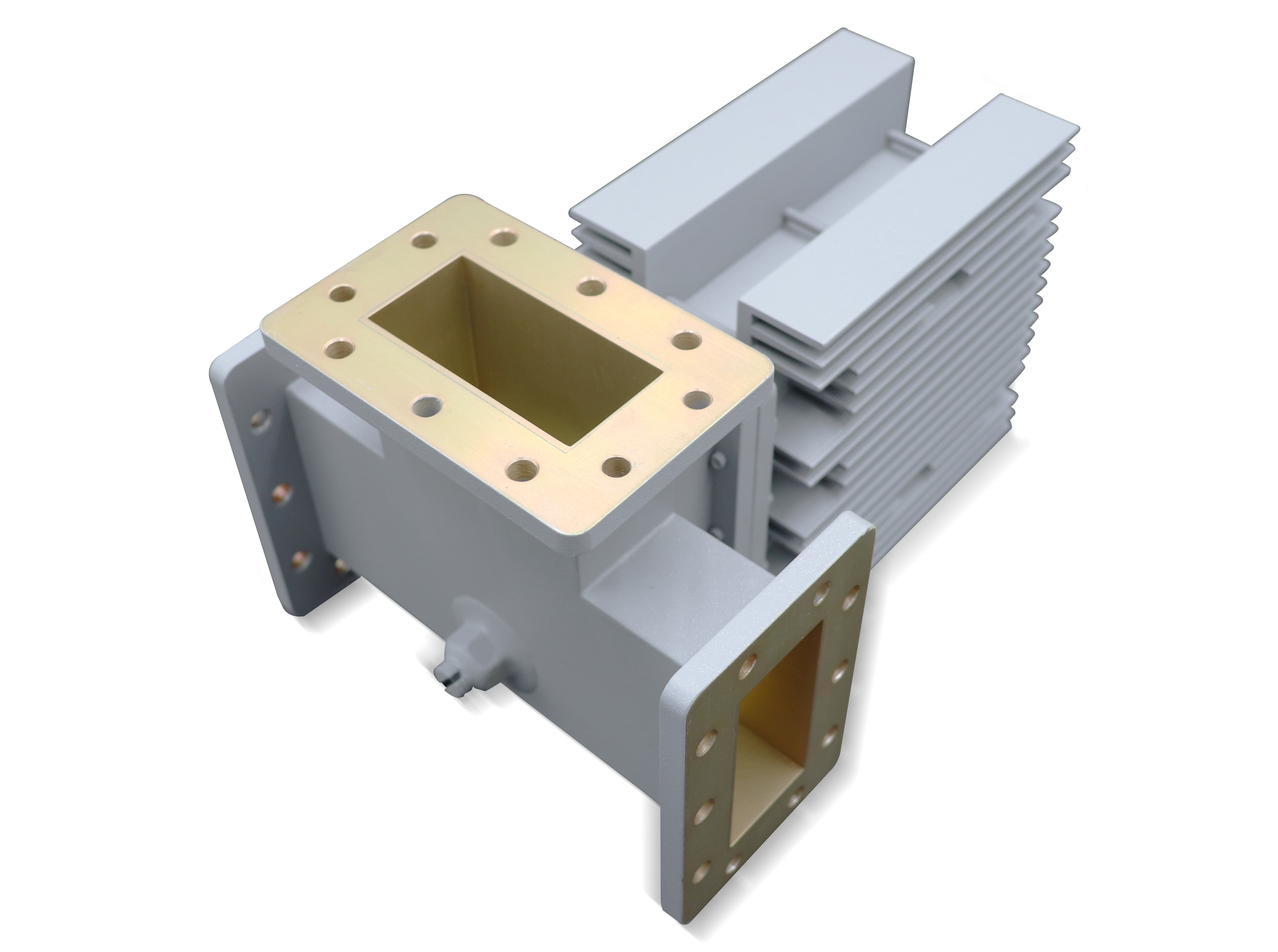

Waveguide Power Combiner
Waveguide Power Combiner efficiently merges multiple microwave signals into a single output with low insertion loss and excellent isolation between inputs. Customizable for various frequency bands and power levels, it provides reliable and high-performance solutions for radar, communication, and signal processing systems, helping customers optimize their microwave networks.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | Bandwidth | VSWR (Max) | IL/dB (Max) | Isolation/dB (Min) | Flange Type |
| AO2300-WMTPCACG | 0.32-0.49 | 20% | 1.20 | 0.20 | 17 | UDR3 |
| AO2100-WMTPCACG | 0.35-0.53 | 20% | 1.20 | 0.20 | 17 | UDR4 |
| AO1800-WMTPCACG | 0.41-0.62 | 20% | 1.20 | 0.20 | 17 | UDR5 |
| AO1500-WMTPCACG | 0.49-0.75 | 20% | 1.20 | 0.20 | 17 | UDR6 |
| AO1150-WMTPCACG | 0.64-0.98 | 20% | 1.20 | 0.20 | 17 | UDR8 |
| AO975-WMTPCACG | 0.75-1.15 | 20% | 1.20 | 0.20 | 17 | UDR9 |
| AO770-WMTPCACG | 0.96-1.46 | 20% | 1.20 | 0.20 | 17 | UDR12 |
| AO650-WMTPCACG | 1.13-1.73 | 20% | 1.20 | 0.20 | 17 | UDR14 |
| AO510-WMTPCACG | 1.45-2.20 | 20% | 1.20 | 0.20 | 17 | UDR18 |
| AO430-WMTPCACG | 1.72-2.61 | 20% | 1.20 | 0.30 | 17 | UDR22 |
| AO340-WMTPCACG | 2.17-3.30 | 20% | 1.20 | 0.30 | 17 | UDR26 |
| AO284-WMTPCACG | 2.60-3.95 | 20% | 1.20 | 0.30 | 17 | UDR32 |
| AO229-WMTPCACG | 3.22-4.90 | 20% | 1.20 | 0.30 | 17 | UDR40 |
| AO187-WMTPCACG | 3.94-5.99 | 20% | 1.20 | 0.30 | 17 | UDR48 |
| AO159-WMTPCACG | 4.64-7.05 | 20% | 1.20 | 0.30 | 17 | UDR58 |
| AO137-WMTPCCSG | 5.38-8.17 | 20% | 1.20 | 0.30 | 17 | UDR70 |
| AO112-WMTPCCSG | 6.57-9.99 | 20% | 1.20 | 0.30 | 17 | UBR84 |
| AO90-WMTPCCSG | 8.20-12.5 | 20% | 1.20 | 0.30 | 17 | UBR100 |
| AO75-WMTPCCSG | 9.84-15.0 | 20% | 1.20 | 0.30 | 17 | UBR120 |
| AO62-WMTPCCSG | 11.9-18.0 | 20% | 1.20 | 0.30 | 17 | UBR140 |
| AO51-WMTPCCSG | 14.5-22.0 | 20% | 1.20 | 0.30 | 17 | UBR180 |
| AO42-WMTPCCSG | 17.6-26.7 | 20% | 1.20 | 0.30 | 15 | UBR220 |
| AO34-WMTPCCSG | 21.7-33.0 | 20% | 1.20 | 0.30 | 15 | UBR260 |
| AO28-WMTPCCSG | 26.5-40.0 | 20% | 1.20 | 0.30 | 15 | UBR320 |
| AO22-WMTPCGC | 33.0-50.0 | 20% | 1.20 | 0.50 | 15 | UG-383/U |
| AO19-WMTPCGC | 40.0-60.0 | 20% | 1.20 | 0.50 | 15 | UG383/UM |
| AO15-WMTPCGC | 50.0-75.0 | 20% | 1.20 | 0.50 | 15 | UG385/U |
| AO12-WMTPCGC | 60.0-90.0 | 20% | 1.20 | 0.80 | 15 | UG-387/U |
| AO10-WMTPCGC | 75.0-110.0 | 20% | 1.20 | 0.80 | 15 | UG387/UM |
