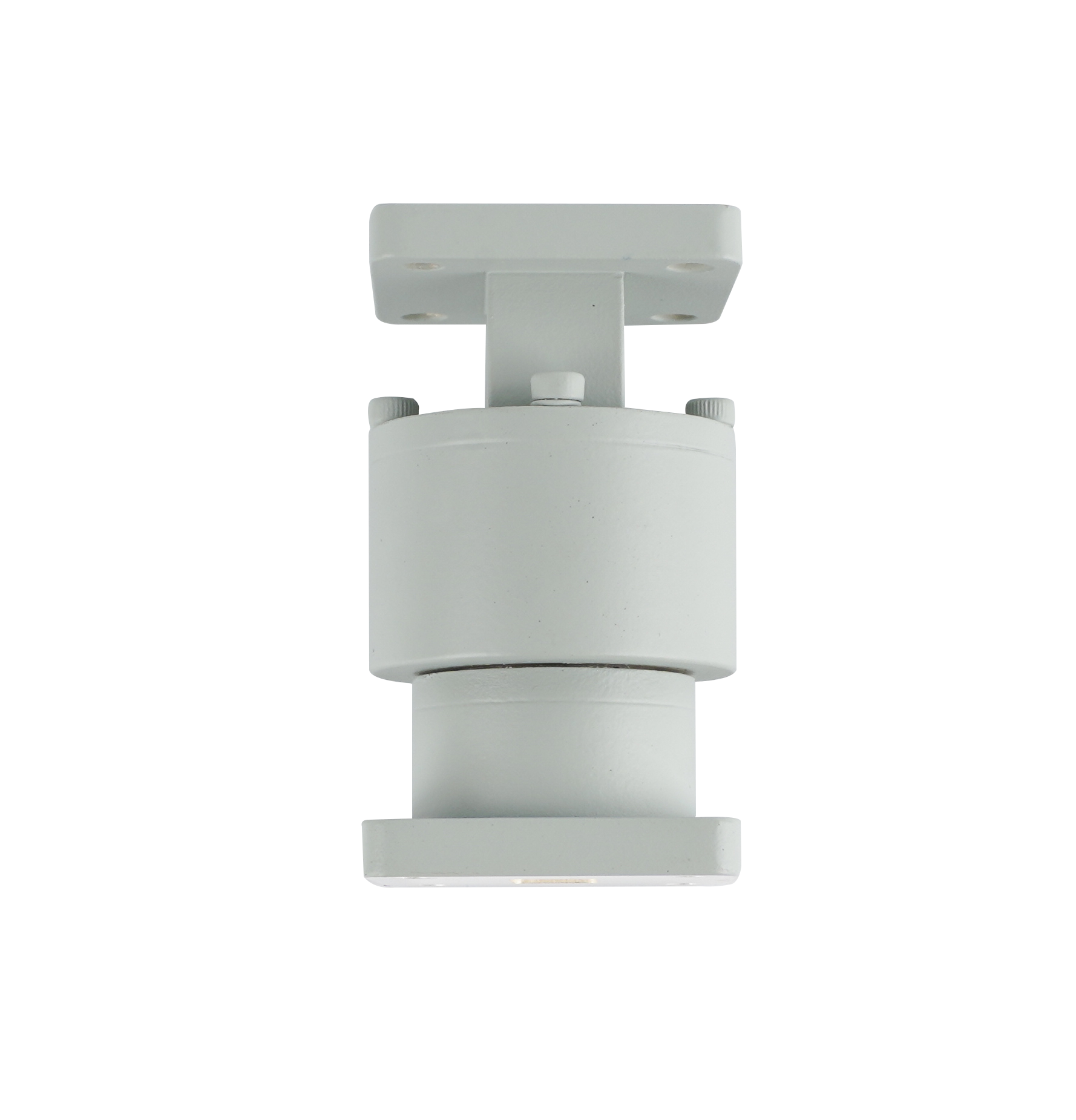

Waveguide Rotary Joint
Waveguide Rotary Joint enables continuous rotation while maintaining low-loss microwave signal transmission between stationary and rotating waveguide sections. With precision engineering and customizable designs for various frequency bands, it provides reliable performance in radar, communication, and aerospace applications, ensuring seamless signal integrity during dynamic movement.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | Bandwidth | VSWR (Max) | IL/dB (Max) | Average Power/W (Max) | Peak Power/KW (Max) | Style | Flange Type |
| AO284-WRJPPACG | 2.60-3.95 | 10% | 1.20 | 0.25 | 600 | 600 | I/L/U | UDR32 |
| AO229-WRJPPACG | 3.22-4.90 | 10% | 1.20 | 0.25 | 600 | 600 | I/L/U | UDR40 |
| AO187-WRJPPACG | 3.94-5.99 | 10% | 1.20 | 0.25 | 600 | 600 | I/L/U | UDR48 |
| AO159-WRJPPACG | 4.64-7.05 | 10% | 1.20 | 0.25 | 500 | 150 | I/L/U | UDR58 |
| AO137-WRJPPCSG | 5.38-8.17 | 10% | 1.20 | 0.25 | 500 | 150 | I/L/U | UDR70 |
| AO112-WRJPPCSG | 6.57-9.99 | 10% | 1.20 | 0.30 | 400 | 150 | I/L/U | UBR84 |
| AO90-WRJPPCSG | 8.20-12.5 | 10% | 1.20 | 0.30 | 400 | 150 | I/L/U | UBR100 |
| AO75-WRJPPCSG | 9.84-15.0 | 10% | 1.20 | 0.30 | 200 | 10 | I/L/U | UBR120 |
| AO62-WRJPPCSG | 11.9-18.0 | 10% | 1.20 | 0.30 | 100 | 4 | I/L/U | UBR140 |
| AO51-WRJPPCSG | 14.5-22.0 | 10% | 1.20 | 0.30 | 100 | 3 | I/L/U | UBR180 |
| AO42-WRJPPCSG | 17.6-26.7 | 10% | 1.25 | 0.50 | 50 | 0.50 | I/L/U | UBR220 |
| AO34-WRJPPCSG | 21.7-33.0 | 10% | 1.25 | 0.50 | 30 | 0.30 | I/L/U | UBR260 |
| AO28-WRJPPCSG | 26.5-40.0 | 10% | 1.25 | 0.50 | 30 | 0.30 | I/L/U | UBR320 |
