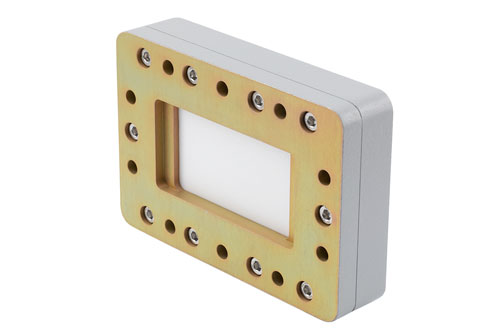

Waveguide Pressure Window
Waveguide Pressure Window is designed to maintain airtight and pressure-tight seals in waveguide systems while allowing efficient microwave signal transmission. Manufactured with high-quality materials and customizable to various frequency ranges and flange types, it ensures reliable operation in harsh environments, protecting sensitive components and enhancing system durability.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | VSWR (Max) | IL/dB (Max) | Average Power/W (Max) | Pressure/MPa | Thickness/mm | Flange Type 1 | Flange Type 2 |
| AO650-WPW30PMACG | 1.13-1.73 | 1.25 | 0.20 | 5000 | 0.1 | X=30 | UDR14 | UDR14 |
| AO510-WPW30PMACG | 1.45-2.20 | 1.25 | 0.20 | 3000 | 0.1 | X=30 | UDR18 | UDR18 |
| AO430-WPW20PMACG | 1.72-2.61 | 1.25 | 0.20 | 3000 | 0.1 | X=20 | UDR22 | UDR22 |
| AO340-WPW25PMACG | 2.17-3.30 | 1.25 | 0.20 | 2000 | 0.1 | X=25 | UDR26 | UDR26 |
| AO284-WPW30PMACG | 2.60-3.95 | 1.25 | 0.20 | 2000 | 0.1 | X=30 | UDR32 | UDR32 |
| AO229-WPW20PMACG | 3.22-4.90 | 1.25 | 0.20 | 1500 | 0.1 | X=20 | UDR40 | UDR40 |
| AO187-WPW8PMACG | 3.94-5.99 | 1.25 | 0.20 | 1000 | 0.1 | X=8 | UDR48 | UDR48 |
| AO159-WPW10PMACG | 4.64-7.05 | 1.25 | 0.20 | 800 | 0.1 | X=10 | UDR58 | UDR58 |
| AO137-WPW20PMCSG | 5.38-8.17 | 1.25 | 0.30 | 600 | 0.1 | X=20 | UDR70 | UDR70 |
| AO112-WPW10PMCSG | 6.57-9.99 | 1.25 | 0.30 | 500 | 0.1 | X=10 | UBR84 | UBR84 |
| AO90-WPW20PMCSG | 8.20-12.5 | 1.25 | 0.30 | 500 | 0.1 | X=20 | UBR100 | UBR100 |
| AO75-WPW20PMCSG | 9.84-15.0 | 1.25 | 0.30 | 300 | 0.1 | X=20 | UBR120 | UBR120 |
| AO62-WPW12PMCSG | 11.9-18.0 | 1.25 | 0.30 | 300 | 0.1 | X=12 | UBR140 | UBR140 |
| AO51-WPW12PMCSG | 14.5-22.0 | 1.25 | 0.30 | 200 | 0.1 | X=12 | UBR180 | UBR180 |
| AO42-WPW10PMCSG | 17.6-26.7 | 1.25 | 0.30 | 100 | 0.1 | X=10 | UBR220 | UBR220 |
| AO34-WPW10PMCSG | 21.7-33.0 | 1.25 | 0.30 | 80 | 0.1 | X=10 | UBR260 | UBR260 |
| AO28-WPW10PMCSG | 26.5-40.0 | 1.25 | 0.30 | 50 | 0.1 | X=10 | UBR320 | UBR320 |
