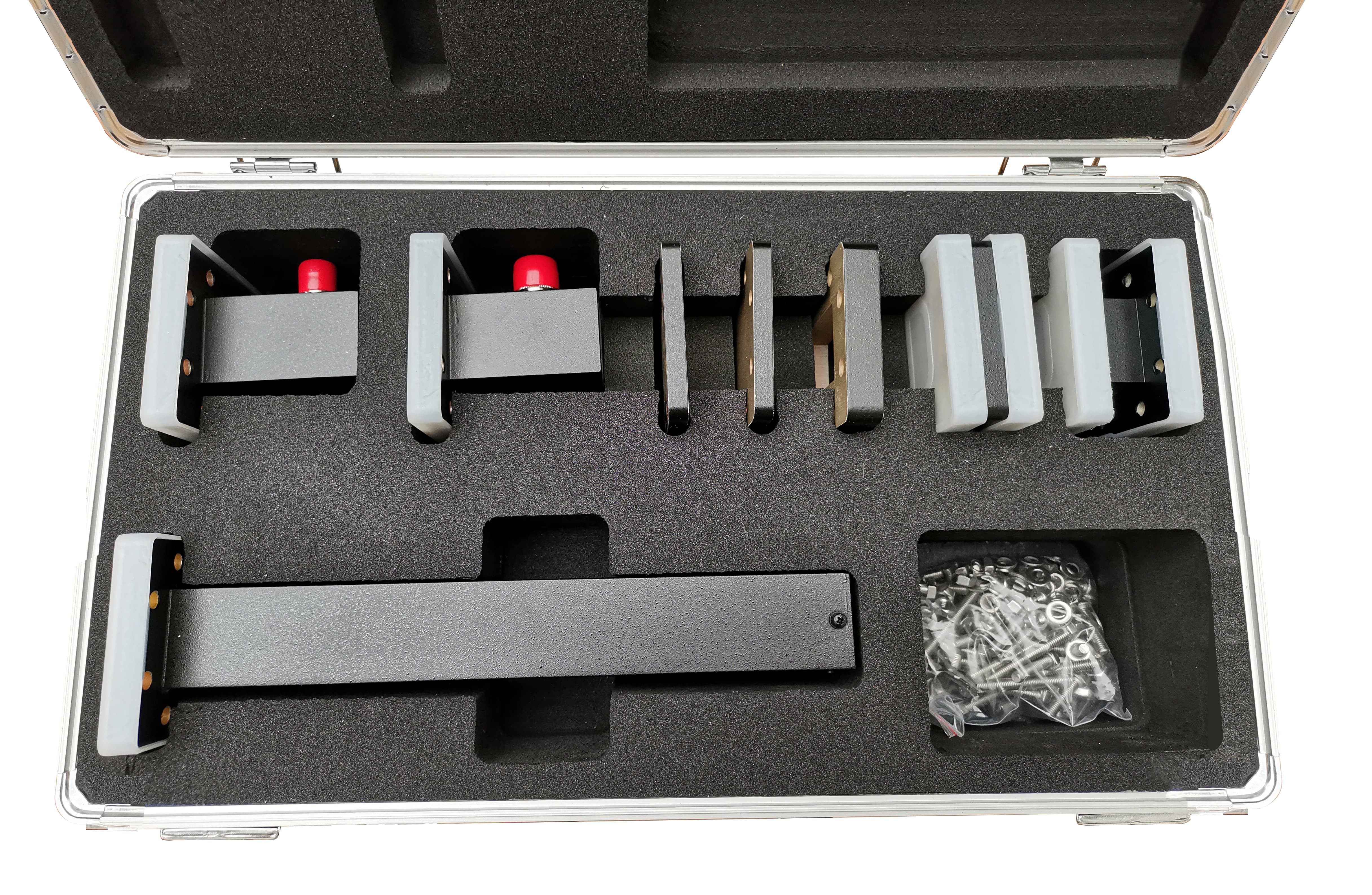

Waveguide Calibration Kits
Description
Package Information
Inquiry
Part No | Frequency/GHz | WG Type | Connector | Flange | Material |
| AO770-VNAWKN | 0.96-1.46 | WR770 | N | UDR | Aluminum |
| AO650-VNAWKN | 1.13-1.73 | WR650 | N | UDR | Aluminum |
| AO510-VNAWKN | 1.45-2.20 | WR510 | N | UDR | Aluminum |
| AO430-VNAWKN | 1.72-2.61 | WR430 | N | UDR | Aluminum |
| AO340-VNAWKN | 2.17-3.30 | WR340 | N | UDR | Aluminum |
| AO284-VNAWKN | 2.60-3.95 | WR284 | N | UDR | Copper |
| AO229-VNAWKN | 3.22-4.90 | WR229 | N | UDR | Copper |
| AO187-VNAWKN | 3.94-5.99 | WR187 | N | UDR | Copper |
| AO159-VNAWKN | 4.64-7.05 | WR159 | N | UDR | Copper |
| AO137-VNAWKN | 5.38-8.17 | WR137 | N | UDR | Copper |
| AO112-VNAWKN | 6.57-9.99 | WR112 | N | UBR | Copper |
| AO90-VNAWKN | 8.20-12.5 | WR90 | N | UBR | Copper |
| AO75-VNAWKN | 9.84-15.0 | WR75 | N | UBR | Copper |
| AO62-VNAWKS | 11.9-18.0 | WR62 | SMA | UBR | Copper |
| AO51-VNAWKS | 14.5-22.0 | WR51 | SMA | UBR | Copper |
AO42-VNAWK2.92/2.4 | 17.6-26.7 | WR42 | 2.92/2.4 | UBR | Copper |
AO34-VNAWK2.92/2.4 | 21.7-33.0 | WR34 | 2.92/2.4 | UBR | Copper |
AO28-VNAWK2.92/2.4 | 26.5-40.0 | WR28 | 2.92/2.4 | UBR | Copper |
AO22-VNAWK2.4/1.85 | 33.0-50.0 | WR22 | 2.4/1.85 | FUGP | Copper |
AO19-VNAWK1.85 | 40.0-60.0 | WR19 | 1.85 | FUGP | Copper |
AO15-VNAWK1.85 | 50.0-75.0 | WR15 | 1.85 | FUGP | Copper |
| AO12-VNAWK1.0 | 60.0-90.0 | WR12 | 1.0 | FUGP | Copper |
| AO10-VNAWK1.0 | 75.0-110.0 | WR10 | 1.0 | FUGP | Copper |
Note: 1.0mm connector is only Female type available.
