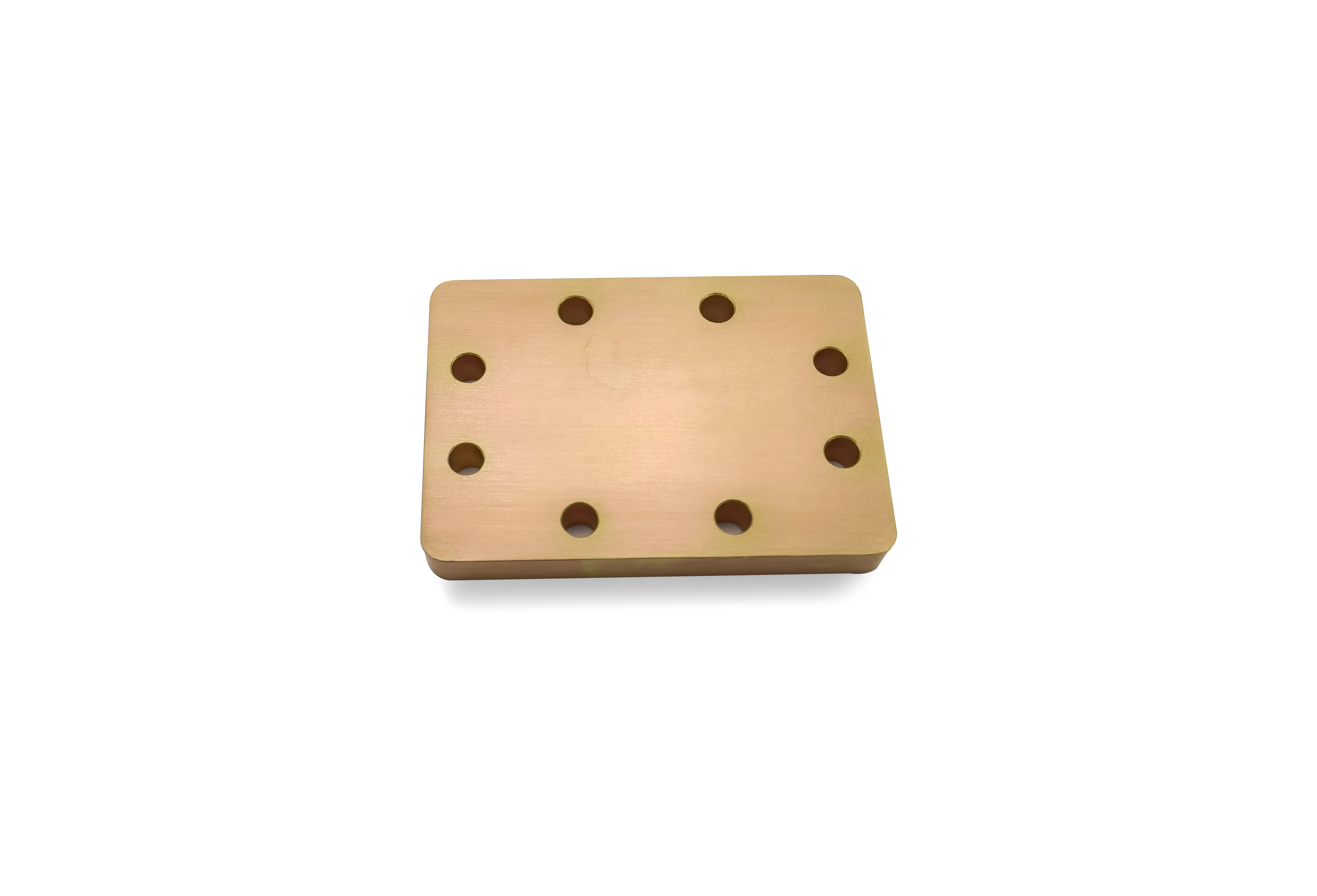

Waveguide Short Plate
Waveguide Short Plate acts as a termination or reflective element within waveguide systems, providing a reliable short circuit with minimal signal loss. Manufactured with precision and customizable dimensions, it is essential for testing, tuning, and controlling microwave signal paths in communication and radar applications.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | VSWR (Min) | Standard Thickness/mm | Flange Type |
| AO2300-WSACG | 0.32-0.49 | ≥60 | X=23 | UDR3 |
| AO2100-WSACG | 0.35-0.53 | ≥60 | X=23 | UDR4 |
| AO1800-WSACG | 0.41-0.62 | ≥60 | X=18 | UDR5 |
| AO1500-WSACG | 0.49-0.75 | ≥60 | X=18 | UDR6 |
| AO1150-WSACG | 0.64-0.98 | ≥60 | X=14 | UDR8 |
| AO975-WSACG | 0.75-1.15 | ≥60 | X=14 | UDR9 |
| AO770-WSACG | 0.96-1.46 | ≥60 | X=12 | UDR12 |
| AO650-WSACG | 1.13-1.73 | ≥60 | X=12 | UDR14 |
| AO510-WSACG | 1.45-2.20 | ≥60 | X=12 | UDR18 |
| AO430-WSACG | 1.72-2.61 | ≥60 | X=10 | UDR22 |
| AO340-WSACG | 2.17-3.30 | ≥60 | X=10 | UDR26 |
| AO284-WSACG | 2.60-3.95 | ≥60 | X=8 | UDR32 |
| AO229-WSACG | 3.22-4.90 | ≥60 | X=8 | UDR40 |
| AO187-WSACG | 3.94-5.99 | ≥60 | X=7 | UDR48 |
| AO159-WSACG | 4.64-7.05 | ≥60 | X=7 | UDR58 |
| AO137-WSCSG | 5.38-8.17 | ≥60 | X=7 | UDR70 |
| AO112-WSCSG | 6.57-9.99 | ≥60 | X=5 | UBR84 |
| AO90-WSCSG | 8.20-12.5 | ≥60 | X=5 | UBR100 |
| AO75-WSCSG | 9.84-15.0 | ≥60 | X=5 | UBR120 |
| AO62-WSCSG | 11.9-18.0 | ≥60 | X=5 | UBR140 |
| AO51-WSCSG | 14.5-22.0 | ≥60 | X=5 | UBR180 |
| AO42-WSCSG | 17.6-26.7 | ≥60 | X=4 | UBR220 |
| AO34-WSCSG | 21.7-33.0 | ≥60 | X=4 | UBR260 |
| AO28-WSCSG | 26.5-40.0 | ≥60 | X=4 | UBR320 |
| AO22-WSCG | 33.0-50.0 | ≥60 | X=4 | UG-383/U |
| AO19-WSCG | 40.0-60.0 | ≥60 | X=4 | UG383/UM |
| AO15-WSCG | 50.0-75.0 | ≥60 | X=4 | UG385/U |
| AO12-WSCG | 60.0-90.0 | ≥60 | X=4 | UG-387/U |
| AO10-WSCG | 75.0-110.0 | ≥60 | X=4 | UG387/UM |
