Waveguide Transition

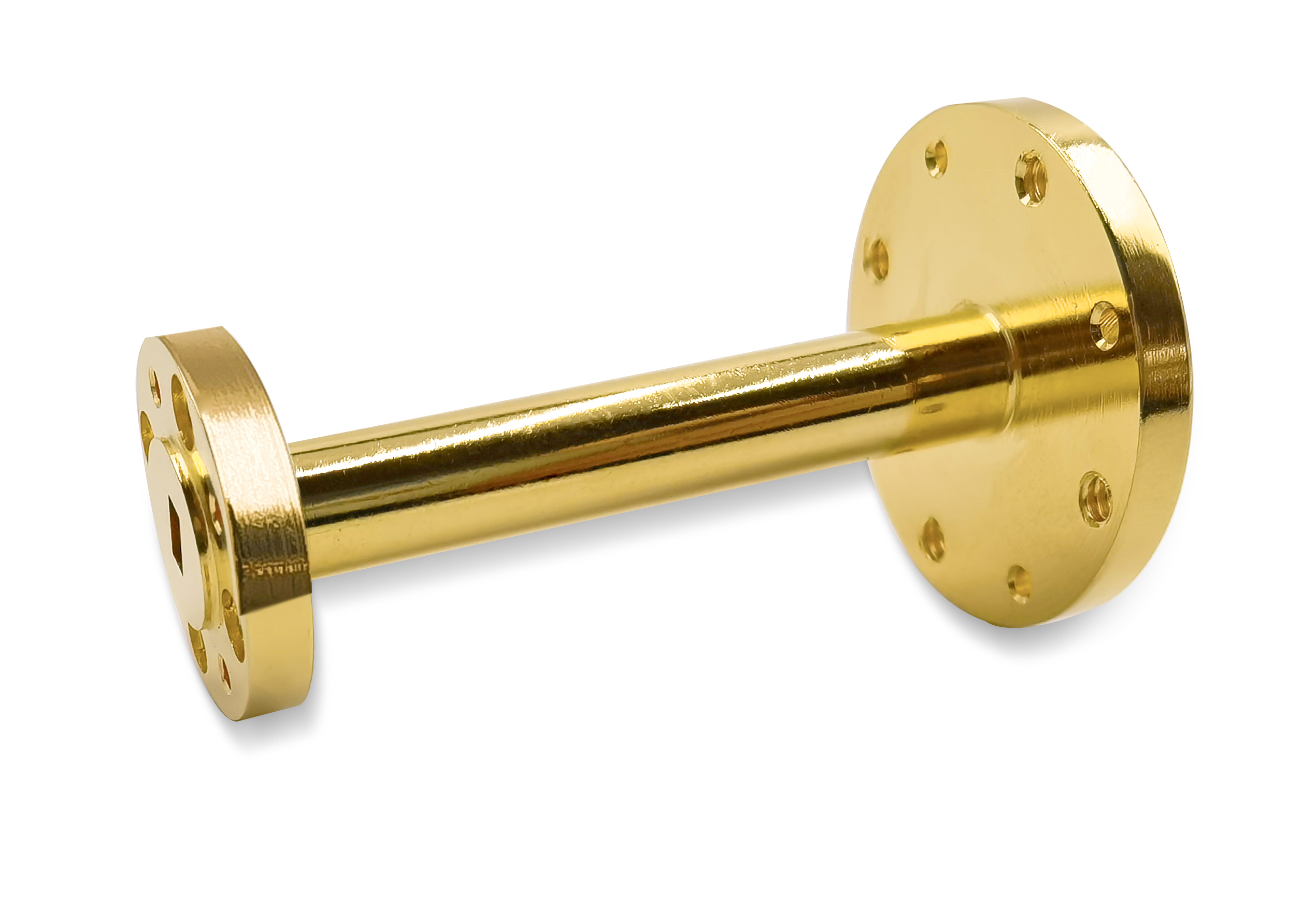

Waveguide Transition provides efficient and low-loss conversion between different types or sizes of waveguides and coaxial interfaces. Engineered for high precision and customizable configurations, it ensures seamless signal transfer across various frequency bands, helping customers optimize their microwave and RF system performance.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | VSWR (Max) | IL/dB (Max) | Waveguide Type 1 | Flange Type 1 | Waveguide Type 2 | Flange Type 2 | Standard Length/mm |
| AO975770-WAXPPACG | 0.96-1.15 | 1.15 | 0.20 | WR975 | UDR9 | WR770 | UDR12 | X=200 |
| AO770650-WAXPPACG | 1.13-1.46 | 1.15 | 0.20 | WR770 | UDR12 | WR650 | UDR14 | X=200 |
| AO650510-WAXPPACG | 1.45-1.73 | 1.15 | 0.20 | WR650 | UDR14 | WR510 | UDR18 | X=200 |
| AO510430-WAXPPACG | 1.72-2.20 | 1.15 | 0.20 | WR510 | UDR18 | WR430 | UDR22 | X=200 |
| AO430340-WAXPPACG | 2.17-2.61 | 1.15 | 0.20 | WR430 | UDR22 | WR340 | UDR26 | X=200 |
| AO340284-WAXPPACG | 2.60-3.30 | 1.15 | 0.20 | WR340 | UDR26 | WR284 | UDR32 | X=200 |
| AO284229-WAXPPACG | 3.22-3.95 | 1.10 | 0.20 | WR284 | UDR32 | WR229 | UDR40 | X=200 |
| AO229187-WAXPPACG | 3.94-4.90 | 1.10 | 0.20 | WR229 | UDR40 | WR187 | UDR48 | X=200 |
| AO187159-WAXPPACG | 4.64-5.99 | 1.10 | 0.20 | WR187 | UDR48 | WR159 | UDR58 | X=200 |
| AO159137-WAXPPACG | 5.38-7.05 | 1.10 | 0.20 | WR159 | UDR58 | WR137 | UDR70 | X=150 |
| AO137112-WAXPPCSG | 6.57-8.17 | 1.10 | 0.20 | WR137 | UDR70 | WR112 | UBR84 | X=100 |
| AO11290-WAXPPCSG | 8.20-9.99 | 1.10 | 0.20 | WR112 | UBR84 | WR90 | UBR100 | X=60 |
| AO9075-WAXPPCSG | 9.84-12.4 | 1.10 | 0.20 | WR90 | UBR100 | WR75 | UBR120 | X=60 |
| AO7562-WAXPPCSG | 11.9-15.0 | 1.10 | 0.20 | WR75 | UBR120 | WR62 | UBR140 | X=50 |
| AO6251-WAXPPCSG | 14.5-18.0 | 1.10 | 0.20 | WR62 | UBR140 | WR51 | UBR180 | X=50 |
| AO5142-WAXPPCSG | 17.6-22.0 | 1.10 | 0.30 | WR51 | UBR180 | WR42 | UBR220 | X=50 |
| AO4234-WAXPPCSG | 21.7-26.7 | 1.10 | 0.30 | WR42 | UBR220 | WR34 | UBR260 | X=50 |
| AO3428-WAXPPCSG | 26.5-33.0 | 1.10 | 0.30 | WR34 | UBR260 | WR28 | UBR320 | X=50 |
| AO2822-WAXPPCSG | 32.9-40.0 | 1.15 | 0.30 | WR28 | UBR320 | WR22 | UG-383/U | X=50 |
| AO2219-WAXPPCG | 39.2-50.1 | 1.15 | 0.50 | WR22 | UG-383/U | WR19 | UG383/UM | X=50 |
| AO1915-WAXPPCG | 49.8-59.6 | 1.15 | 0.50 | WR19 | UG383/UM | WR15 | UG385/U | X=50 |
| AO1512-WAXPPCG | 60.5-75.8 | 1.15 | 0.50 | WR15 | UG385/U | WR12 | UG-387/U | X=50 |
| AO1210-WAXPPCG | 73.8-91.9 | 1.15 | 0.50 | WR12 | UG-387/U | WR10 | UG387/UM | X=50 |
