Waveguide Switch

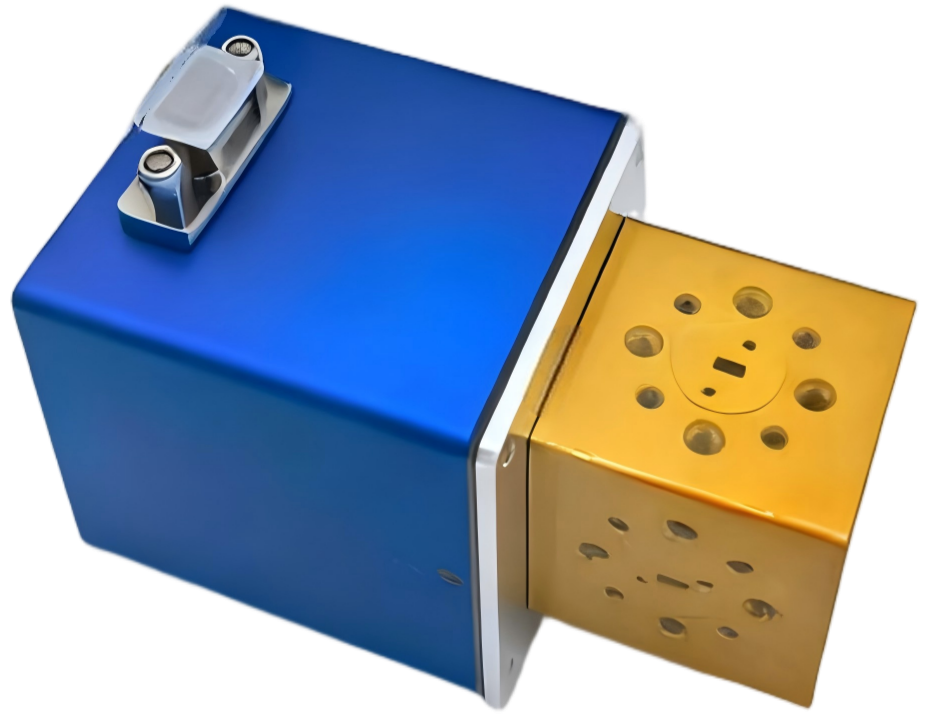

Waveguide Switch provides fast and reliable switching between multiple waveguide signal paths with low insertion loss and high isolation. Engineered for durability and precise performance across various frequency bands, it is customizable to meet system requirements in radar, communication, and test setups, helping customers achieve flexible and efficient signal routing.
Description
Package Information
Inquiry
| Part No | Frequency/GHz | VSWR (Max) | IL/dB (Max) | Isolation/dB (Min) | Switching Time/ms (Max) | Flange Type |
| AO137-WS-DPDT24V-PAAE | 5.85-8.20 | 1.10 | 0.10 | 60 | 50 | UDR70 |
| AO112-WS-DPDT24V-PAAE | 7.05-10.0 | 1.10 | 0.10 | 60 | 50 | UBR84 |
| AO90-WS-DPDT24V-PAAE | 8.20-12.4 | 1.10 | 0.10 | 60 | 50 | UBR100 |
| AO75-WS-DPDT24V-PAAE | 10.0-15.0 | 1.10 | 0.10 | 60 | 50 | UBR120 |
| AO62-WS-DPDT24V-PAAE | 12.4-18.0 | 1.10 | 0.10 | 60 | 50 | UBR140 |
| AO51-WS-DPDT24V-PAAE | 15.0-22.0 | 1.10 | 0.10 | 60 | 50 | UBR180 |
| AO42-WS-DPDT24V-PAAE | 18.0-26.5 | 1.10 | 0.10 | 60 | 50 | UBR220 |
| AO34-WS-DPDT24V-PAAE | 22.0-33.0 | 1.15 | 0.15 | 60 | 50 | UBR260 |
| AO28-WS-DPDT24V-PAAE | 26.5-40.0 | 1.15 | 0.15 | 55 | 50 | UBR320 |
| AO22-WS-DPDT24V-PAAE | 33.0-50.0 | 1.20 | 0.30 | 50 | 50 | UG-383/U |
| AO19-WS-DPDT24V-PAAE | 40.0-60.0 | 1.20 | 0.30 | 50 | 50 | UG383/UM |
| AO15-WS-DPDT24V-PAAE | 50.0-75.0 | 1.20 | 0.40 | 50 | 50 | UG385/U |
| AO12-WS-DPDT24V-PAAE | 60.0-90.0 | 1.25 | 0.50 | 50 | 50 | UG-387/U |
| AO10-WS-DPDT24V-PAAE | 75.0-110.0 | 1.25 | 0.60 | 50 | 50 | UG387/UM |
