Are Space Constraints Compromising Your Signal? E-Bend vs H-Bend Waveguide: What’s the Difference and When Should You Use Them?
Every RF system integrator has experienced this exact moment of frustration: You are staring at a CAD model for a new 5G mmWave transceiver, a UAV radar payload, or a satellite earth station. The High-Power Amplifier (HPA) output and the antenna feed are misaligned by 90 degrees, and you only have a few inches of mechanical clearance to make the connection.
Unlike flexible coaxial cables, rigid rectangular waveguides cannot simply be bent into place. If you attempt to force a connection or use a poorly manufactured elbow joint, the internal cross-section of the waveguide will deform. In the unforgiving world of microwave physics, even a microscopic deformation alters the characteristic impedance of the transmission line. The result? Severe phase distortion, massive Voltage Standing Wave Ratio (VSWR) spikes, and lethal reflected power that can permanently destroy your amplifier.
To navigate these tight enclosures without sacrificing signal integrity, engineers must rely on precision-machined routing components. But a critical question frequently arises on engineering forums and procurement desks alike: "E-Bend vs H-Bend Waveguide: What’s the difference, and which one should I use?"
In this comprehensive guide, we will decode the electromagnetic physics behind E-plane and H-plane routing. We will explore the engineering trade-offs between swept and mitered configurations, and demonstrate how partnering with an agile manufacturer can solve your most complex spatial challenges while keeping your project timelines strictly on track.
The Physics of Routing: Understanding the TE10 Mode
To understand the difference between an E-Bend and an H-Bend, we must first visualize how electromagnetic energy travels inside a standard rectangular waveguide. In the dominant operating mode (TE10), the electromagnetic field consists of two perpendicular components:
- The Electric Field (E-Field): The lines of the electric field run parallel to the narrow wall (the 'b' dimension) of the waveguide.
- The Magnetic Field (H-Field): The lines of the magnetic field run parallel to the broad wall (the 'a' dimension) of the waveguide.
When you need to change the direction of the signal path, you must bend the waveguide along one of these two planes. The plane you choose dictates the type of bend you need.
Deep Dive: The Waveguide E-Bend
An E-Bend (Electric Plane Bend) changes the direction of the waveguide in the plane of the Electric field. Because the E-field runs parallel to the narrow wall, an E-bend curves along the broad wall. If you look at an E-bend, the narrow walls are the ones being bent, while the broad walls remain flat but change direction.
As the electromagnetic wave travels around an E-bend, the electric field lines are distorted. To prevent this distortion from causing signal reflection, the radius of the bend must be carefully calculated (typically greater than two wavelengths, or 2λ) to ensure a smooth, reflectionless transition.
When Should You Use an E-Bend?
E-bends are primarily used when your system architecture requires a vertical change in elevation. For example, if your waveguide run is lying flat on an equipment rack and you need to route the signal "up" to an antenna feed or "down" to a lower deck, engineers rely on precision waveguide E-bends to navigate vertical elevation changes while maintaining absolute phase stability and ultra-low VSWR.
Deep Dive: The Waveguide H-Bend
An H-Bend (Magnetic Plane Bend) changes the direction of the waveguide in the plane of the Magnetic field. Because the H-field runs parallel to the broad wall, an H-bend curves along the narrow wall. If you look at an H-bend, the broad walls are the ones being bent.
H-Bends are notoriously difficult to manufacture correctly. Why? Because the broad wall (the 'a' dimension) dictates the cutoff frequency of the waveguide. When you bend the waveguide along the H-plane, any CNC machining error, wrinkling, or inner-wall collapse will instantly alter the 'a' dimension. A poorly manufactured H-bend can inadvertently choke off the lower frequencies of your operating band, causing massive insertion loss.
When Should You Use an H-Bend?
H-bends are utilized when your system requires a horizontal change in direction. If your waveguide run is lying flat and you need to turn left or right to bypass another component in the chassis, integrating high-performance waveguide H-bends is the optimal solution for horizontal routing, ensuring the magnetic field transitions smoothly without choking the bandwidth.
Engineering Trade-offs: Swept Bends vs. Mitered Bends
Beyond choosing the correct plane (E or H), system integrators must also select the mechanical style of the bend. This is a classic engineering trade-off between signal performance and mechanical space.
| Bend Configuration | Design Characteristics | Primary Application & Benefits |
|---|---|---|
| Swept Bend (Radius Bend) | A smooth, continuous, gradual curve (typically 90°, 45°, or custom angles). | Maximum Signal Integrity. Offers the lowest insertion loss and highest power handling. Ideal for Satcom earth stations, medical LINACs, and high-power radar where space allows for a gradual radius. |
| Mitered Bend (Right-Angle Bend) | A sharp, hard 90-degree corner. The outer corner is "mitered" (cut at a precise angle) to reflect the wave around the corner. | Ultra-Compact Routing. Used when mechanical space is severely restricted, such as inside UAV payloads, compact 5G transceivers, or dense EMC test racks. Slightly lower power handling than swept bends. |
Overcoming Supply Chain Fragility with Agile Manufacturing
Designing a flawless RF routing architecture is a significant engineering achievement. However, the true challenge for system integrators today is securing these custom routing components on time to meet strict project deadlines.
For decades, the RF industry has relied on a handful of legacy Western manufacturers. While their quality is established, their rigid, bureaucratic supply chains often result in agonizing 16 to 24-week lead times. When you are deploying a new 5G infrastructure or upgrading a critical defense radar, waiting half a year for a specific 90-degree H-bend is unacceptable. It stalls projects, frustrates stakeholders, and delays your time-to-market.
You need a partner who matches your engineering rigor with manufacturing agility.

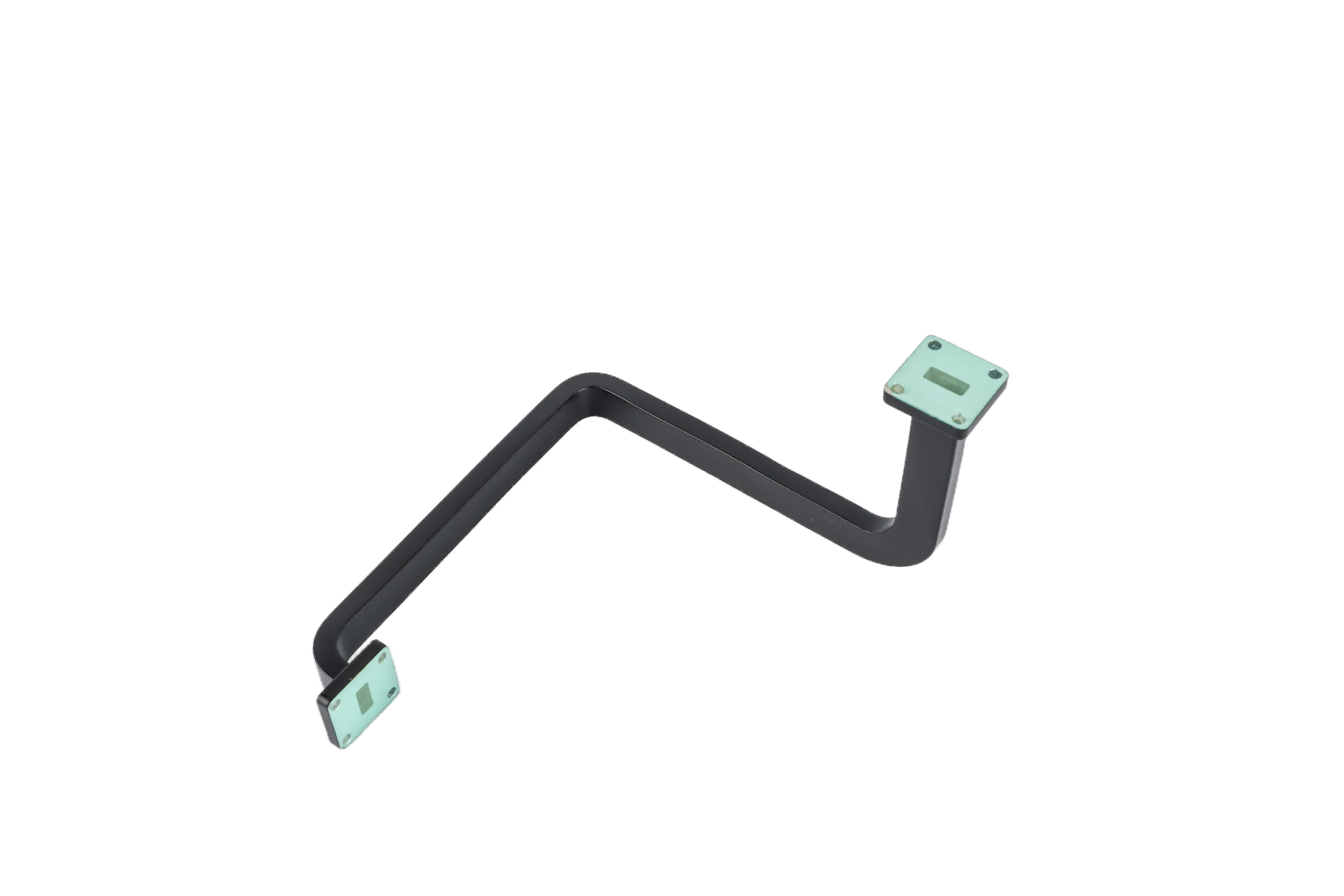

We believe that your system architecture should dictate the components, not the other way around. As a true source manufacturer, AO Microwave offers deep customization capabilities for both E-Bends and H-Bends. Whether you need a specific swept radius to minimize phase distortion, an ultra-compact mitered bend for a dense enclosure, or support for frequencies up to 110 GHz, our engineering team can design and manufacture the exact component you need. Combined with our agile manufacturing process, we deliver these tailored, industrial-grade solutions rapidly, ensuring your project stays on schedule without compromising on signal integrity.
Conclusion: Navigate Complexity with Confidence
In the high-stakes world of microwave engineering, a waveguide bend is far more than a simple corner; it is a highly engineered component critical to maintaining the impedance and phase stability of your entire RF architecture. By understanding the physics of E-plane and H-plane routing, and by selecting the appropriate swept or mitered configurations, engineers can overcome severe space constraints without sacrificing signal integrity.
By partnering with an agile manufacturer dedicated to industrial-grade excellence, you can build a resilient, high-performance RF system that is delivered on time, every time.
Ready to Solve Your Complex RF Routing Challenges?
Don't let mechanical space constraints compromise your signal integrity, and don't let rigid supply chains delay your project launches. Whether you need precision Swept E-Bends for a high-power Satcom uplink or ultra-compact Mitered H-Bends for a UAV payload, AO Microwave delivers the reliability and responsiveness you need.
Contact our engineering team today for a technical consultation, and let us help you build a resilient, high-performance RF routing architecture.
